20V Common-Drain Dual N-Channel AlphaMOS, GS95A2CS-R Replace AOC3864.
GS95A2CS-R
GS95A2CS-R.pdf
GS95A2CS-R.pdfFEATURES
• Input Voltage up to 24V
• MOSFET Turn on Resistor RSS(ON)
=12mohm(Max)@Vgs=4.5V
• Drain to Drain MOSFET Module
• With ESD Protection
• Continuous Current=9.4A
• Green Product (RoHS, Lead-Free, Halogen-Free Compliant)
PIN CONFIGUTION
优势替代
FEATURES
• Trench Power AlphaMOS (αMOS LV) technology
• Low RSS(ON)
• Fully protected AlphaDFN package
• With ESD protection to improve battery performance and safety
• Common drain configuration for design simplicity
• RoHS and Halogen-Free Compliant

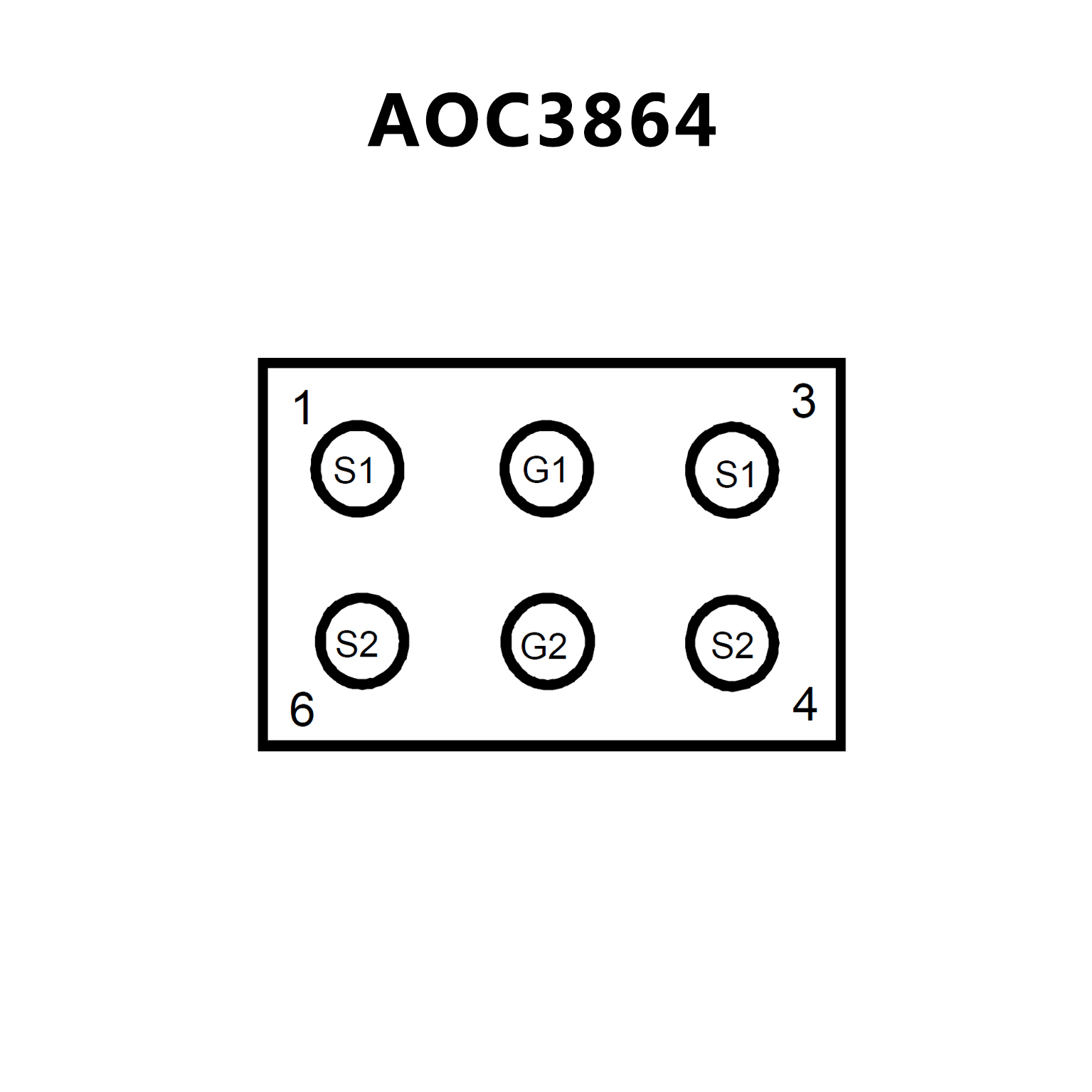

PIN CONFIGUTION
