Power Module for Battery Pack, GS95A7CS-R Replace EFC4612.
GS95A7CS-R
GS95A7CS-R.pdf
GS95A7CS-R.pdfFEATURES
• Input Voltage up to 24V
• MOSFET Turn on Resistor RSS(ON)
=43mohm(Max)@Vgs=4.5V
• Drain to Drain MOSFET Module
• With ESD Protection
• Continuous Current=4.6A
• Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

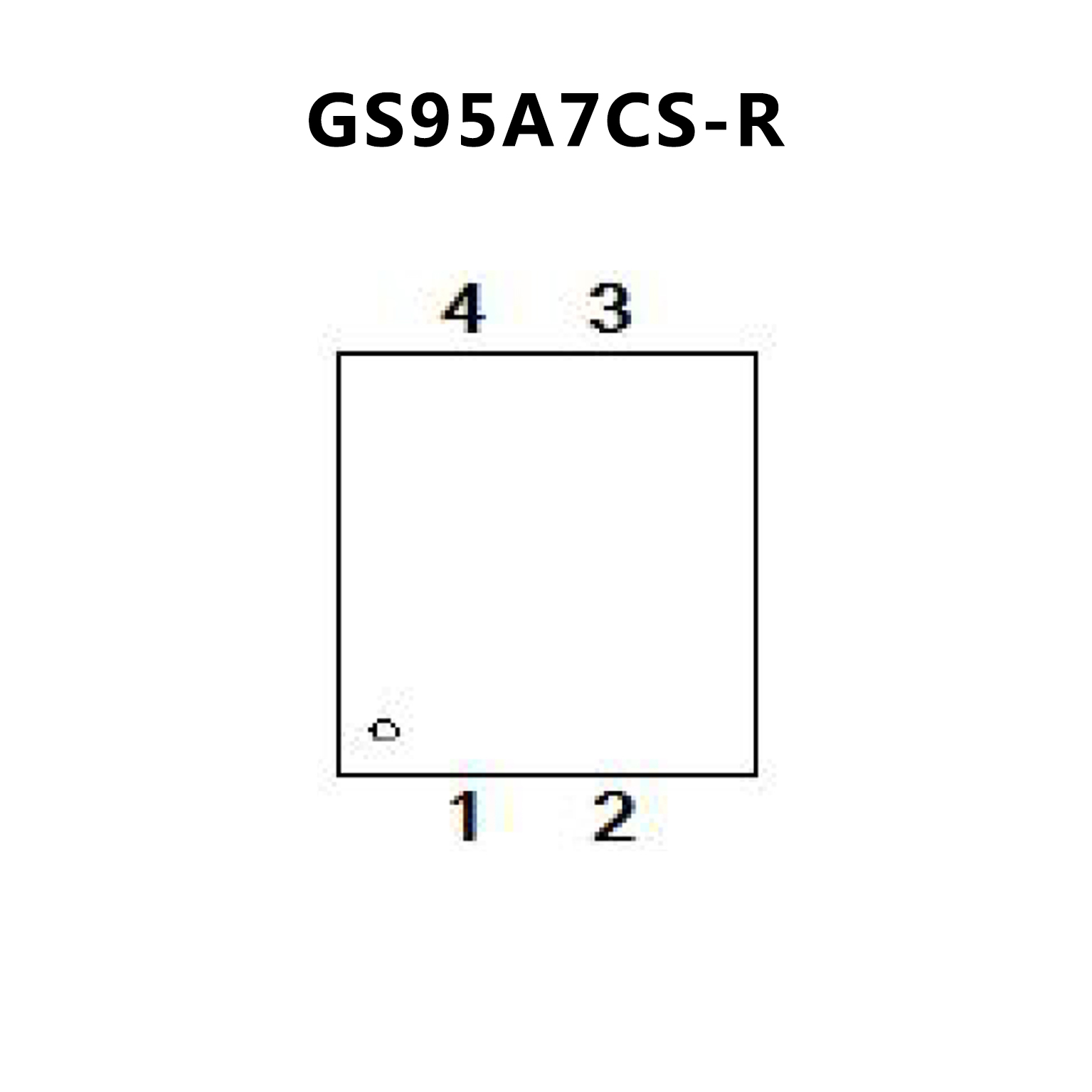

PIN CONFIGUTION
优势替代
FEATURES
• 2.5V drive
• Built-in gate protection resistor
• Best suited for LiB charging and discharging switch
• Common-drain type
• Halogen free compliance

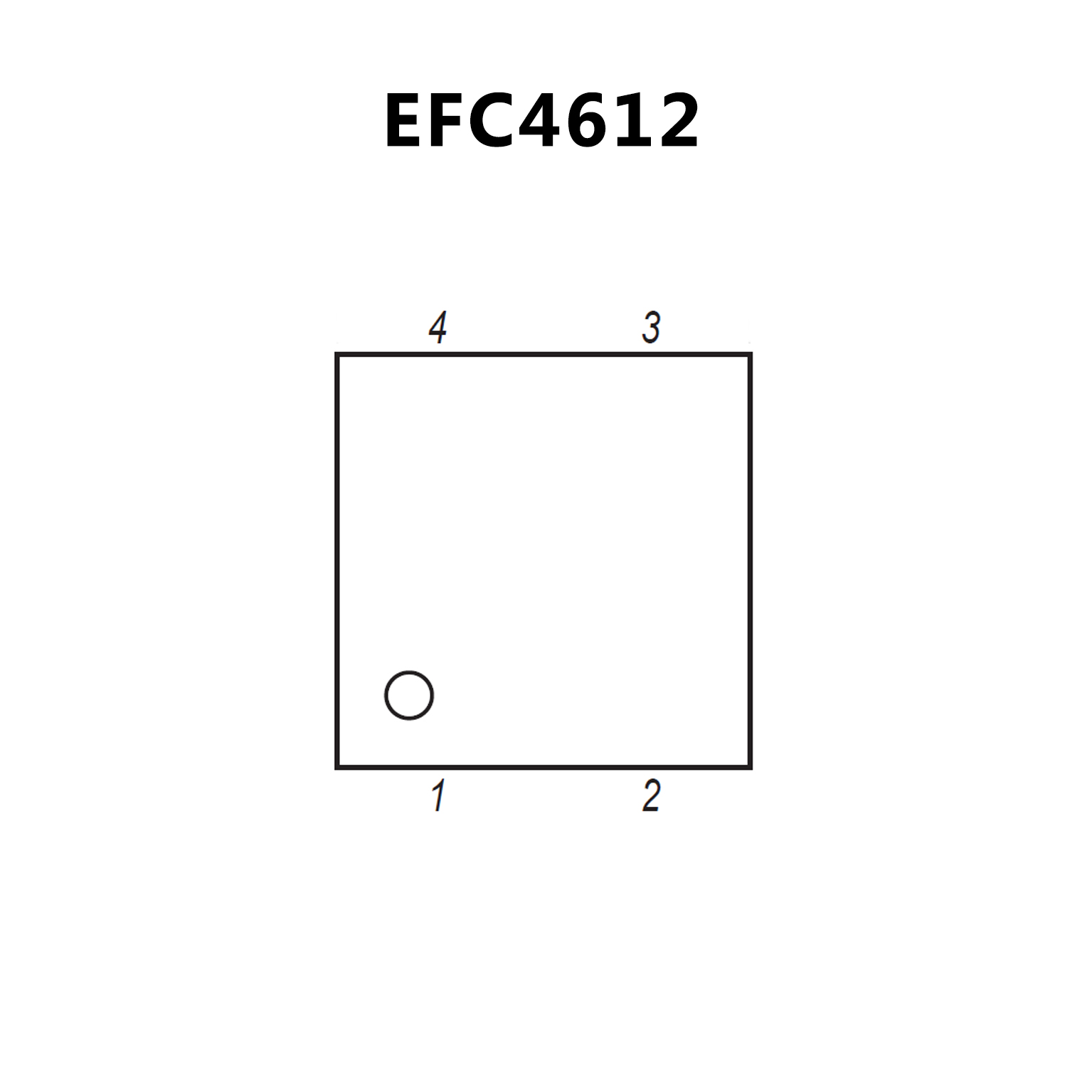

PIN CONFIGUTION
