Gate resistor installed Dual N-channel MOS FET, GS95A8CS-R Replace FC4B22690L.
GS95A8CS-R
GS95A8CS-R.pdf
GS95A8CS-R.pdfFEATURES
• Input Voltage up to 20V
• MOSFET Turn on Resistor RSS(ON)
=33mohm(Max)@Vgs=4.5V
• Drain to Drain MOSFET Module
• With ESD Protection
• Continuous Current=5.2A
• Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

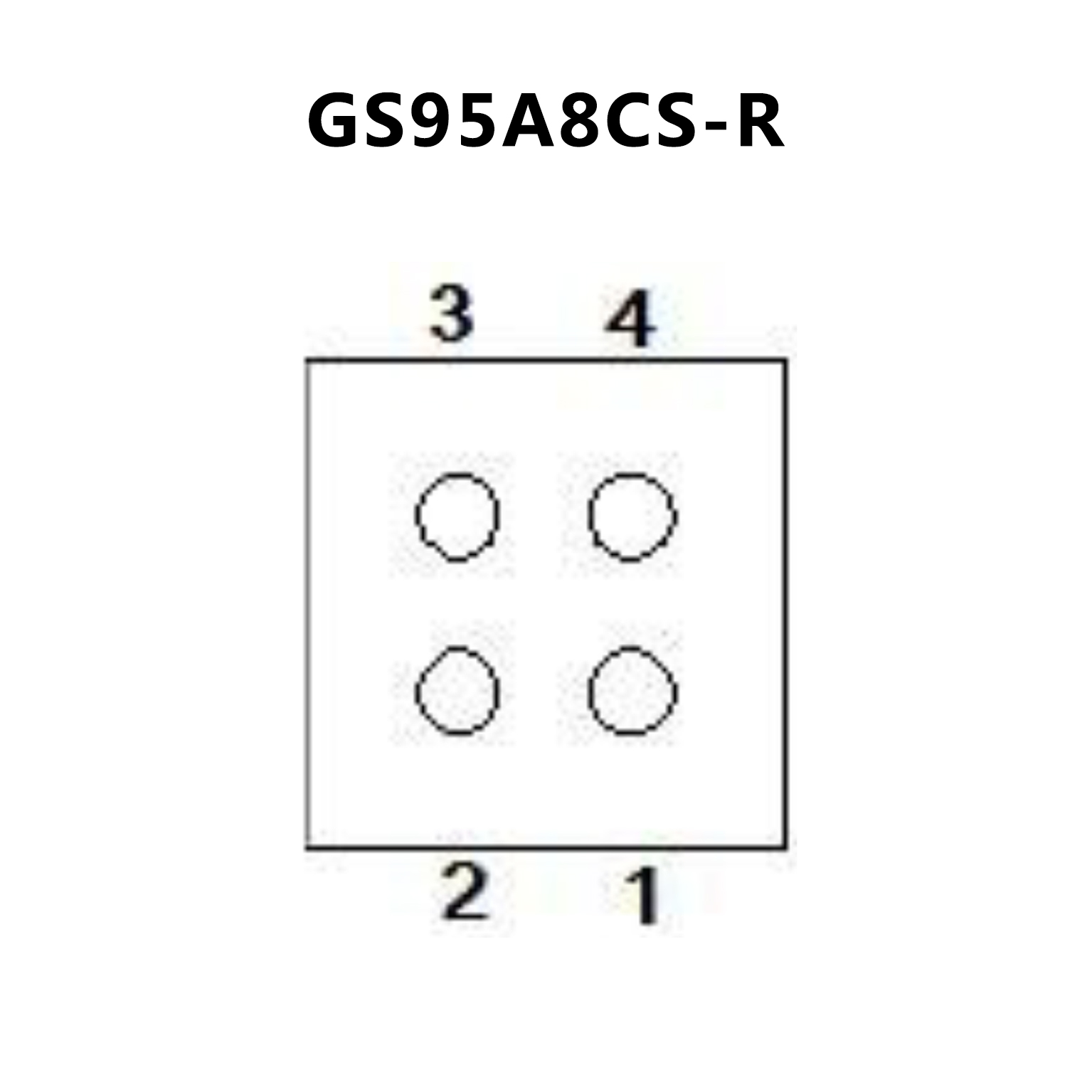

PIN CONFIGUTION
优势替代
FEATURES
• Source-source On-state Resistance : RSS(on) typ. = 30 mW ( VGS = 4.0 V )
• CSP ( Chip Size Package )
• Halogen-free / RoHS compliant ( EU RoHS / UL-94 V-0 / MSL : Level 1 )

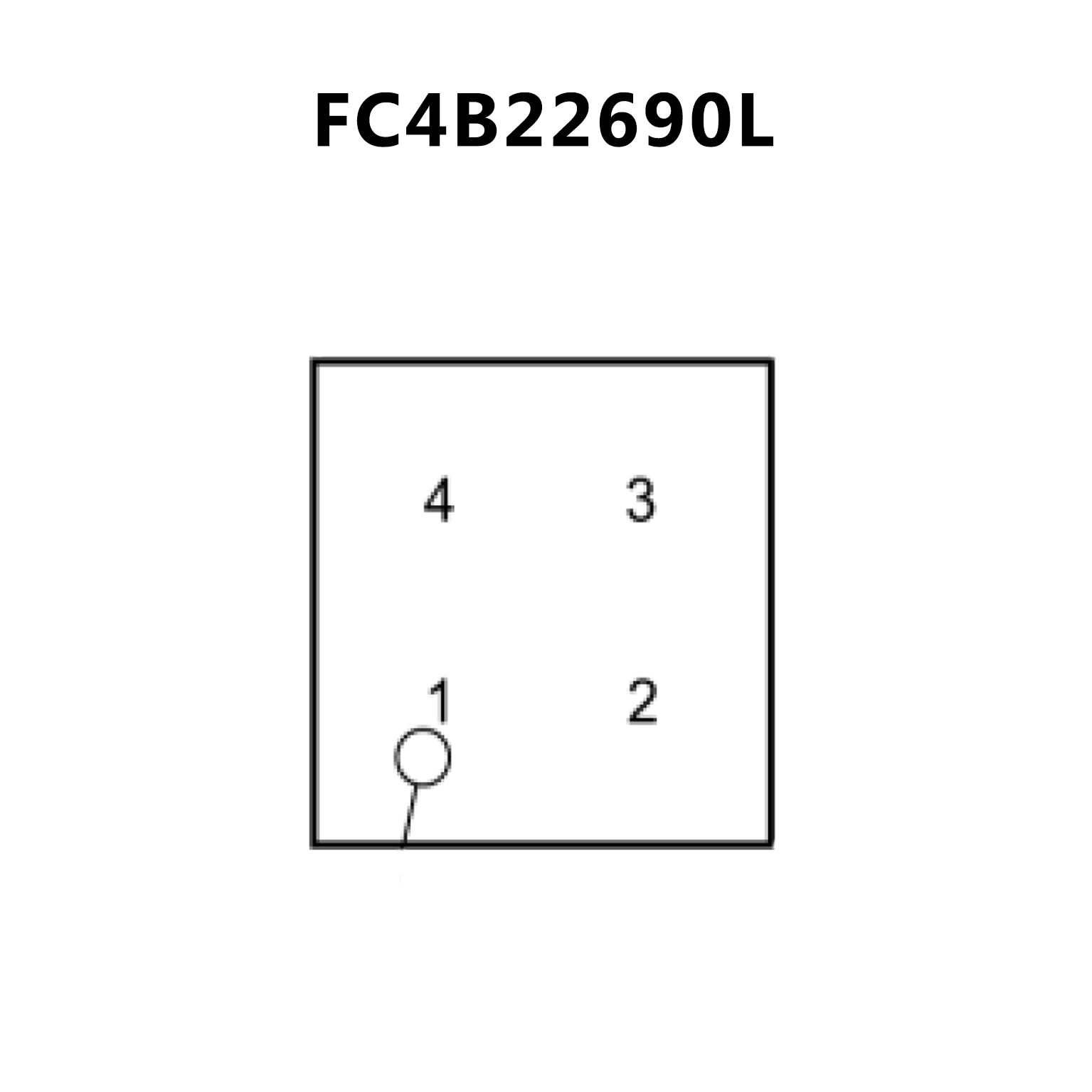

PIN CONFIGUTION
