Gate resistor installed Dual N-channel MOS FET, GS95B3CS-R Replace FCAB21490.
GS95B3CS-R
GS95B3CS-R.pdf
GS95B3CS-R.pdfFEATURES
• Input Voltage up to 12V
• MOSFET Turn on Resistor RSS(ON)
=2.2mohm(Typ)@Vgs=3.8V
• Drain to Drain MOSFET Module
• With ESD Protection
• Continuous Current=13.5A
• Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

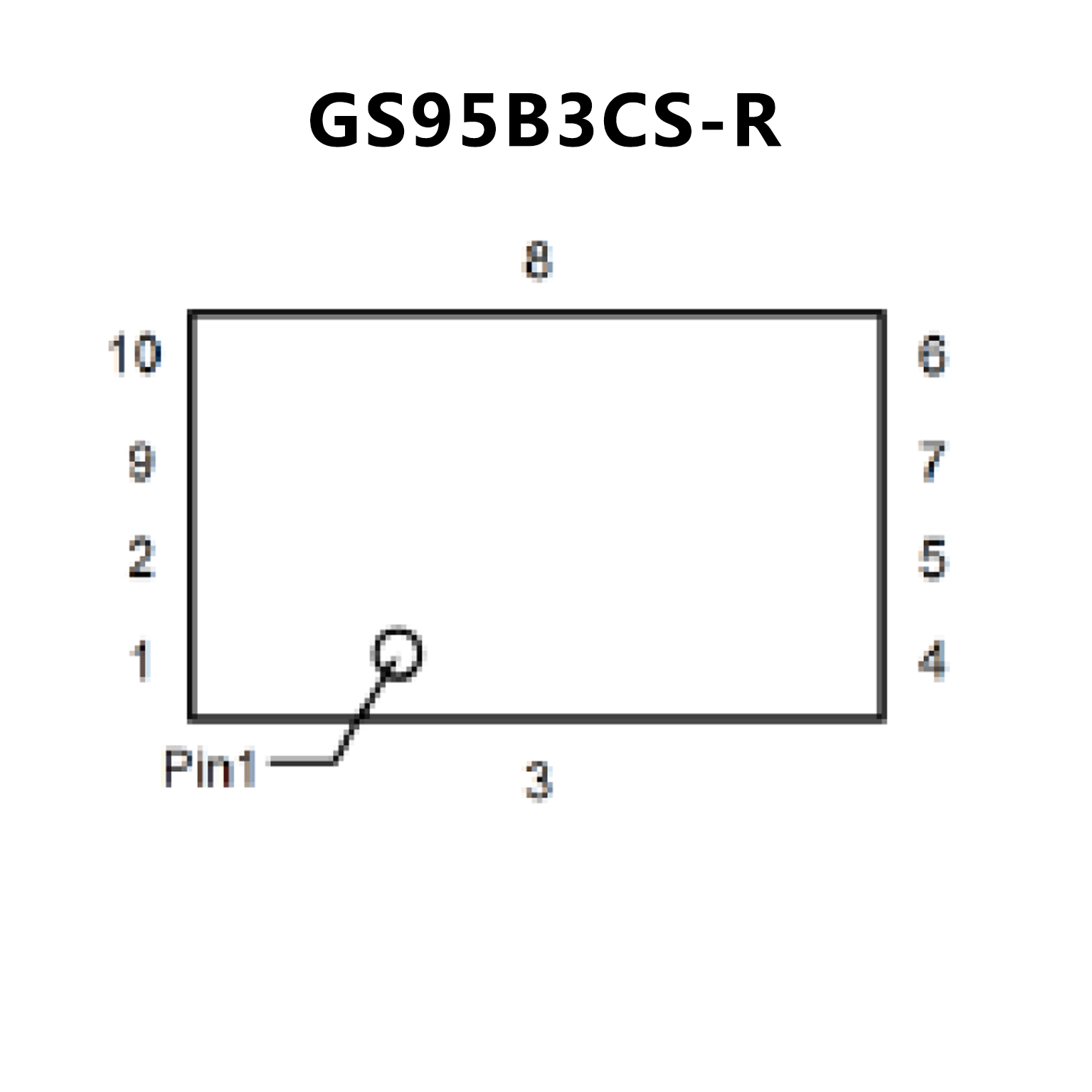

PIN CONFIGUTION
优势替代
FEATURES
• Source-source ON resistance:RSS(on) typ. = 2.2 mW（VGS = 3.8 V)
• CSP(Chip Size Package)
• Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL : Level 1)
PIN CONFIGUTION
