Dual N-channel MOSFET, GS95B9CS-R Replace KFCAB21B30L.
GS95B9CS-R
GS95B9CS-R.pdf
GS95B9CS-R.pdfFEATURES
• Input Voltage up to 12V
• MOSFET Turn on Resistor RSS(ON)
=2.2mohm(typ)@Vgs=3.8V
• Drain to Drain MOSFET Module
• With ESD Protection
• Continuous Current=20A
• Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

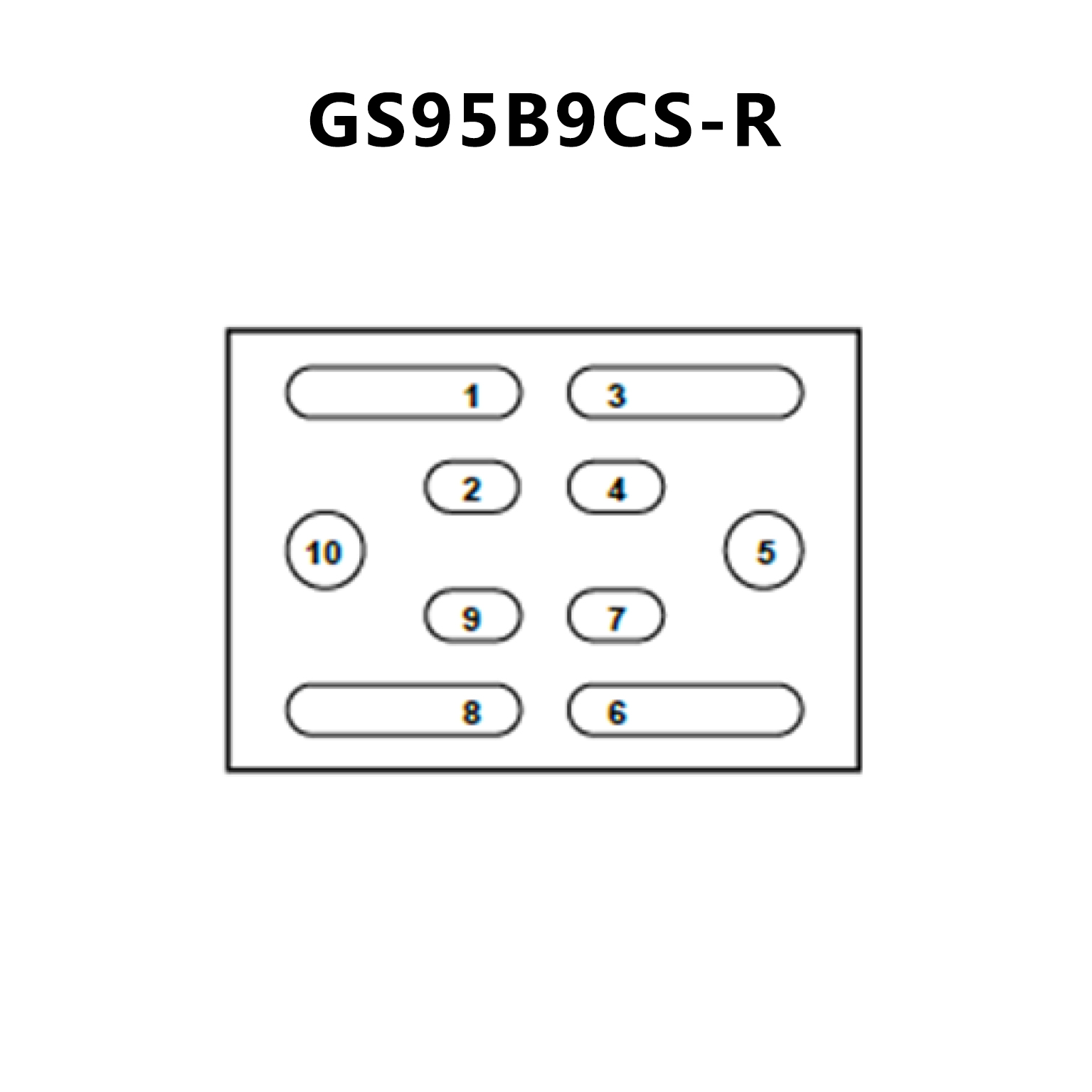

PIN CONFIGUTION
优势替代
FEATURES
• Source-source On-state Resistance:
RSS(on) typ = 2.2 mΩ (VGS = 3.8 V)
• CSP (Chip Size Package)
• Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1)

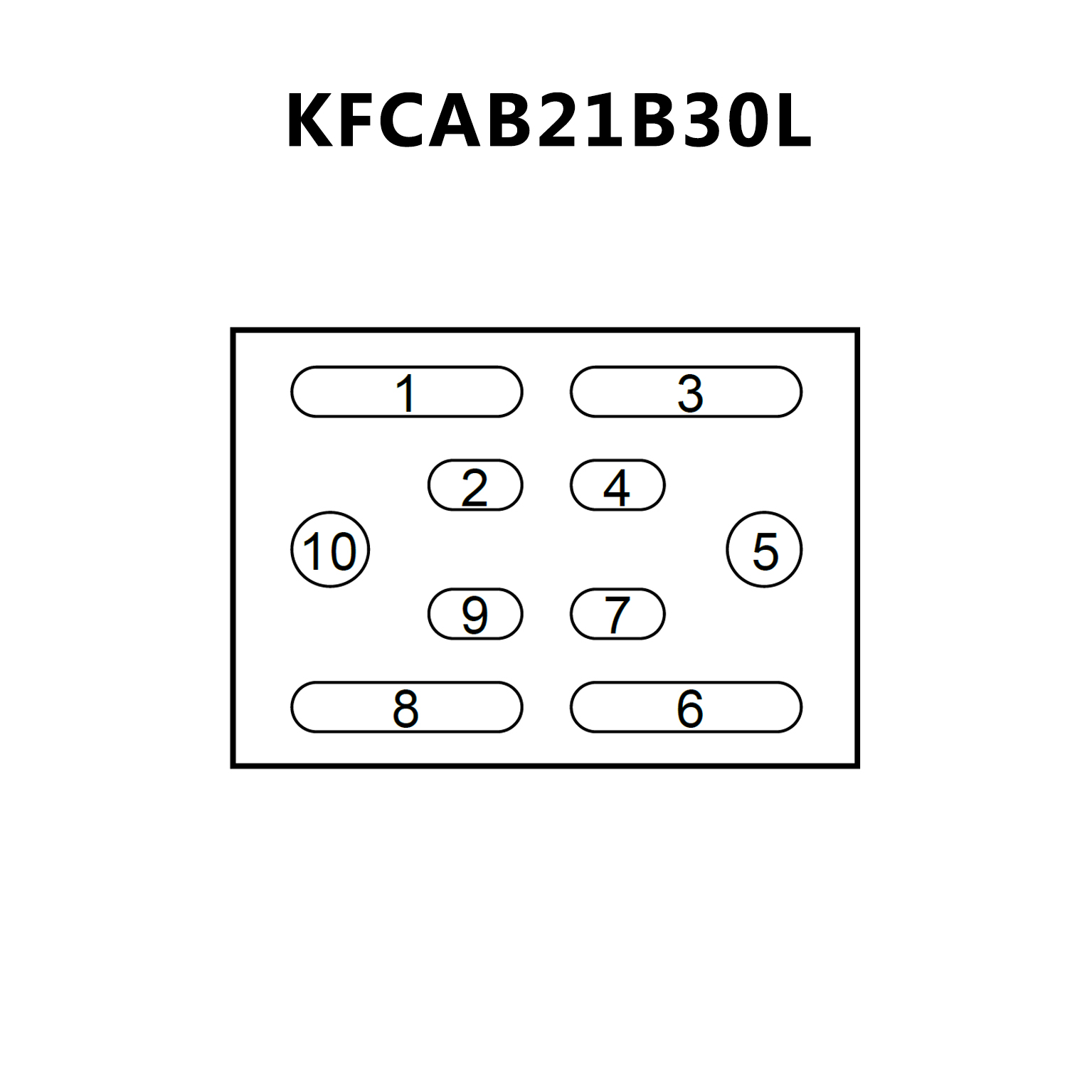

PIN CONFIGUTION
