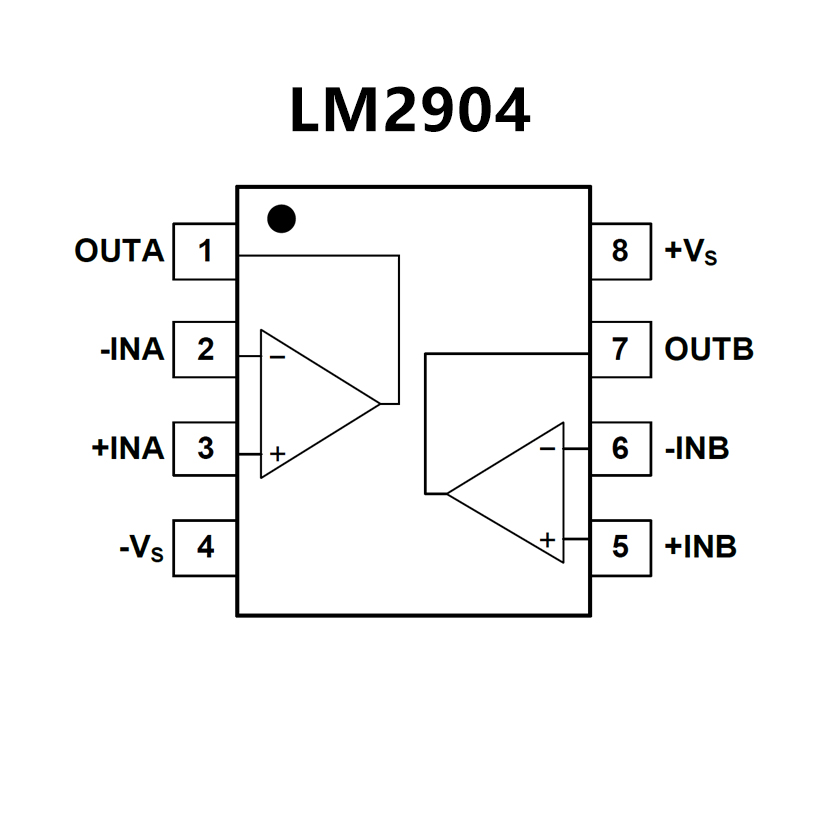

LM2904.pdf• Wide Power Supply Voltage Range:
• Single Supply: 3V to 36V
• Dual Supplies: ±1.5V to ±18V
• Very Low Supply Current Drain
• LM2904 500μA – Independent of Supply Voltage
• LM2902 700μA – Independent of Supply Voltage
• Low Input Bias Current: 20nA
• Low Input Offset Voltage:
• A Version: 1mV Typ
• Non-A Version: 2mV Typ
• Large DC Voltage Gain: 100dB
• Wide Bandwidth (Unity Gain):
700kHz (Temperature
Compensated)
• Internally Compensated with Unity Gain
• Input Common-Mode Voltage
Range Includes Ground
• Differential Input Voltage Range
Equal to the Power Supply
Voltage
• Large Output Voltage Swing:
0V to VCC -1.5V
• SO-8, MSOP-8, TSSOP-8 (Duals)
and SO-14, TSSOP-14
(Quads) Packages Available
• Totally Lead-Free & Fully RoHS
Compliant (Notes 1 & 2)
• Halogen and Antimony Free.
“Green” Device (Note 3)
• An Automotive-Compliant Part is
Available Under Separate

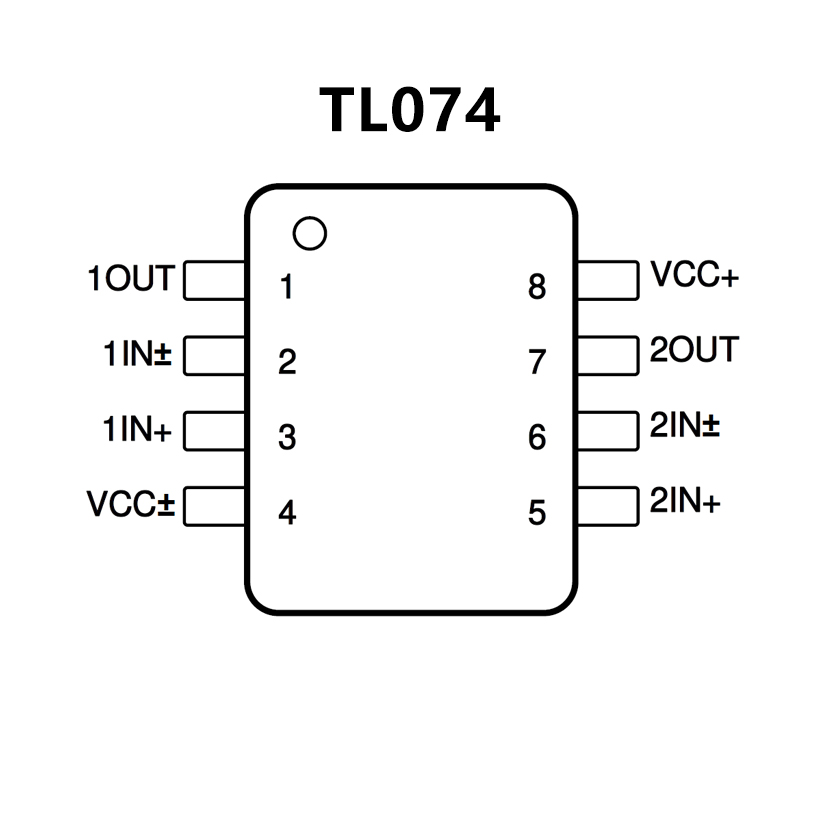

• High slew rate: 20 V/μs (TL07xH, typ)
• Low offset voltage: 1 mV (TL07xH, typ)
• Low offset voltage drift: 2 μV/°C
• Low power consumption: 940 μA/ch (TL07xH, typ)
• Wide common-mode and differential
voltage ranges
Common-mode input voltage range
includes VCC+
• Low input bias and offset currents
• Low noise:
Vn = 18 nV/√Hz (typ) at f = 1 kHz
• Output short-circuit protection
• Low total harmonic distortion: 0.003% (typ)
• Wide supply voltage:
±2.25 V to ±20 V, 4.5 V to 40 V
