Precision Micropower Shunt Voltage Reference, DIODESLM4041 Replace ADI LM4041.
LM4041
LM4041.pdf
LM4041.pdfFEATURES
• Small packages: SOT23, SC70-5
• No output capacitor required
• Output voltage tolerance
• LM4041C: ±0.5% at 25°C
• LM4041D: ±1% at 25°C
• Low output noise: 20µVrms (10Hz to 10kHz)
• Wide operating current range: 60µA to 12mA
• Extended temperature range: -40°C to +125°C
• Low temperature coefficient : 100ppm/°C (max)
• All parts AEC-Q100 Grade1 qualified

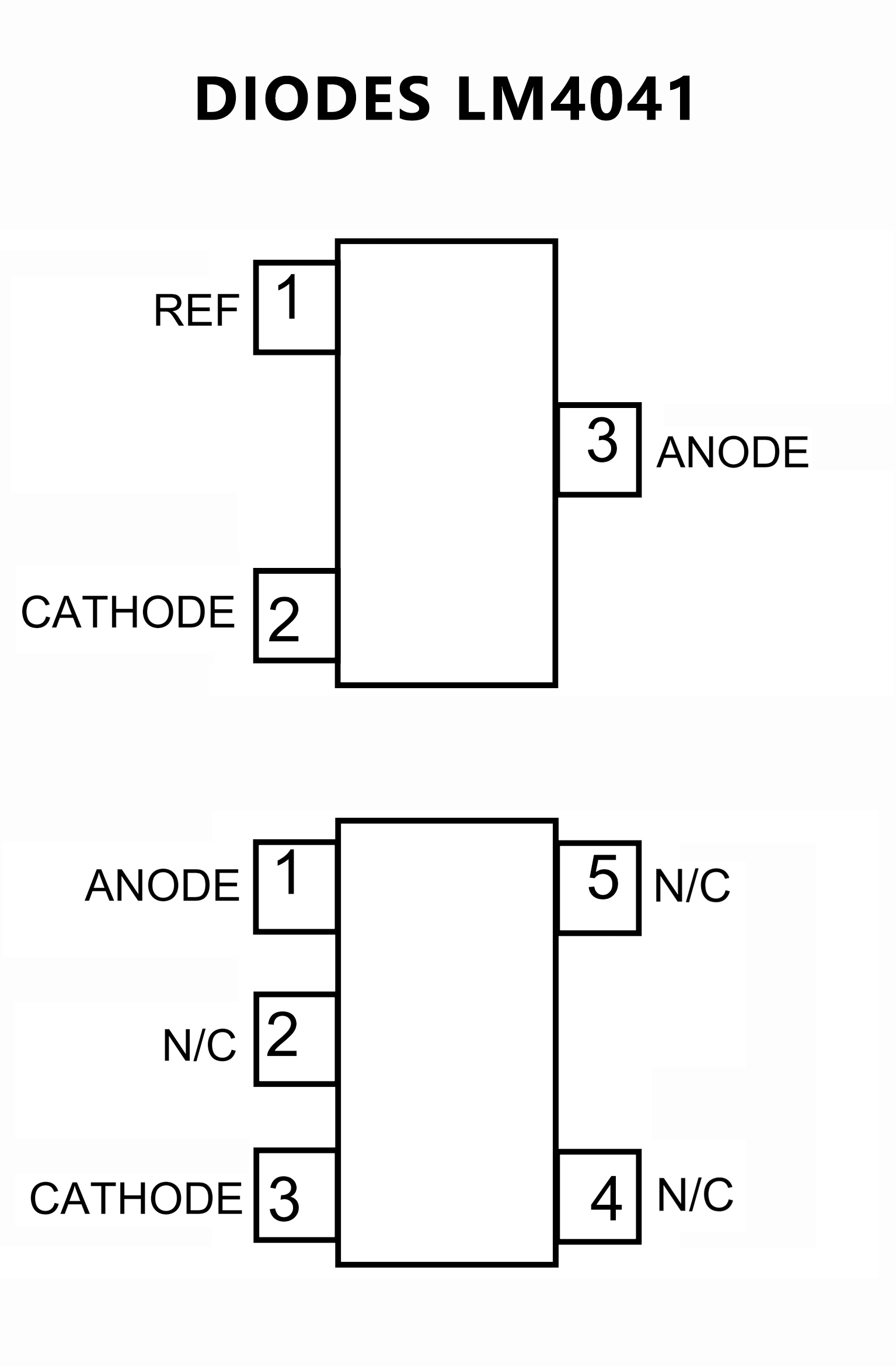

PIN CONFIGUTION
优势替代
FEATURES
• Ultra-Small 3-Pin SC70 Package
• 0.1% (max) Initial Accuracy
• 100ppm/°C (max) Temperature Coefficient
Guaranteed over -40°C to +125°C Temperature
Range
• Wide Operating Current Range: 60µA to 12mA
• Low 20µVRMS Output Noise (10Hz to 10kHz)
• 1.225V Fixed Reverse Breakdown Voltage
• No Output Capacitors Required
• Tolerates Capacitive Loads

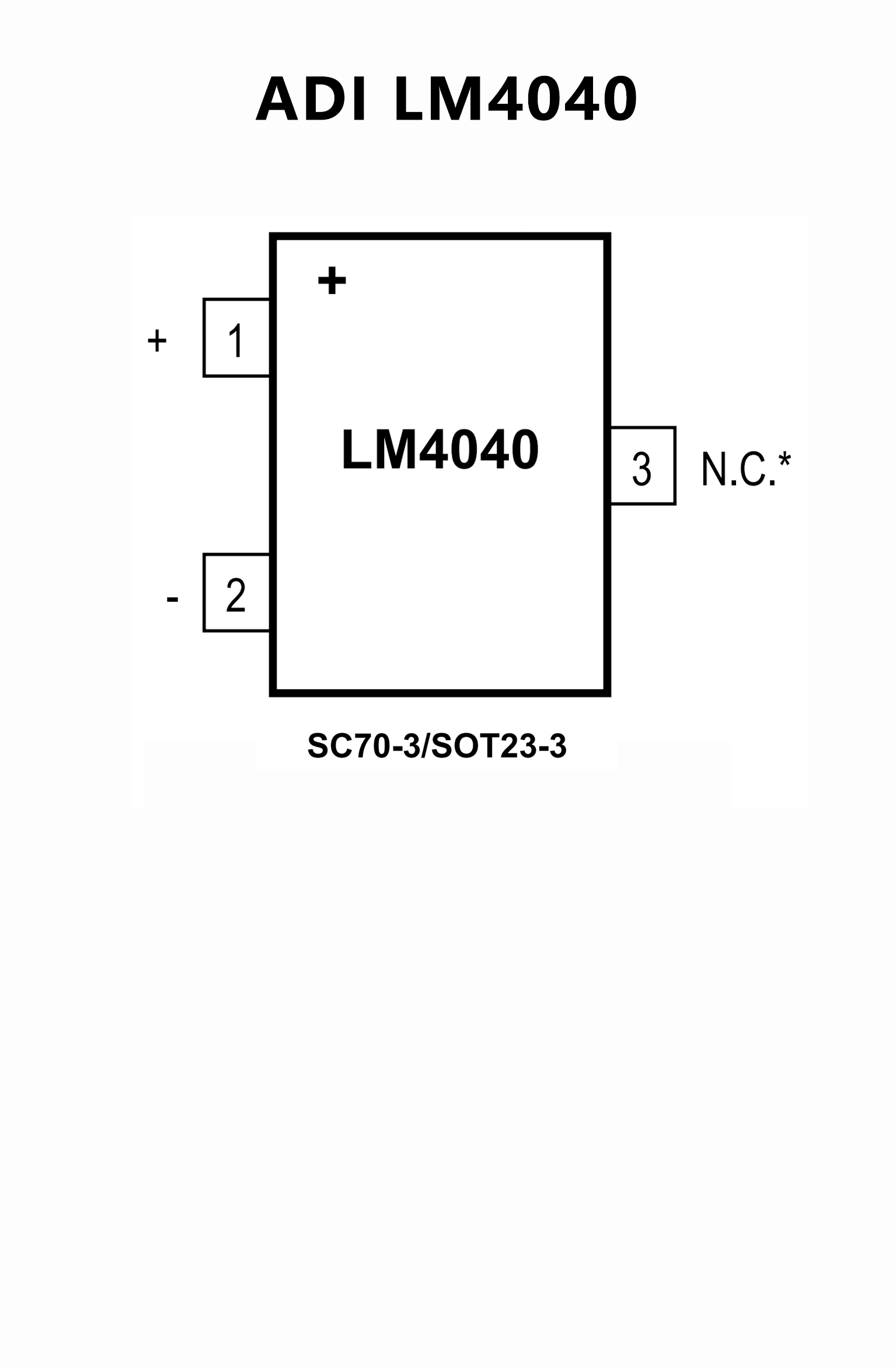

PIN CONFIGUTION
