SP6T Switch with MIPI for LTE Diversity,MXD8666 Replace SGM72106.
SGM72106
SGM72106.pdf
SGM72106.pdfFEATURES
• Supply Voltage Range: 2.4V to 4.8V
• Advanced Silicon-On-Insulator (SOI) Process
• Frequency Range: 0.1GHz to 3.0GHz
• Low Insertion Loss: 0.65dB (TYP) at 2.7GHz
• MIPI RFFE Interface Compatible
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-2×2-14AL Package

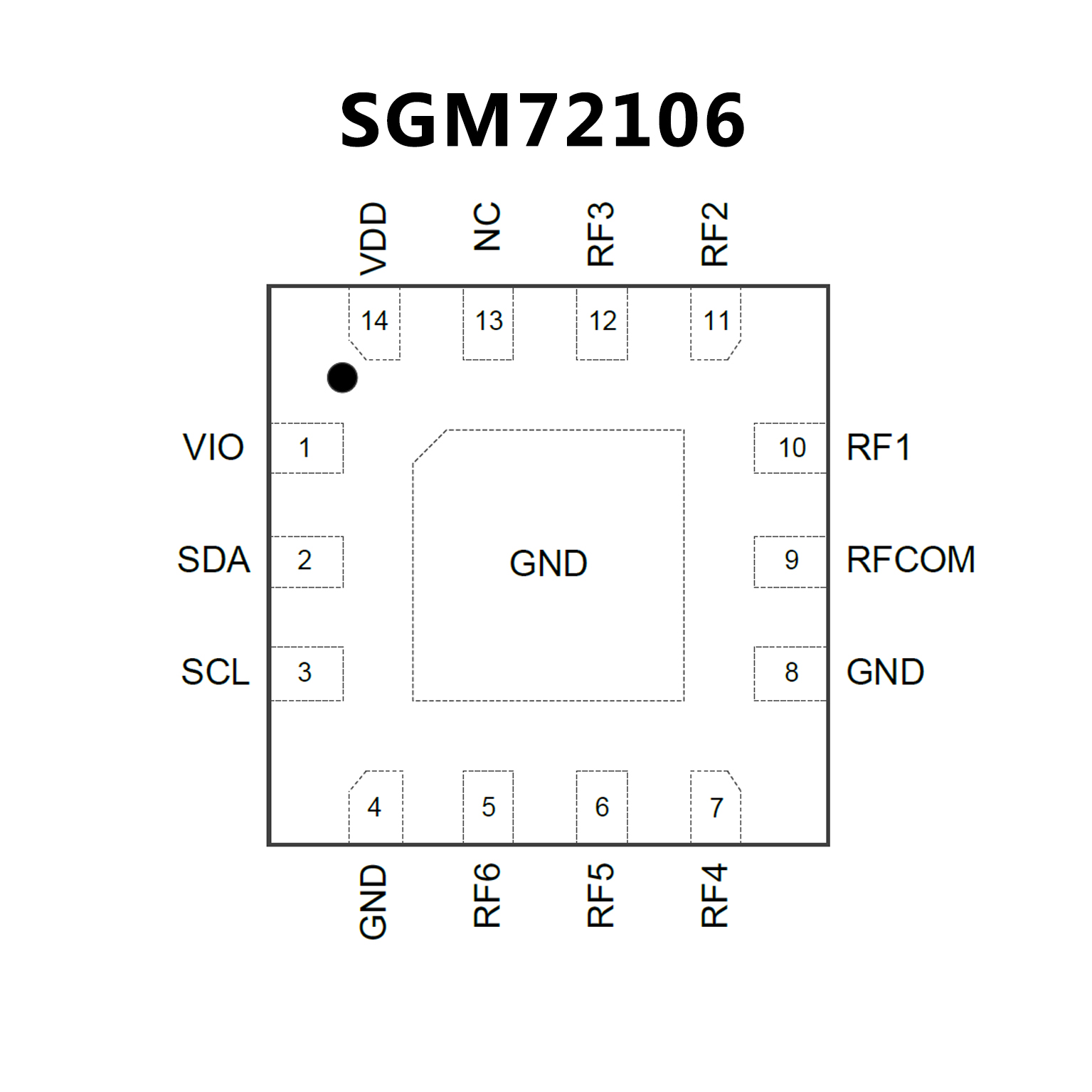

PIN CONFIGUTION
优势替代
FEATURES
• Excellent insertion loss
-0.50 dB Insertion Loss at 2.7GHz
• P0.1dB @ 27dBm
• Multi-Band operation 700MHz to 3000MHz
• RFFE serial control interface
• Compact 2mm x 2mm in QFN-14 package
• No DC blocking capacitors required (unless
external DC is applied to the RF ports)

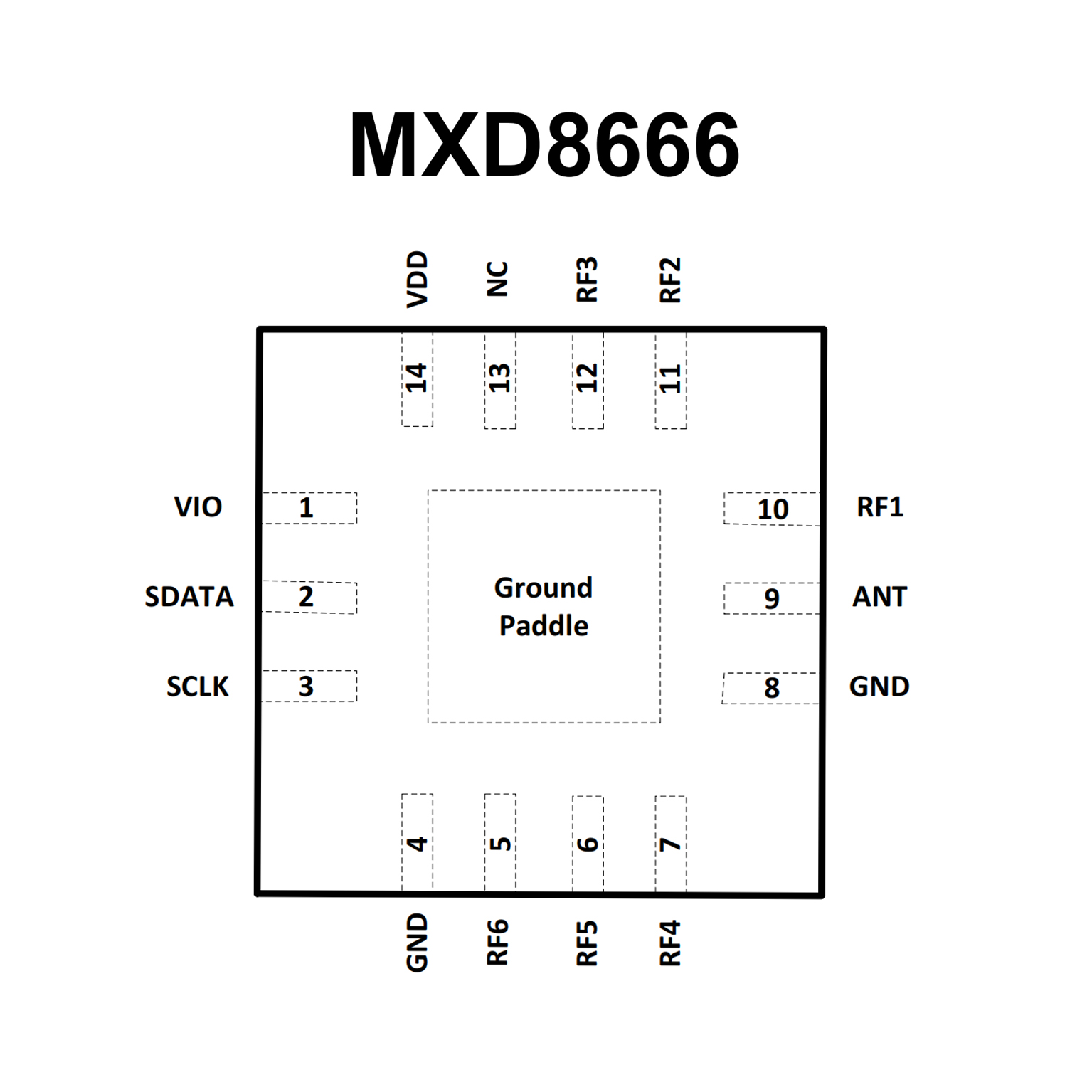

PIN CONFIGUTION
