Integrated Driver and MOSFET, NDB302RA Replace AOZ5613QI.
NDB302RA
NDB302RA.pdf
NDB302RA.pdfFEATURES
• Capable of Average Currents up to 65 A.
• Capable of Switching at Frequencies up to 1 MHz.
• Compatible with 3.3 V or 5 V PWM Input.
• Responds Properly to 3-level PWM Inputs.
• Option for Zero Cross Detection with 3-level PWM.
• Internal Bootstrap Diode.
• Undervoltage Lockout.
• Supports Intel® Power State 4.
• Thermal Warning output.
• Thermal Shutdown.
PIN CONFIGUTION
优势替代
FEATURES
• 4.5V to 20V power supply range
• 4.5V to 5.5V driver supply range
• 65A continuous output current
Up to 80A with 10ms on pulse
Up to 120A with 10us on pulse
• Up to 2MHz switching operation
• 5V PWM/Tri-State input compatible
• Under-voltage lockout protection
• SMOD# control for diode emulation/CCM operation
• Low Profile 5x5 QFN-31L package

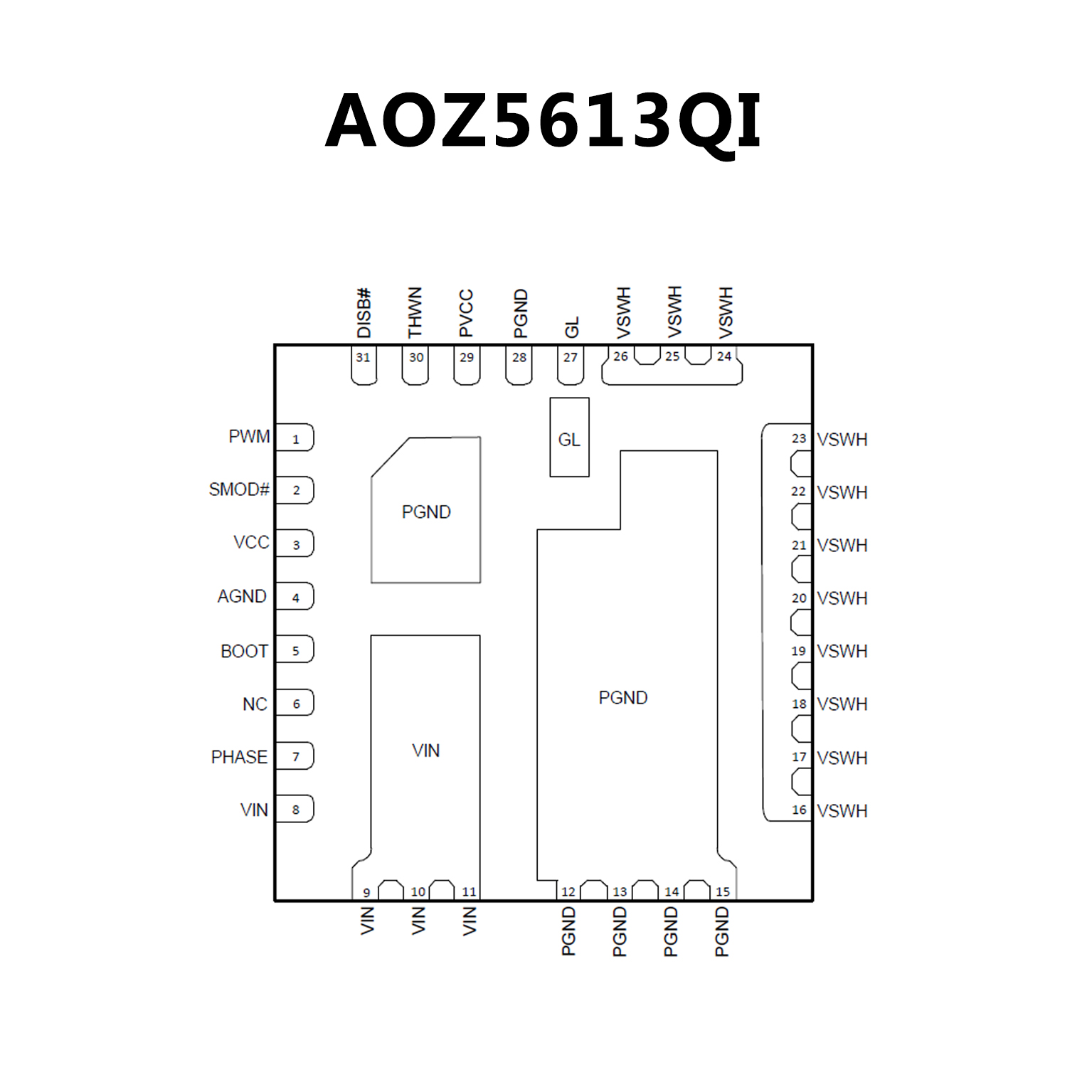

PIN CONFIGUTION
