High-Current, High-Performance DrMOS Power Module, NDC300RA Replace AOZ5016QI.
NDC300RA
NDC300RA.pdf
NDC300RA.pdfFEATURES
• Capable of Average Currents up to 55 A.
• Capable of Switching at Frequencies up to 1 MHz.
• Compatible with 3.3 V or 5 V PWM Input.
• Responds Properly to 3-level PWM Inputs.
• Option for Zero Cross Detection with 3-level PWM.
• Internal Bootstrap Diode.
• Undervoltage Lockout.
• Supports Intel® Power State 4.

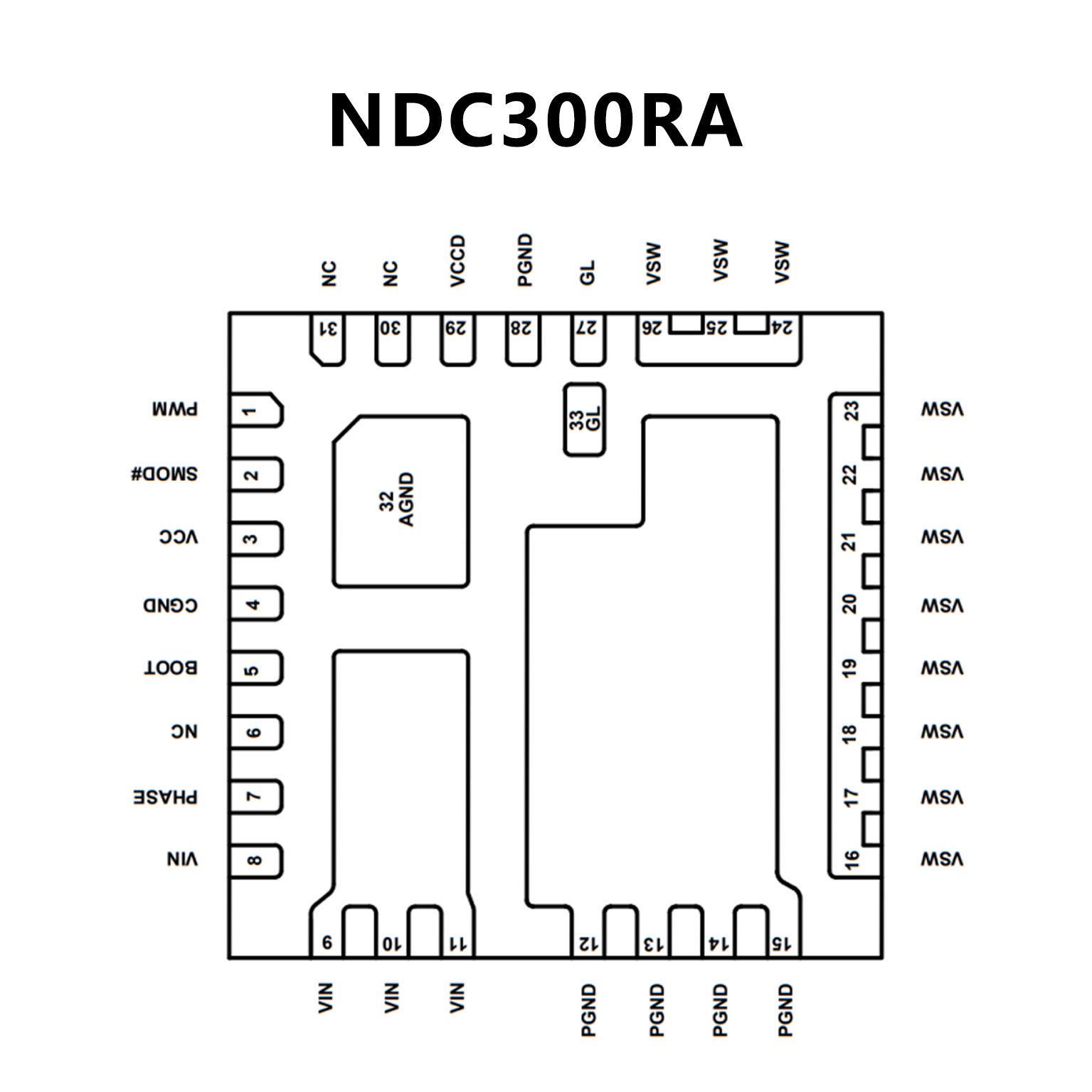

PIN CONFIGUTION
优势替代
FEATURES
• 4.5V to 25V power supply range
• 4.5V to 5.5V driver supply range
• 55A continuous output current
Up to 80A with 10ms on pulse
Up to 120A with 10us on pulse
• Up to 2MHz switching operation
• 5V PWM and Tri-State input compatible
• Under-Voltage LockOut protection
• FCCM control for Diode Emulation / CCM operation
• Standard 5mm x 5mm QFN-31L package

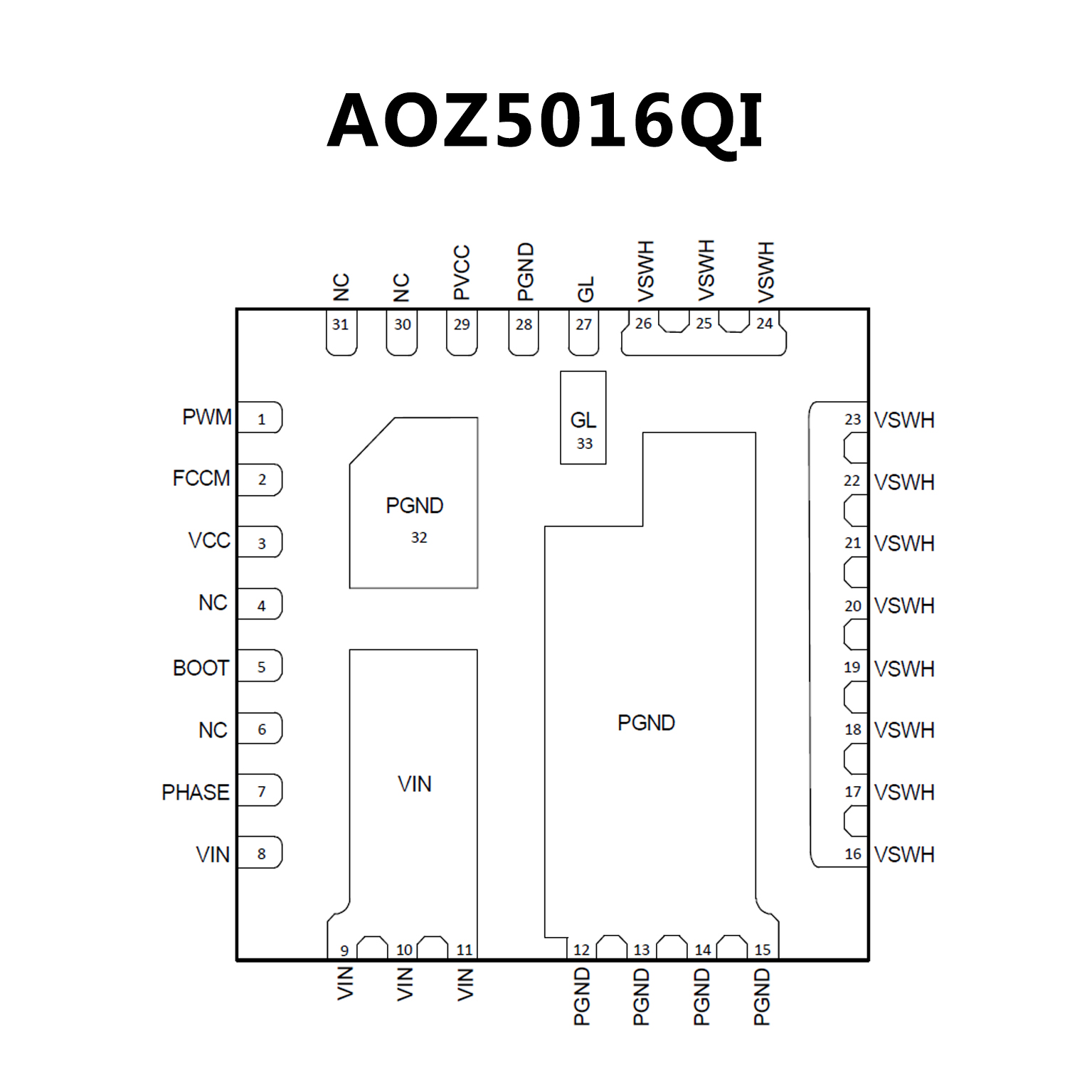

PIN CONFIGUTION
