High-Current, High-Performance DrMOS Power Module, NDC301RA Replace AOZ5017QI.
NDC301RA
NDC301RA.pdf
NDC301RA.pdfFEATURES
• Capable of Average Currents up to 60 A.
• Capable of Switching at Frequencies up to 1 MHz.
• Compatible with 5V PWM Input.
• Good 30V HS/LS MOSFET Characteristics
• The QFN5x5 Package of Low Impedance design.
• Zero Current Detection for High Efficiency at Light Load.
• Internal Bootstrap Diode.
• Under voltage Protection.
• Thermal Shutdown.
• Supports Intel® Power State 4.
PIN CONFIGUTION
优势替代
FEATURES
• 4.5V to 25V power supply range
• 4.5V to 5.5V driver supply range
• 60A continuous output current
Up to 80A with 10ms on pulse
Up to 120A with 10us on pulse
• Up to 2MHz switching operation
• 5V PWM and Tri-State input compatible
• Under-Voltage LockOut protection
• FCCM control for Diode Emulation / CCM operation
• Standard 5mm x 5mm QFN-31L package

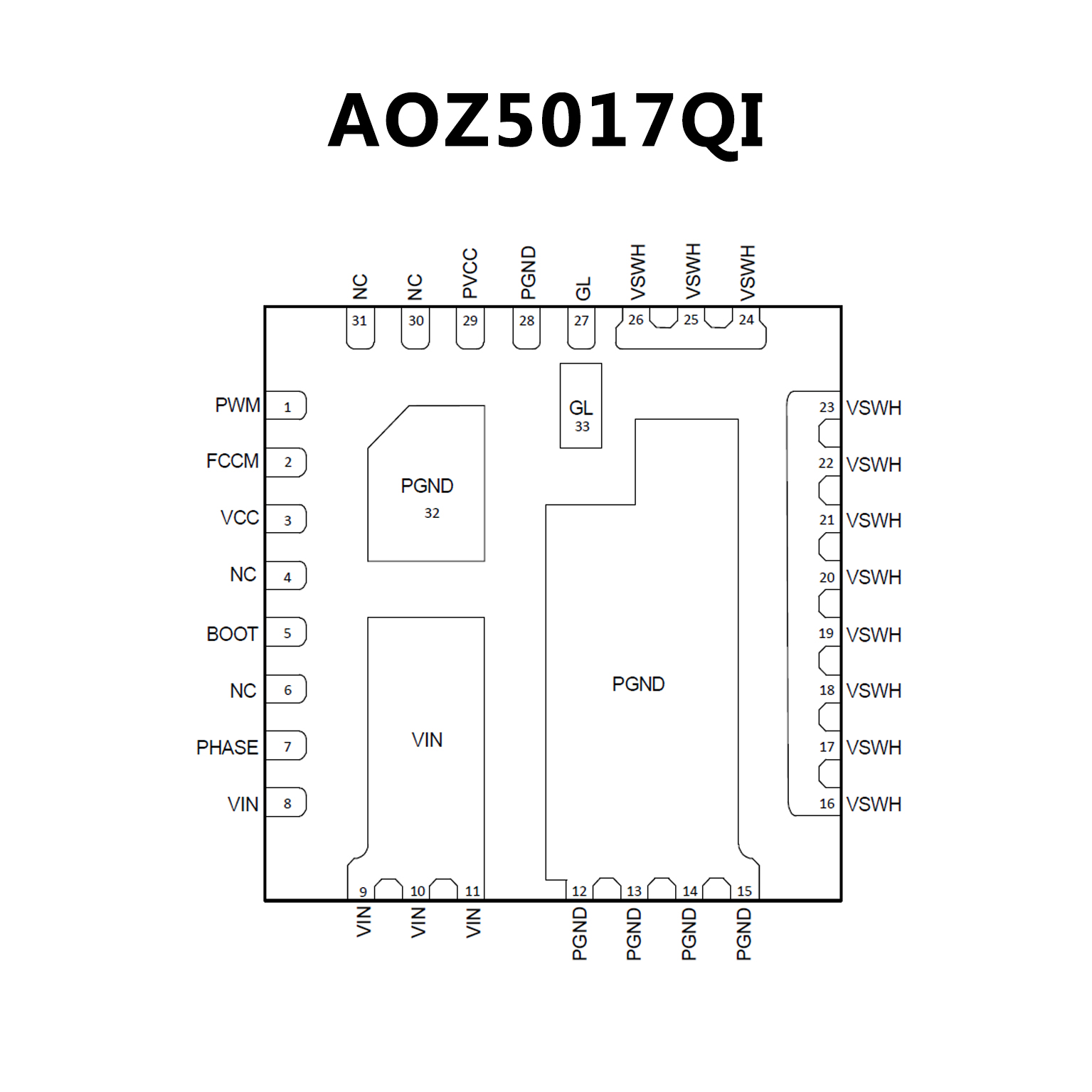

PIN CONFIGUTION
