High-Current, High-Performance DrMOS Power Module, NDC302RA Replace AOZ5517QI.
NDC302RA.pdf优势替代
FEATURES
• 4.5V to 25V power supply range
• 4.5V to 5.5V driver supply range
• 60A continuous output current
Up to 80A with 10ms on pulse
Up to 120A with 10µs on pulse
• Up to 2MHz switching operation
•5V PWM / Tri-State input compatible
• Under-Voltage LockOut protection
• FCCM pin control for Shutdown / Diode Emulation /CCM operation
• Standard 5mm x 5mm QFN-31L package

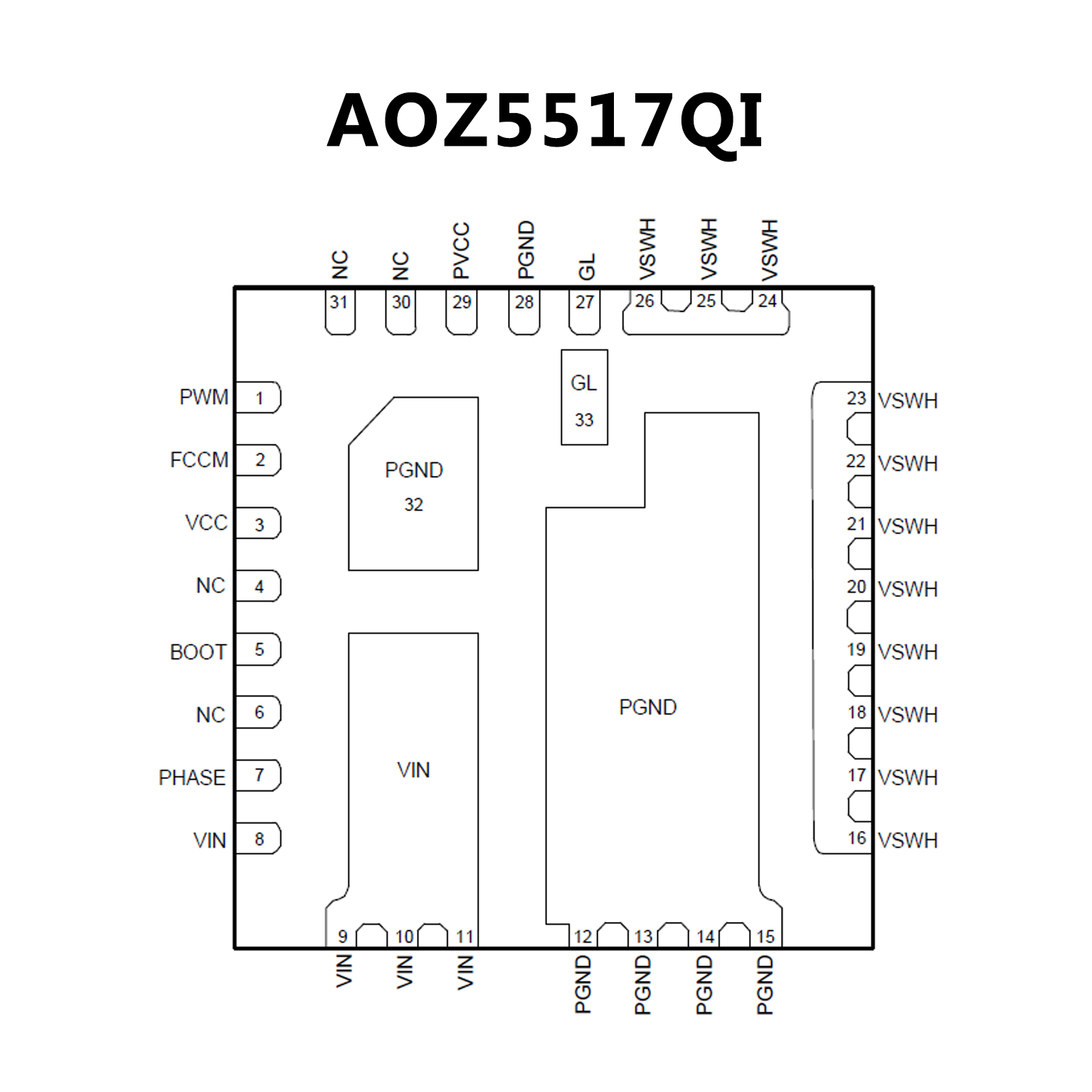

PIN CONFIGUTION
