1.8/3.3V High-Bandwidth 6-channel, 2:1 Mux/DeMux, PI3A27518 Replace TS3A27518E.
FEATURES

 CMOS Technology for bus and analog applications
 Low propagation delay
 Low typical On-Resistance: 5Ω
 Signal passing bandwidth, 380 MHz
 Wide VDD range: 1.65V to 3.6V
 Rail-to-Rail signal range
 High Off Isolation: -66dB @ 10MHz
 Crosstalk Rejection reduces signal distortion:
  -60dB @ 10MHz
 Break-Before-Make Switching
 Extended Industrial Temperature Range:
  -40°C to 85°C
 ESD protection : 2.5kV(HBM)
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 For automotive applications requiring specific change
  control
 https://www.diodes.com/quality/product-definitions/
 Packaging (Pb-free & Green):
  24-pin TQFN (ZD), 4mm x 4mm

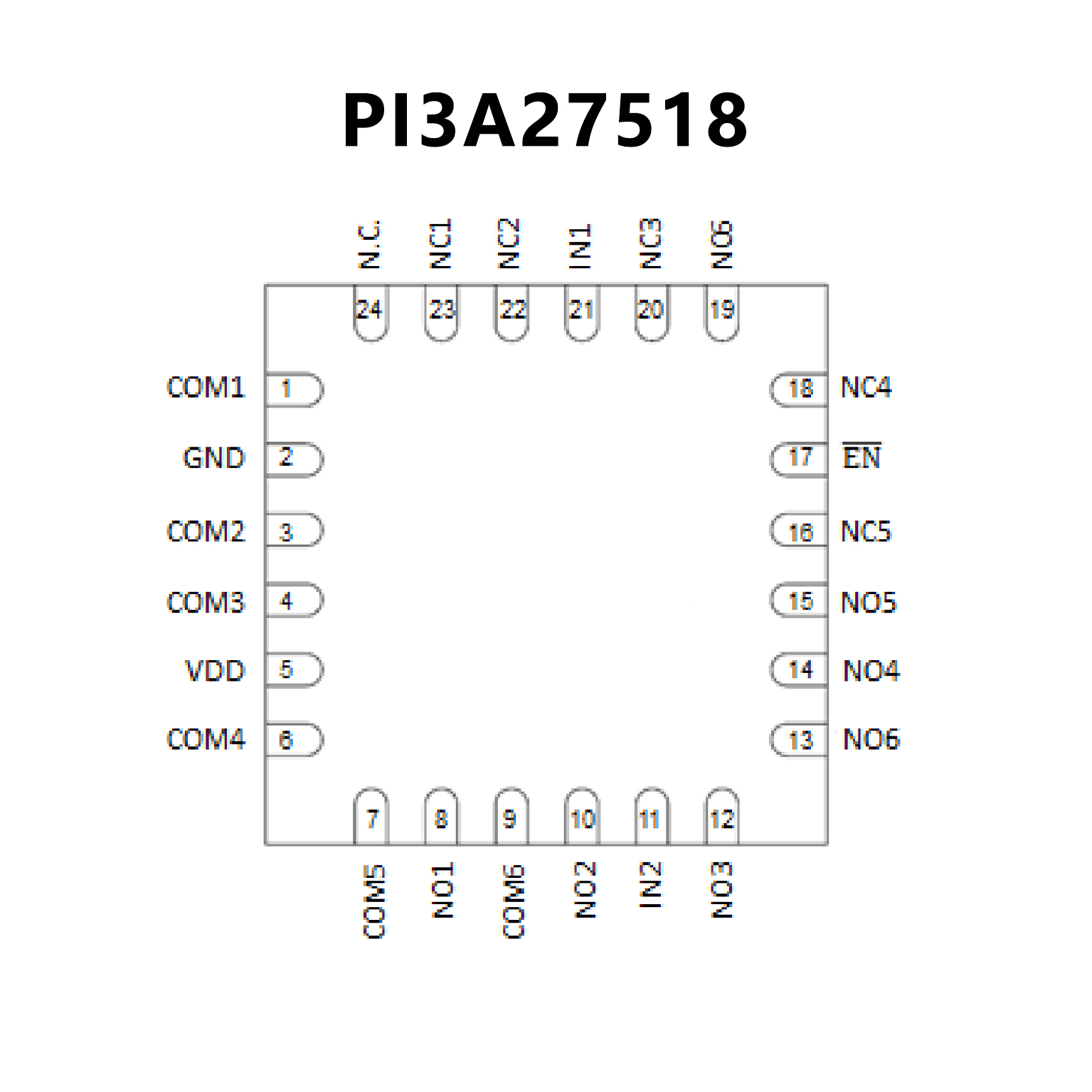

PIN CONFIGUTION
优势替代
TS3A27518E TS3A27518E.pdf

No.14288

FEATURES

• 1.65 V to 3.6 V single-supply operation

• Isolation in power-down mode, VCC = 0

• Low-capacitance switches, 21.5 pF (typical)

• Bandwidth up to 240 MHz for high-speed

  rail-to-rail signal handling

• Crosstalk and OFF isolation of –62 dB

• 1.8 V logic compatible control inputs

• 3.6 V tolerant control inputs

• Latch-up performance exceeds 100 mA per JESD

  78, Class II

• ESD performance tested per JESD 22

  2500-V human-body model (A114-B, Class II)

  1500-V charged-device model (C101)

• ESD performance: NC/NO ports

  ±6-kV contact discharge (IEC 61000-4-2)

• 24-WQFN (4.00 mm × 4.00 mm) and 24-TSSOP

  (7.90 mm × 6.60 mm) packages

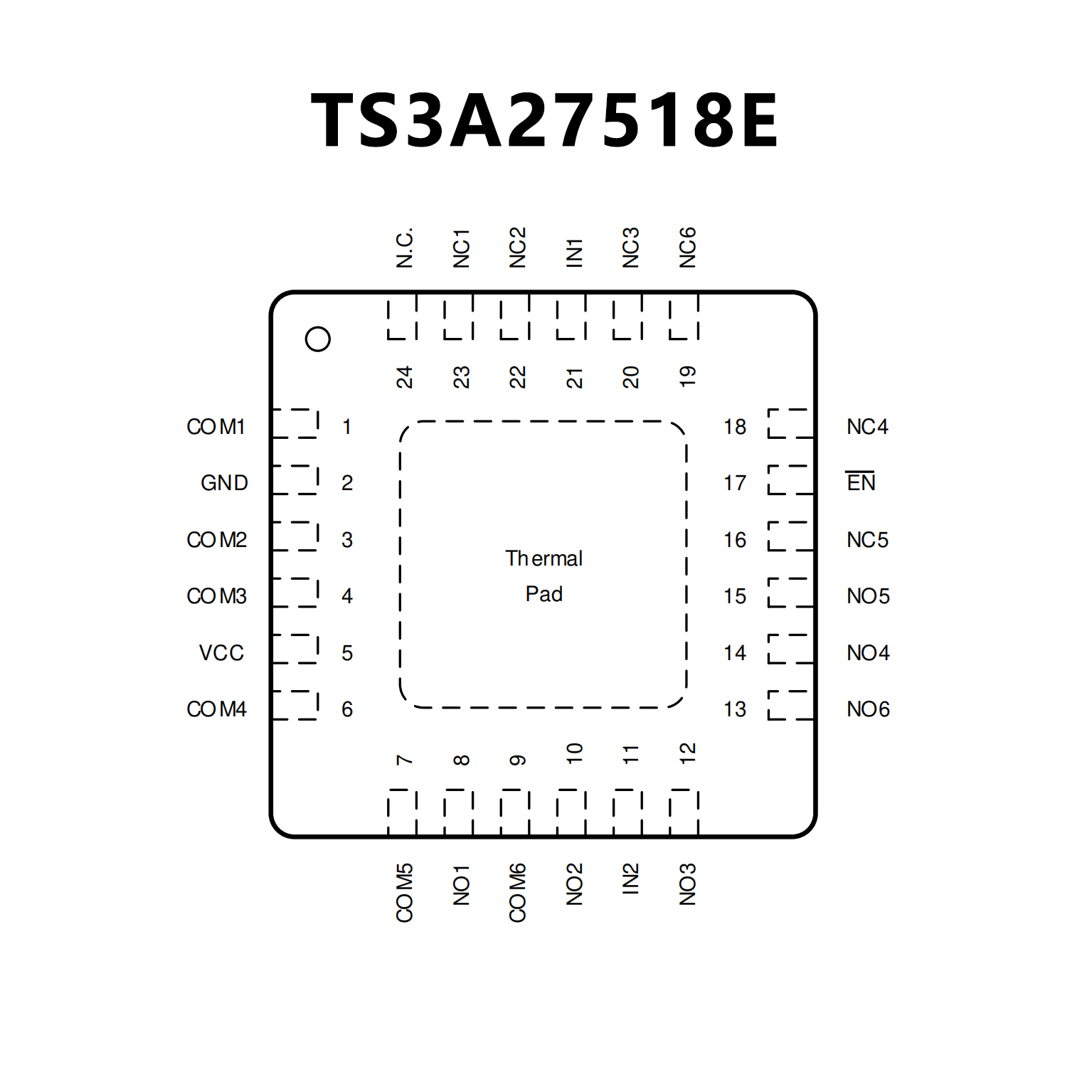

PIN CONFIGUTION
