3.3V, 4-Bit, 2-Port Nanoswitchw/Individual Enables, PI3B3125 Replace SN74CBTLV3125.
PI3B3125
PI3B3125.pdf
PI3B3125.pdfFEATURES
• Near-Zero propagation delay
• 5Ω switches connect inputs to outputs
• Fast Switching Speed -4ns Max.
• Ultra Low Quiescent Power (0.1µA Typical)
Ideally suited for notebook applications
• Packaging (Pb-free & Green available):
14-pin， SOIC (W)
14-pin，TSSOP (L)
14-pin， TQFN (ZDB)
16-pin，QSOP (Q)

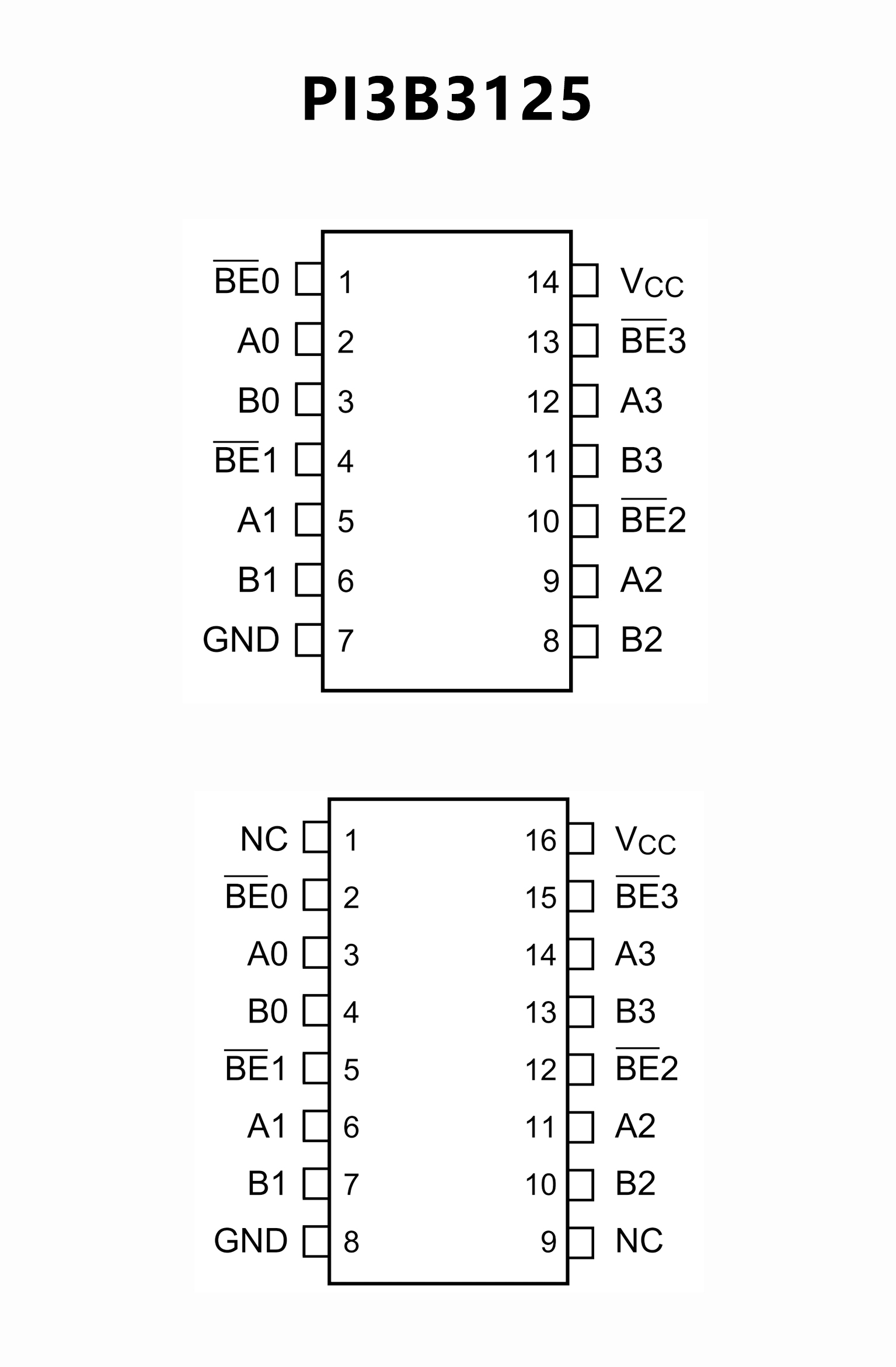

PIN CONFIGUTION
优势替代
FEATURES
• Standard ’125-Type Pinout
• 5-Ω Switch Connection Between Two Ports
• Rail-to-Rail Switching on Data I/O Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78,
Class II

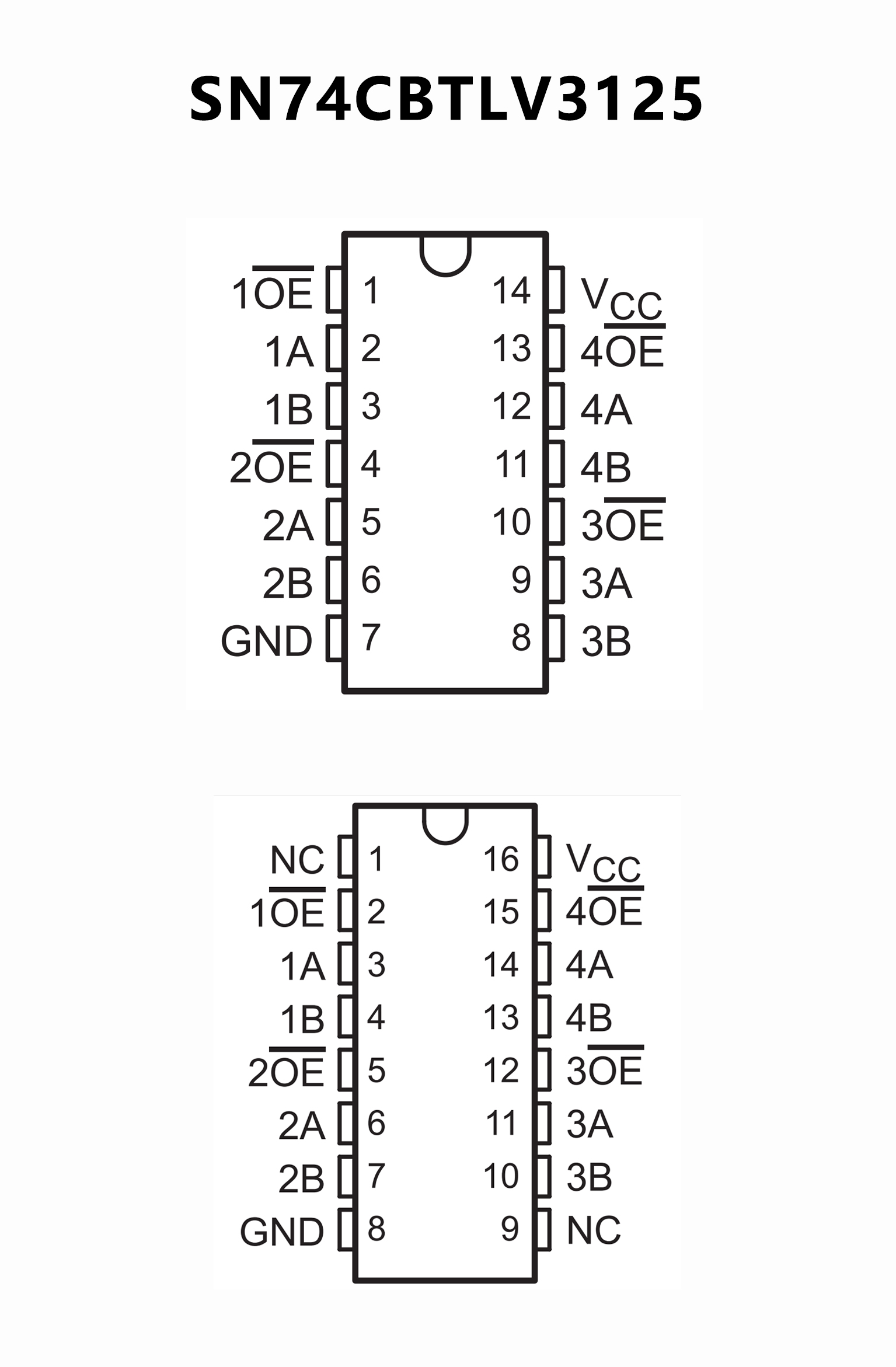

PIN CONFIGUTION
