3.3V, 8:1 Mux/DeMux NanoSwitch, PI3B3251 Replace CBT3251.
PI3B3251
PI3B3251.pdf
PI3B3251.pdfFEATURES
• Near-Zero propagation delay
• 5Ω switches connect inputs to outputs
• Ultra Low Quiescent Power (0.1µA typical)
– Ideally suited for notebook applications
• Pin compatible with 74 series 251 logic devices
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaging (Pb-free & Green available):
– 16-pin 173-mil Wide (TSSOP)

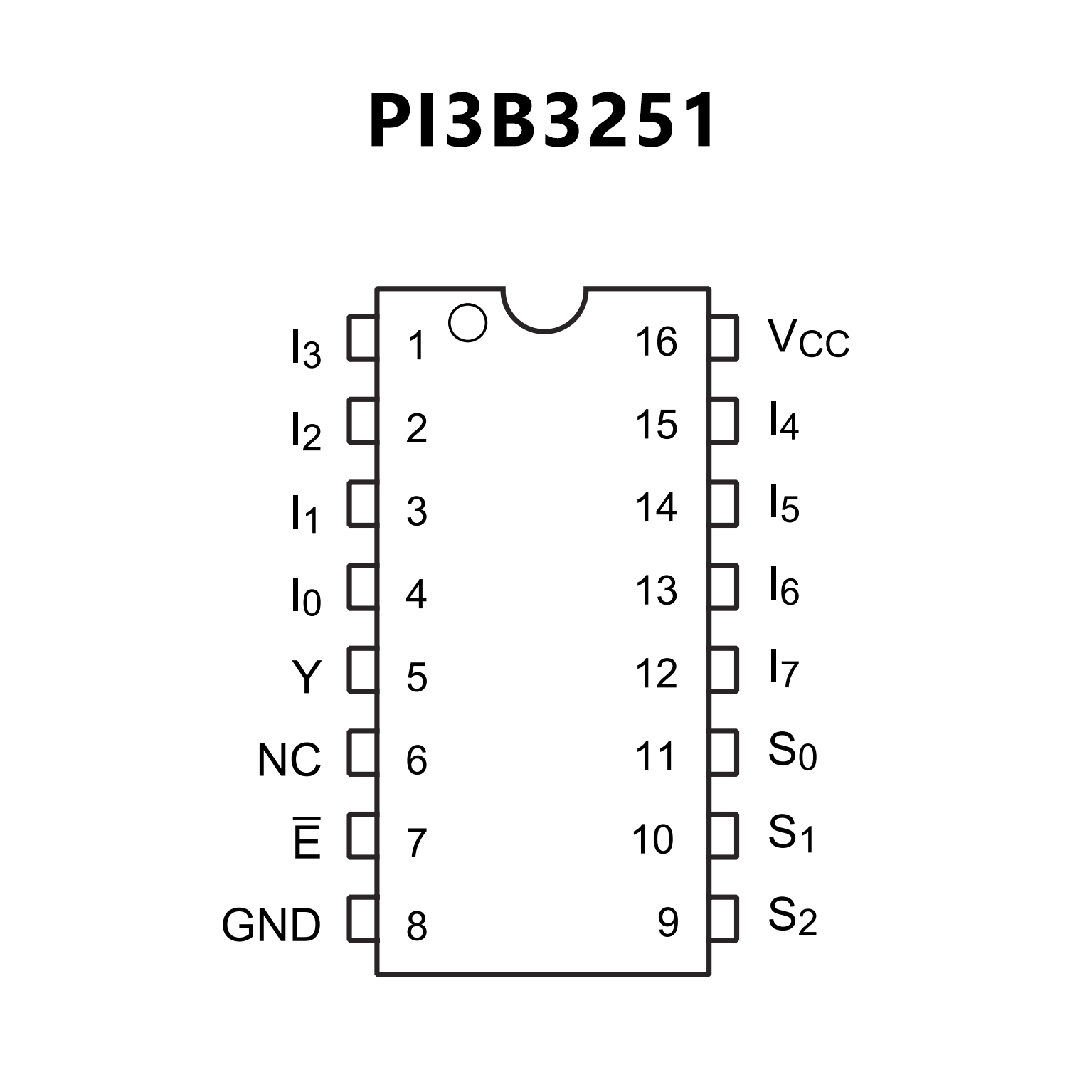

PIN CONFIGUTION
优势替代
FEATURES
• 5 Ω switch connection between two ports
• TTL-compatible input levels
• Minimal propagation delay through the switch
• ESD protection exceeds 2000V HBM per JESD22-A114,
200V MM per JESD22-A115 and 1000V CDM per
JESD22-C101
• Latch-up testing is done to JESDEC Standard JESD78
which exceeds 100 mA

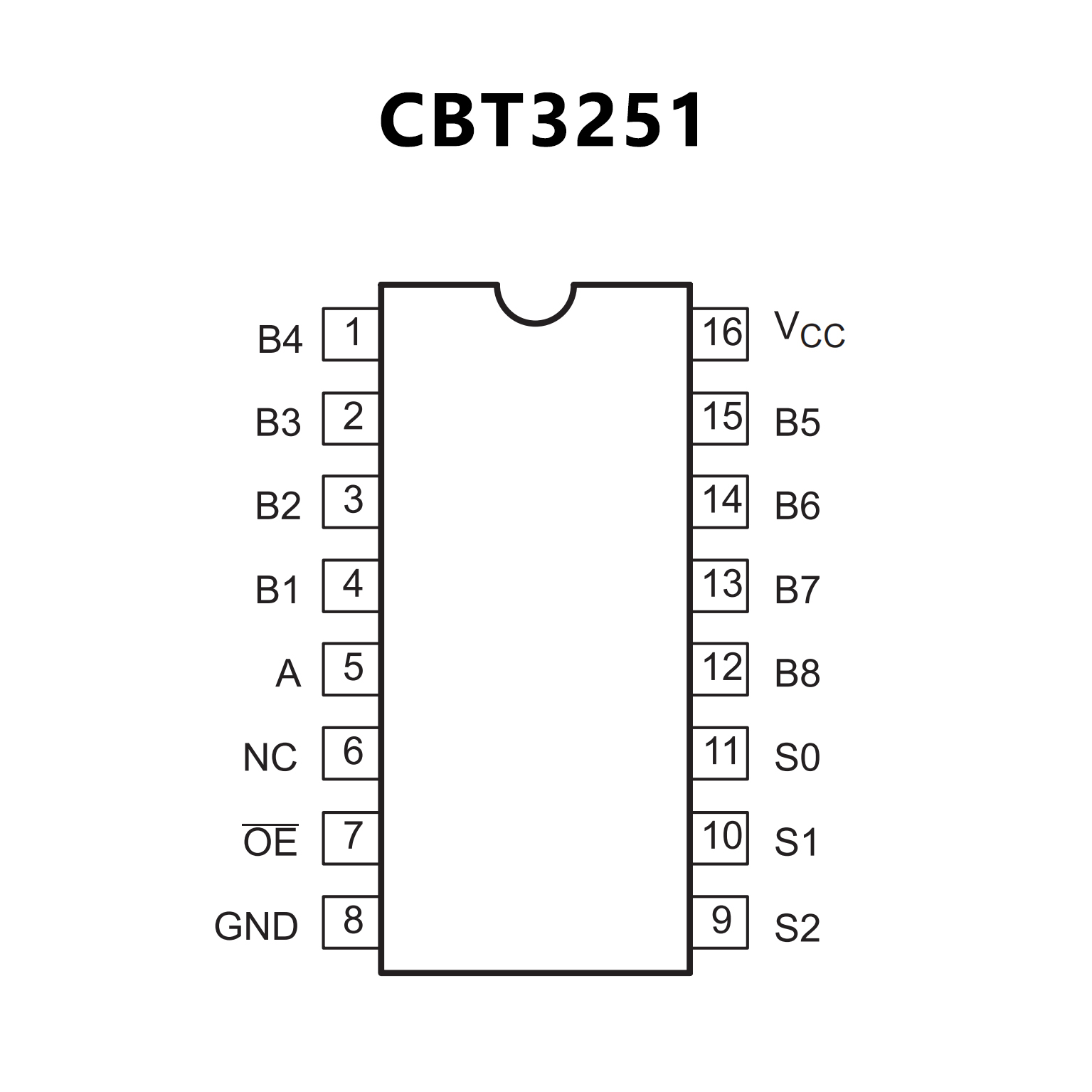

PIN CONFIGUTION
