3.3V, 8:1 Mux/DeMux NanoSwitch, PI3B3251 Replace SN74CBTLV3251.
PI3B3251
PI3B3251.pdf
PI3B3251.pdfFEATURES
• Near-Zero propagation delay
• 5Ω switches connect inputs to outputs
• Ultra Low Quiescent Power (0.1µA typical)
– Ideally suited for notebook applications
• Pin compatible with 74 series 251 logic devices
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaging (Pb-free & Green available):
– 16-pin 173-mil Wide (TSSOP)

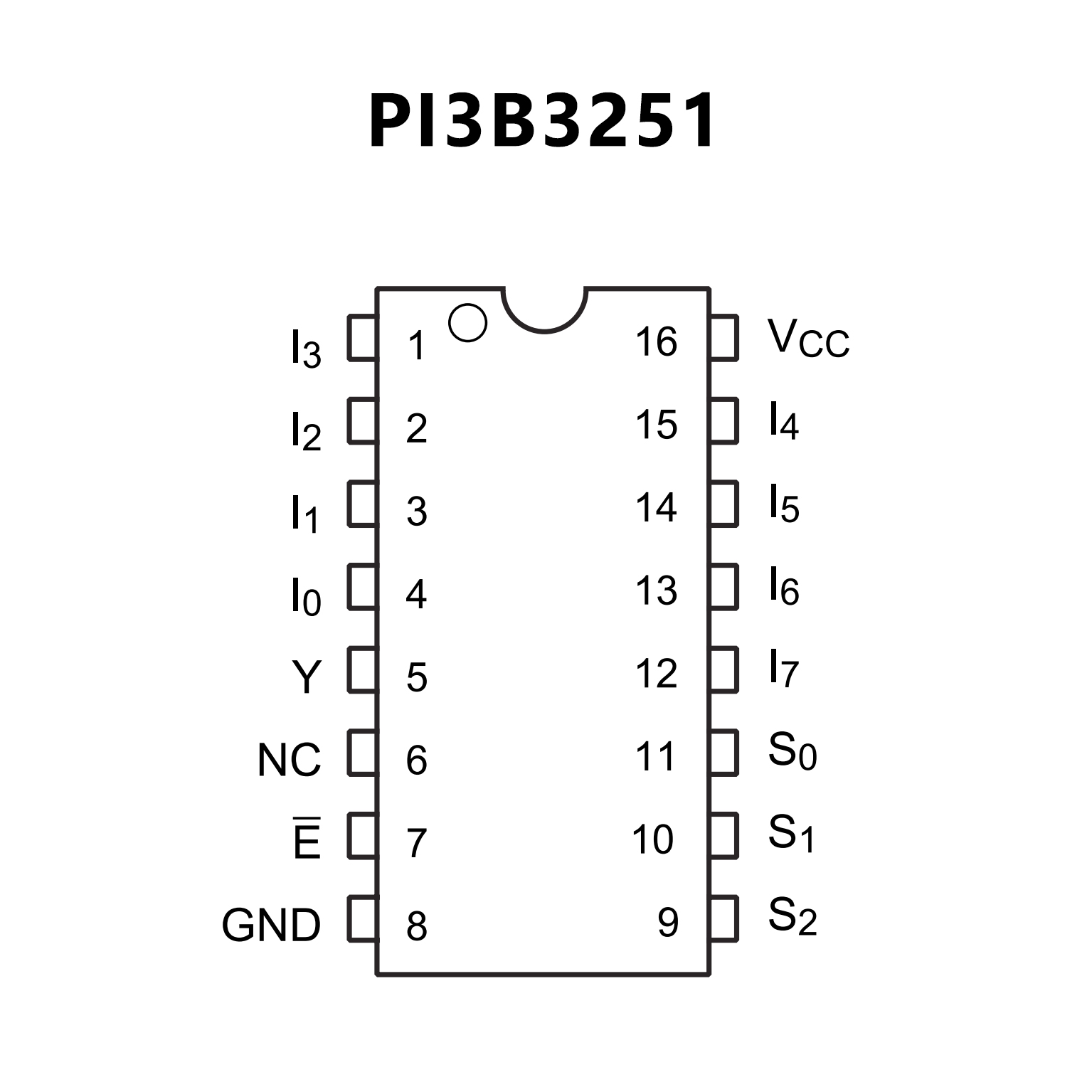

PIN CONFIGUTION
优势替代
FEATURES
• 5-Ω Switch Connection Between Two Ports
• Rail-to-Rail Switching on Data I/O Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100mA Per JESD78, Class II

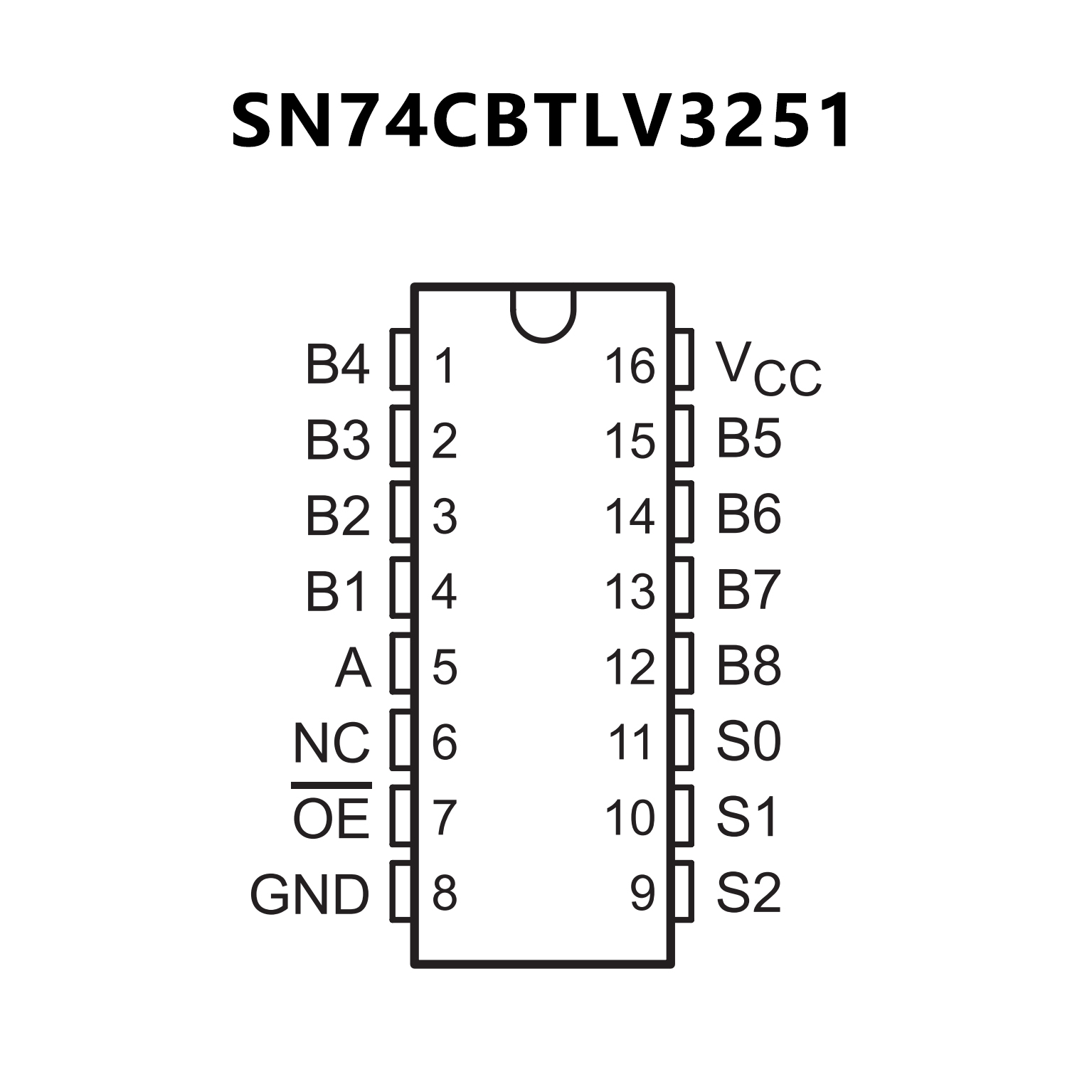

PIN CONFIGUTION
