3.3V, Dual 4:1 Mux/DeMux NanoSwitch, PI3B3253 Replace SN74CBTLV3253.
PI3B3253
PI3B3253.pdf
PI3B3253.pdfFEATURES
• Near-Zero Propagation Delay
• 5Ω Switches Connect Inputs to Outputs
• Fast Switching Speed: 5.2ns max.
• Ultra Low Quiescent Power (0.2µA Typical)
Ideally Suited for Notebook Applications
• Pin Compatible with 74 Series 253 Logic Devices
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaging (Pb-free & Green):
16-pin, QSOP (Q)
16-pin, TSSOP (L)
16-pin, UQFN (ZHD)

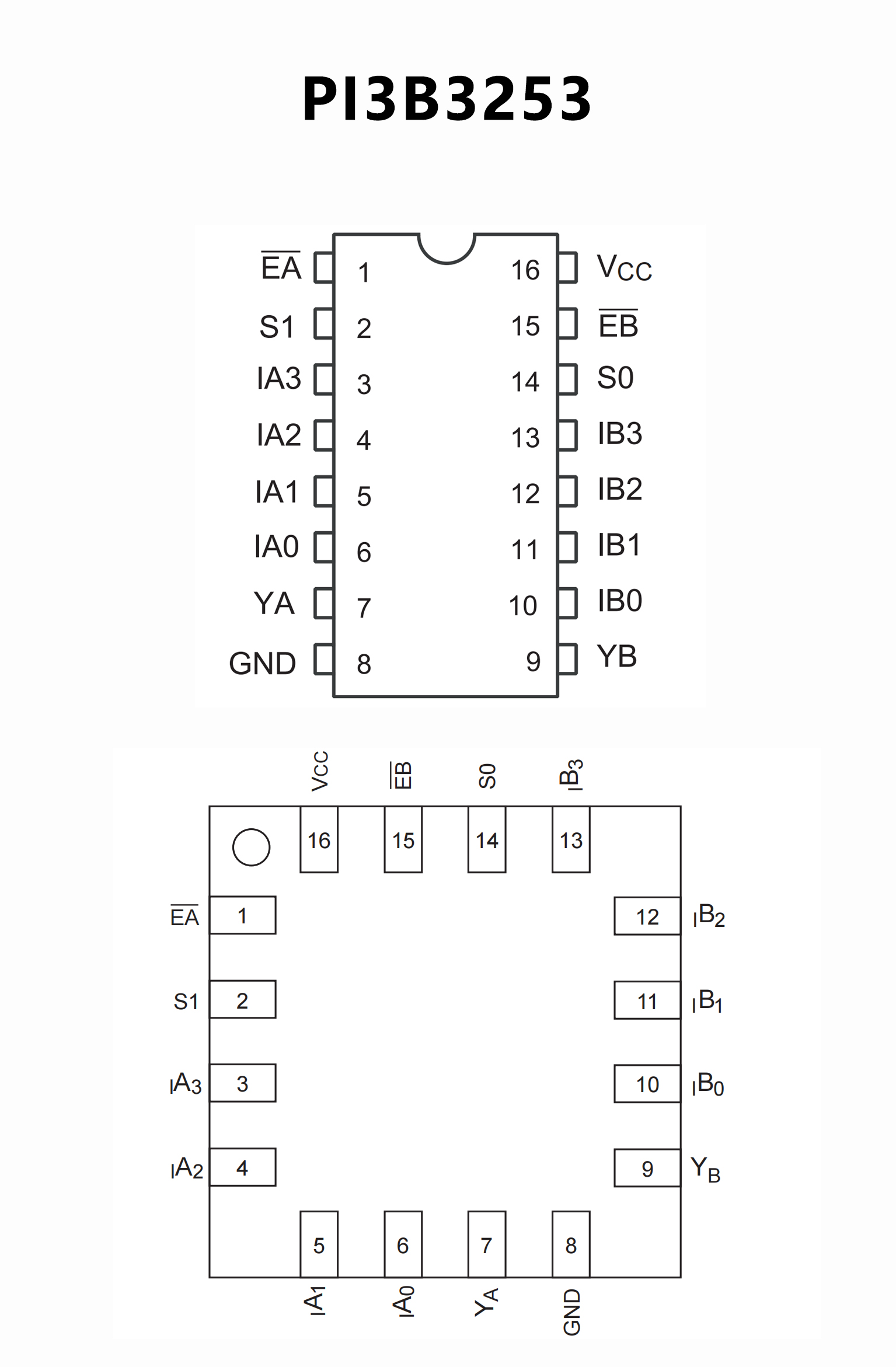

PIN CONFIGUTION
优势替代
FEATURES
• Functionally Equivalent to QS3253
• 5-Ω Switch Connection Between Two Ports
• Rail-to-Rail Switching on Data I/O Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100mA Per JESD78, Class II

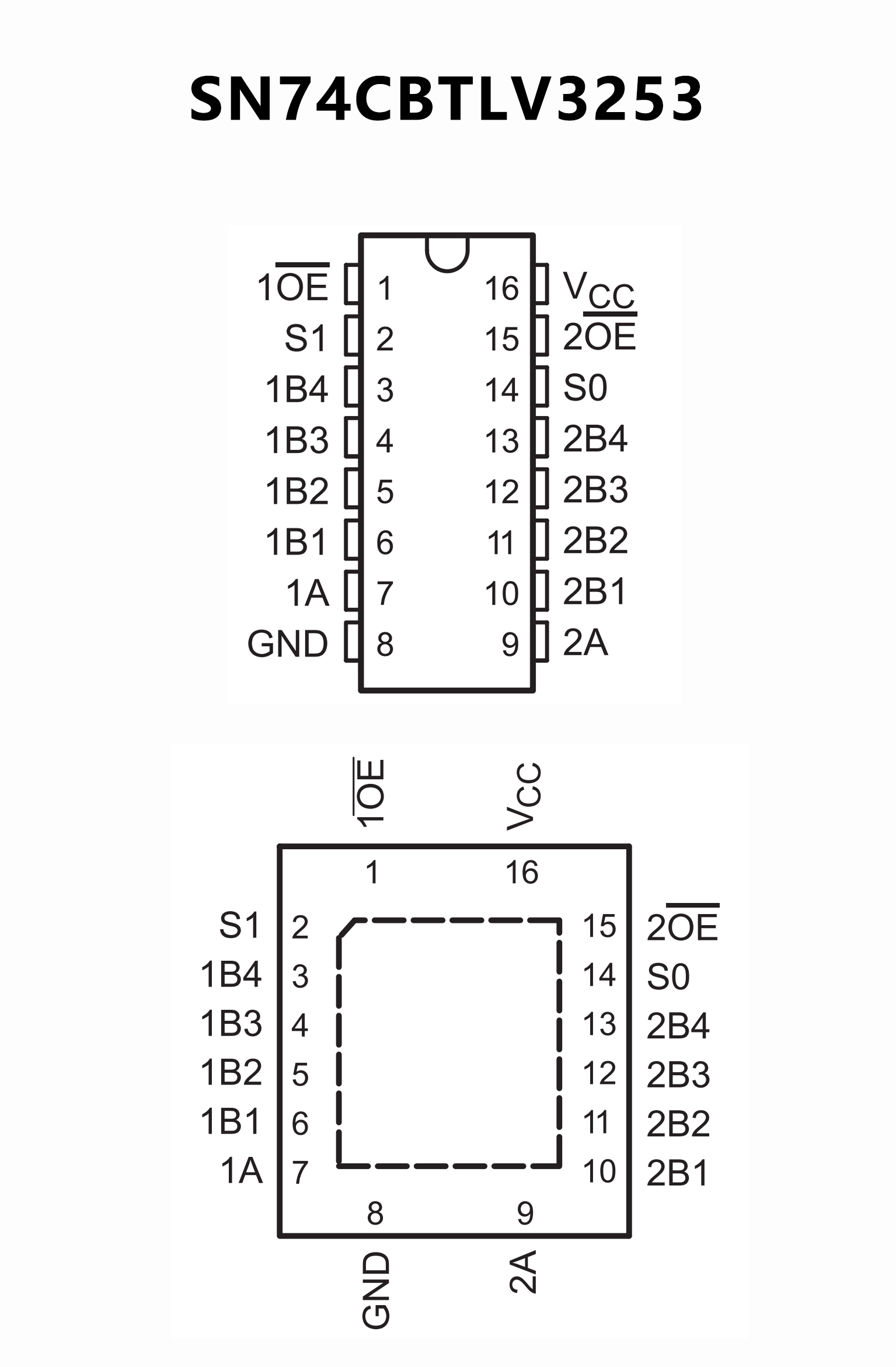

PIN CONFIGUTION
