3.3V, 10-Bit, 2-Port, NanoSwitch, PI3B3861 Replace SN74CBT3861.
PI3B3861
PI3B3861.pdf
PI3B3861.pdfFEATURES
• Near-Zero propagation delay
• 5-ohm switches connect inputs to outputs
• Fast Switching Speed: 4.5ns (max.)
• Ultra Low Quiescent Power (0.1μA typical)
Ideally suited for notebook applications
• Packaging (Pb-free & Green):
24-pin 150-mil wide plastic QSOP (Q)

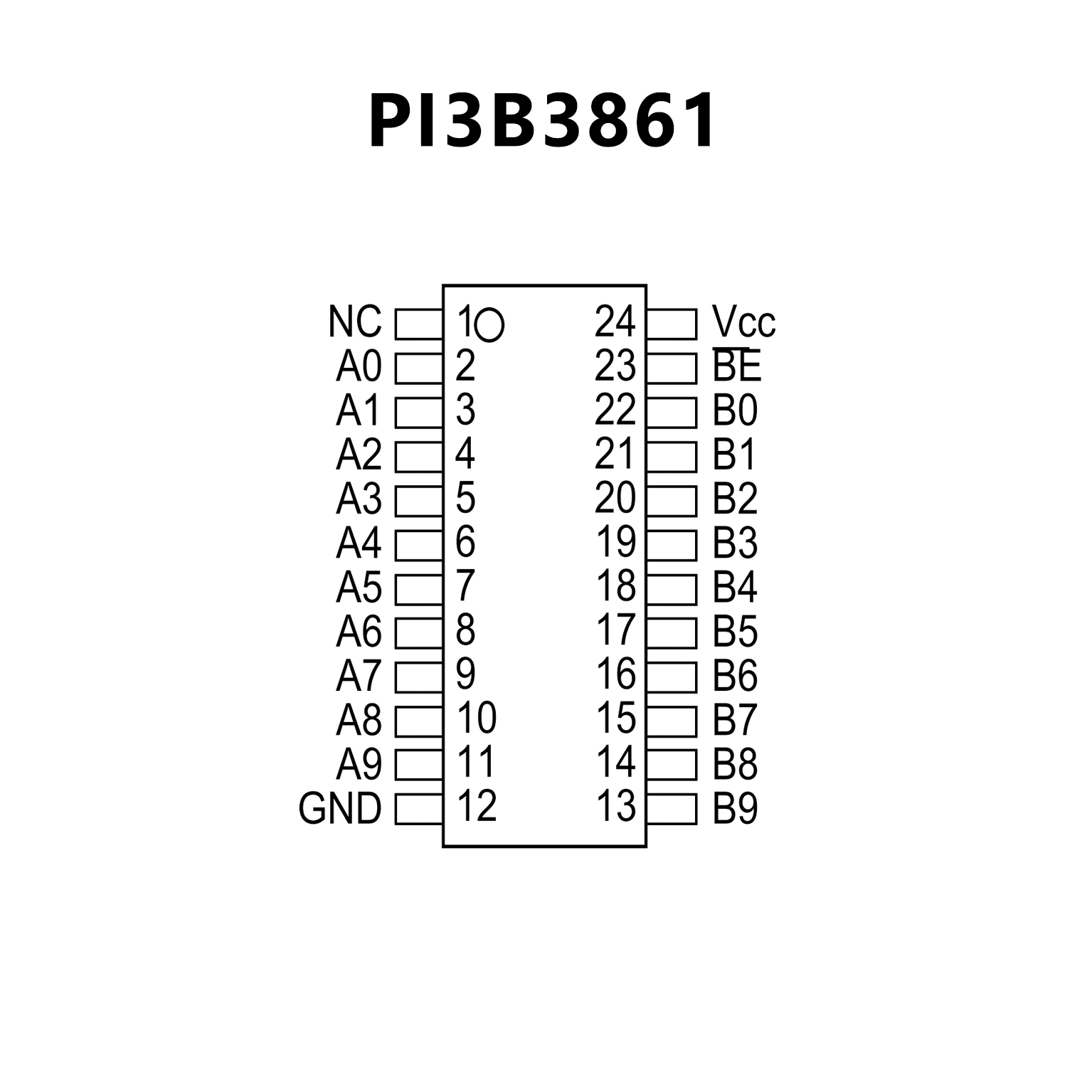

PIN CONFIGUTION
优势替代
FEATURES
• 5-Ω Switch Connection Between Two Ports
• TTL-Compatible Input Levels
• Latch-Up Performance Exceeds 250 mA Per
JESD 17

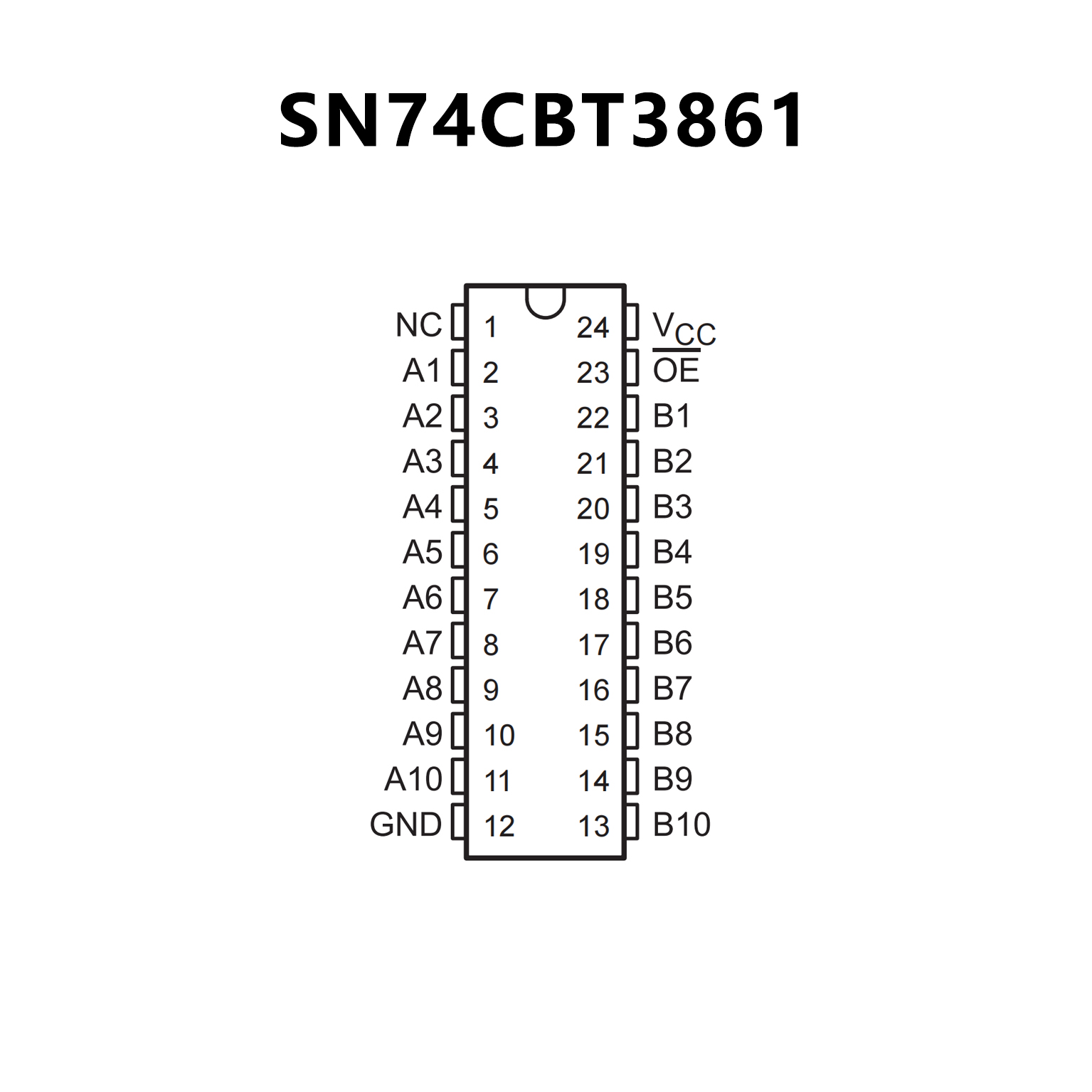

PIN CONFIGUTION
