• Near-Zero Propagation Delay

• 402 Switches Connect Inputs to Outputs

• High Signal Passing Bandwidth (5ooMHz)

  Beyond Rail-to-Rail Switching

  0 to 5V Switching with 3.3V Power Supply

  0 to 3.3V Switching with 2.5V Power Supply

  0 to 2.5V Switching with 1.8V Power Supply

• 5V I/O Tolerant with Supply in OFF and ON State

• 1.8V,2.5V and 3.3V Supply Voltage Operation

• Hot Insertion Capable

• Industrial Operating Temperature: -40C to +85C

• 8kV ESD Protection (Human Body Model)

• Latch-Up Performance: >20OmA per JESD17

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• For automotive applications requiring specific change

  control

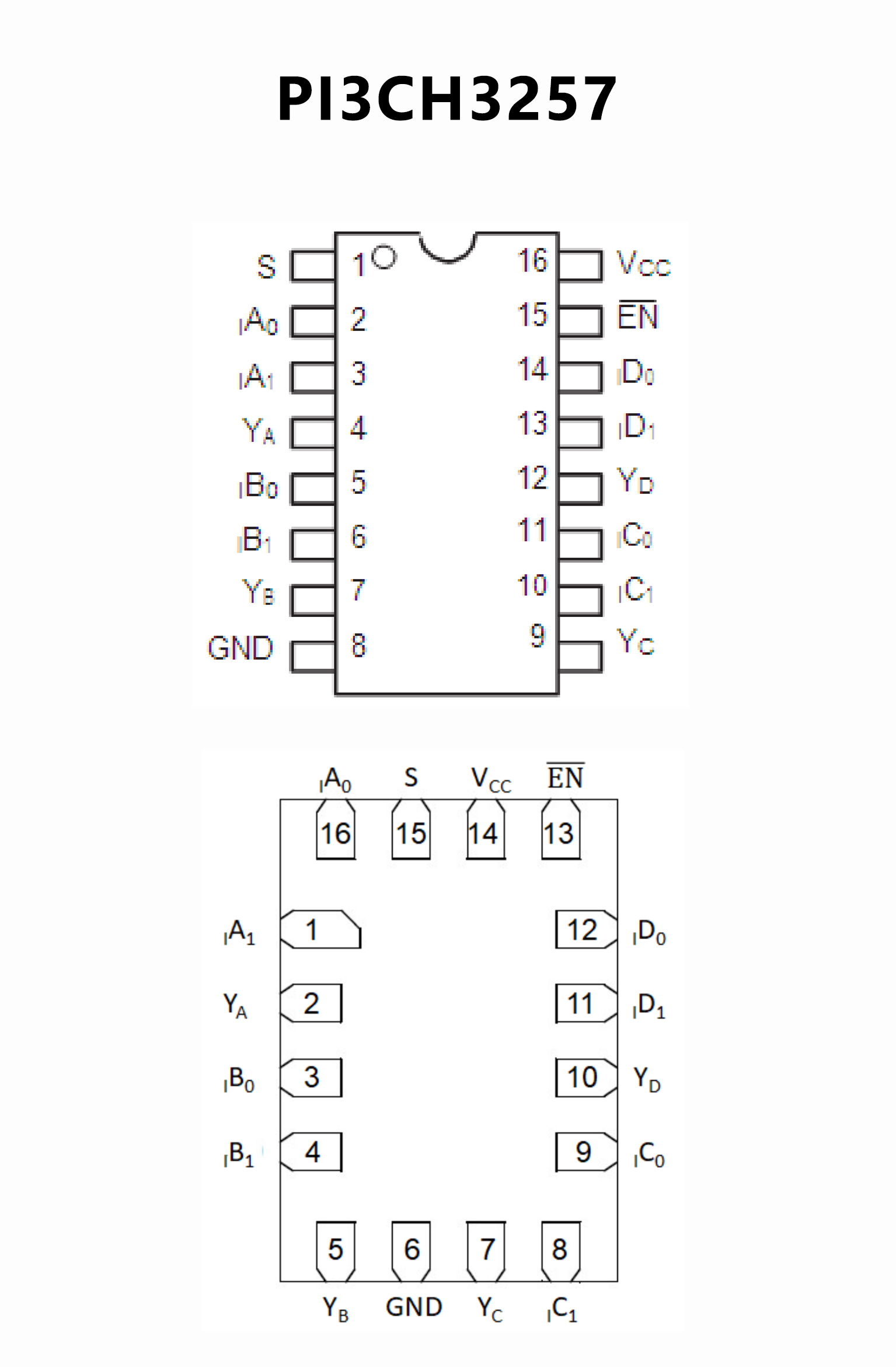

• Packaging (Pb-free & Green available):

  16-pin, 173-mil Wide Plastic, TSSOP (L)

  16-pin, 150-mil Wide Plastic, QSOP (Q)

  16-pin, 1.8x2.6mm, UQFN (ZTA)
