3.3V High Speed 2 : 4 Differential Mux/Demux, PI3DBS3224 Replace TS3DS10224.
PI3DBS3224
PI3DBS3224.pdf
PI3DBS3224.pdfFEATURES
• 2:4 Differential Multiplexer/Demultiplexer
• Bidirectional Operation
• Can be used in
Single 1:4 Configuration
Dual 1:2 Configuration
Fan out 1:2 Configuration
• High BW (1.2 GHz Typ)
• Low RON and CON:
13 Ω RON Typ
9 pF CON Typ
• ESD Performance (I/O Pins)
±8-kV Contact Discharge (IEC61000-4-2)
2-kV Human Body Model per JESD22-A114E (to GND)
• ESD Performance (All Pins)
2-kV Human Body Model per JESD22-A114E
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Package: 20-pin (TQFN) (3 x 3 mm, 0.4 mm pitch)

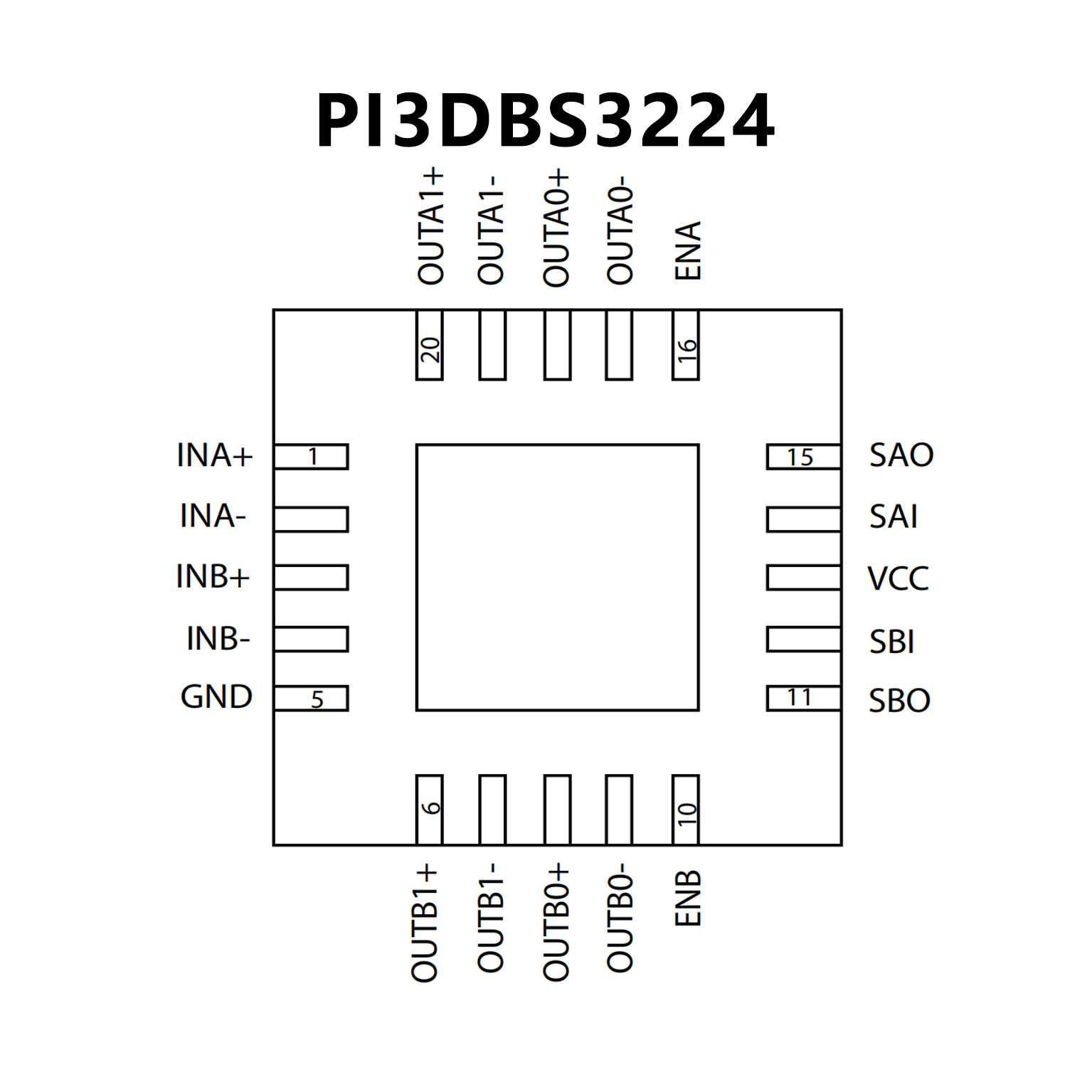

PIN CONFIGUTION
优势替代
FEATURES
• Can be configured for
– Differential Crosspoint Switching
– Differential Single Channel 1:4 Multiplexer and
Demultiplexer
– Differential 2-Channel 1:2 Multiplexer and
Demultiplexer
– Differential Fan-Out of Signal Pair to Two Ports
Simultaneously
• Bidirectional Operation
• Fail-Safe Protection: IOFF Protection Prevents
Current Leakage in Powered-Down State (VCC = 0 V)
• High BW (1.2 GHz Typical)
• Low RON and CON:
– 13-Ω RON Typical
– 9-pF CON Typical
• ESD Performance (I/O Pins)
– ±8-kV Contact Discharge (IEC61000-4-2)
– 2-kV Human-Body Model per JESD22-A114E (to GND)
• ESD Performance (All Pins)
– 2-kV Human-Body Model per JESD22-A114E
• Small WQFN package (3.00 mm × 3.00 mm, 0.4-mm pitch)

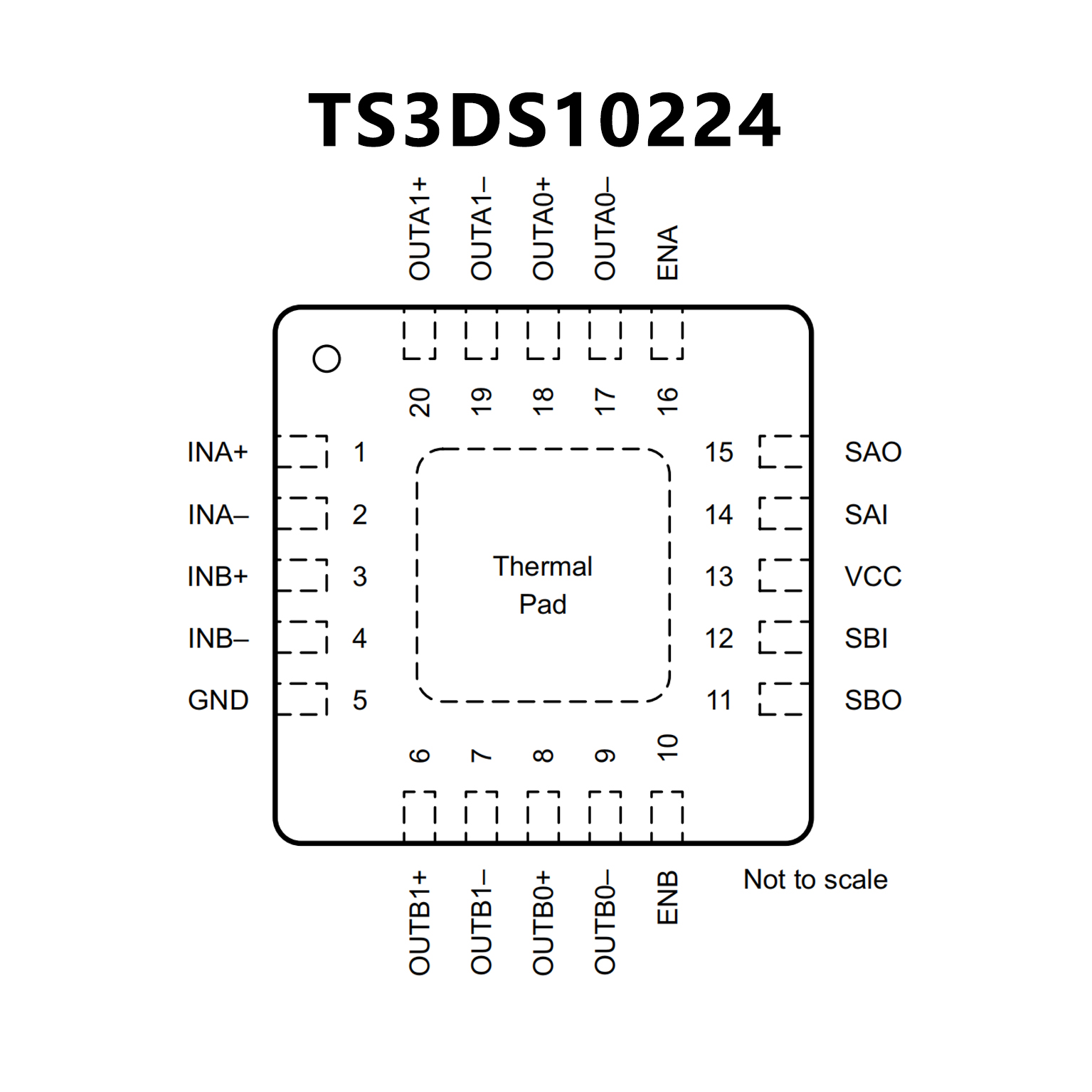

PIN CONFIGUTION
