High-Speed USB 2.0 (480 Mbps) 1-Port Switch with Full Power Down Feature, PI3USB32 Replace FSUSB31.
PI3USB32
PI3USB32.pdf
PI3USB32.pdfFEATURES
• VDD Operation at 2.8V and 4.3V
• 1.8V Compatible Control-Pin Inputs
• IOFF Supports Full Power-Down Mode Operation
• ron = 6Ω Typical
• Dron <0.35Ω Typical
• Cio(ON) = 5pF Typical
• Low Power Consumption
• ESD Performance
7kV Human-Body Model, per JESD22 spec (A114-B, Class II)
1000-V Charged-Device Model (C101)
±4kV contact, per IEC61000-4-2
• Wide –3-dB Bandwidth = 2110 MHz Typical
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaged in 8-Lead TLLGA (1.5 mm x 1.5 mm)

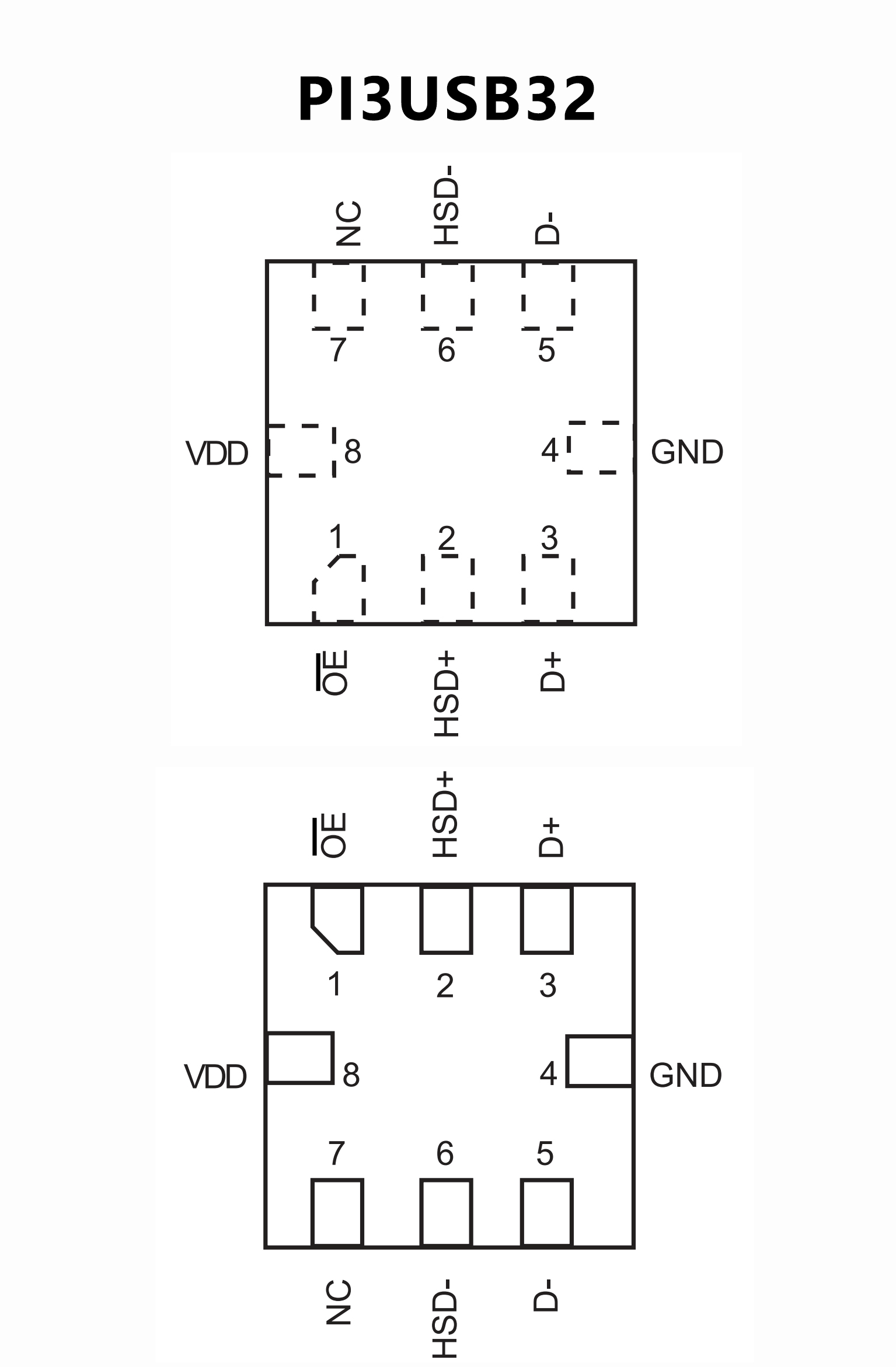

PIN CONFIGUTION
优势替代
FEATURES
• Low On Capacitance: 3.7pF (Typical)
• Low On Resistance: 6.5Ω (Typical)
• Low Power Consumption: 1µA (Maximum)
10µA Maximum ICCT Over an Expanded Control
Voltage Range: VIN = 2.6V, VCC = 4.3V
• Wide -3dB Bandwidth: > 720MHz
• 8kV I/O to GND ESD Protection
• Power-off Protection When VCC = 0V, D+/D- Pins Can
Tolerate up to 5.5V
• Packaged in:
8-lead MicroPakô (1.6 x 1.6mm)
8-lead US8
8-lead Ultrathin MLP (1.2 x 1.4mm)

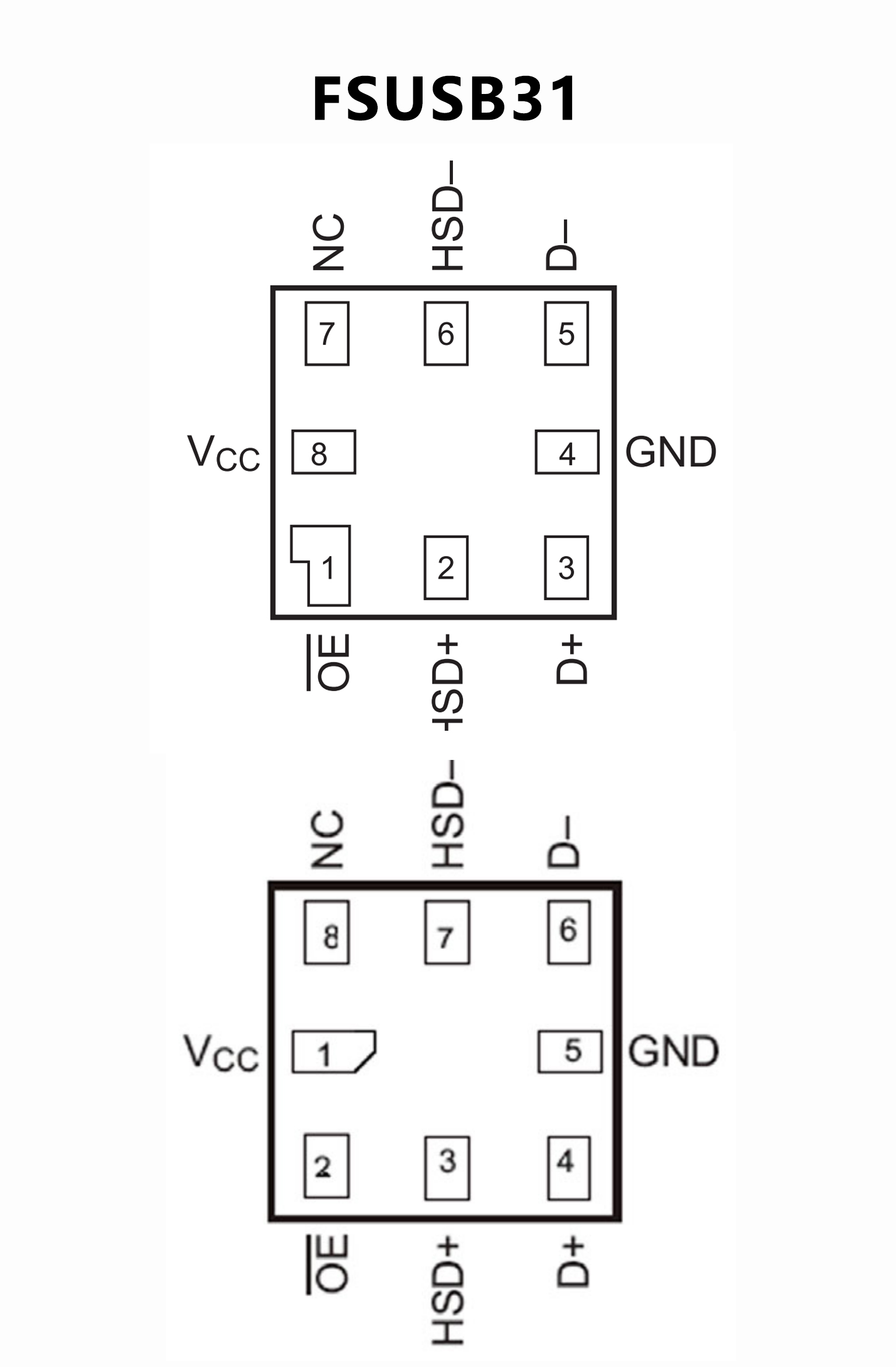

PIN CONFIGUTION
