PI3USB42.pdf• USB 2.0 compliant (high speed and full speed)
• Ron is 4.0Ω typical @ Vpp = 3.0V
• Low bit-to-bit skew
• Low Crosstalk:-41dB @ 240 MHz
• Off Isolation:-37dB @ 240 MHz
• Wide -3db bandwidth: 770MHz
• Near-Zero propagation delay: 250ps
• Support for 1.8V/2.5V/3.3V Logic on Control pins
• Channel On Capacitance: 6.0pF
• VDD Operating Range: 1.8V to 4.5V
• Data pin I/O ESD: >8kV HBM protection per JESD22-
Al14D specification
• I/O pins have over-voltage protection and can tolerate a
shortto Vbus
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Gren” Device (Note 3)
• For automotive applications requiring specific change
control

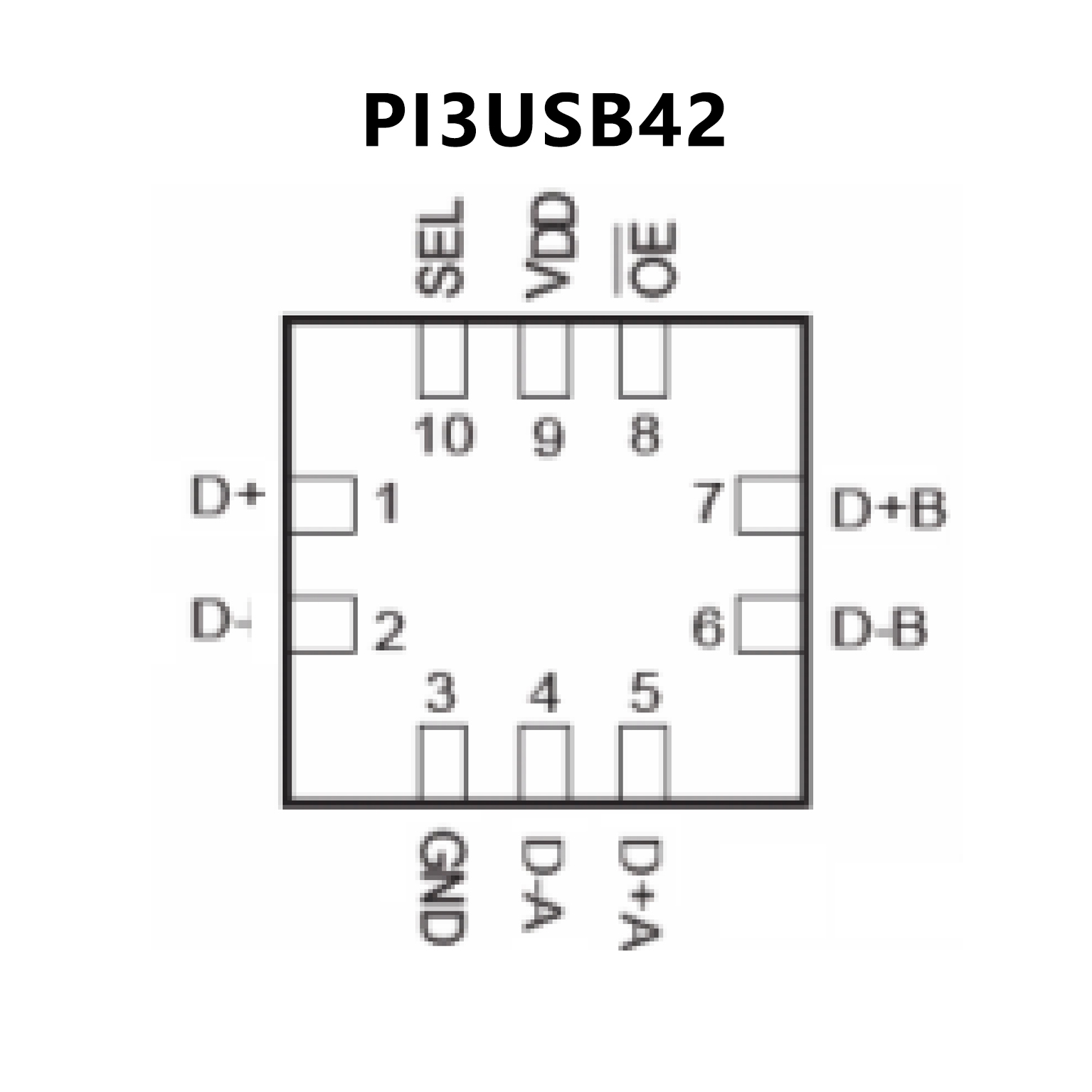

• Packaging (Pb-free & Green): 10-pin UQFN (ZM10)
• VCC Operation at 3 V and 4.3 V
• 1.8-V Compatible Control-Pin Inputs
• IOFF Supports Partial Power-Down-Mode Operation
• Ron = 10 Ω Maximum
ΔRon <0.35 Ω Typical
• Cio(ON) = 7 pF Typical
• Low Power Consumption (1 μA Maximum)
• ESD Performance Tested Per JESD 22
6000-V Human Body Model (HBM)
(A114-B, Class II)
1000-V Charged-Device Model (C101)
250-V Machine Model (A115-A)
• –3-dB Bandwidth = 955 MHz Typical

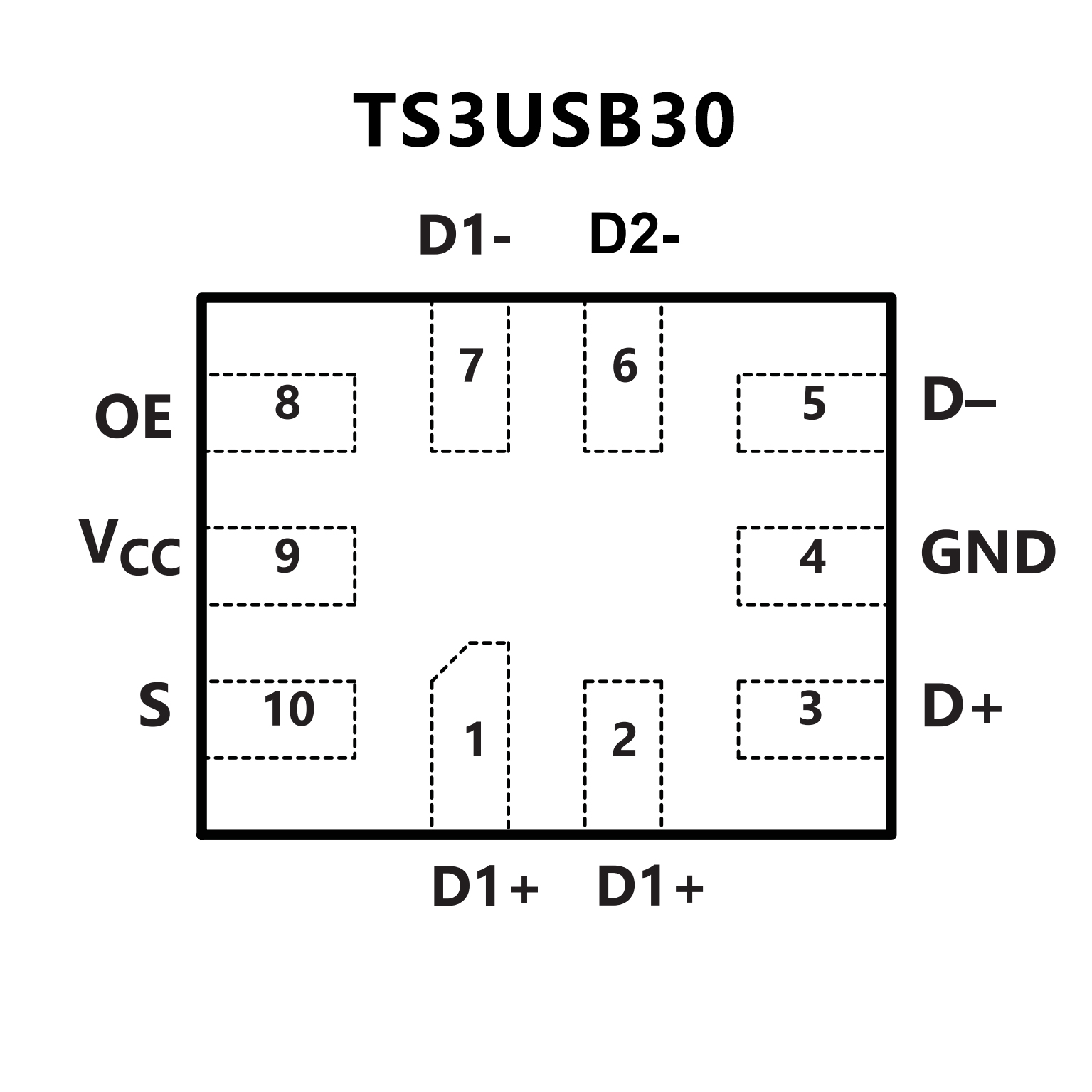

• Packaged in 10-pin UQFN (1.4 mm × 1.8 mm)
