140Mb/s Bi-directional Level Translator for Push-Pull Applications, PI4ULS3V304 Replace FXLA0104.
PI4ULS3V304
PI4ULS3V304.pdf
PI4ULS3V304.pdfFEATURES
• 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port
• VCCA may be greater than, equal to, or less than VCCB
• High-Speed with 140 Mb/s Guaranteed Date Rate
• 100 pF Capacitive Drive Capability
• Low Bit-to-Bit Skew
• Overvoltage Tolerant Enable and I/O Pins
• Non-preferential Power-Up Sequencing
• Power-Off Protection
• Package: UQFN1.7x2.0-12L

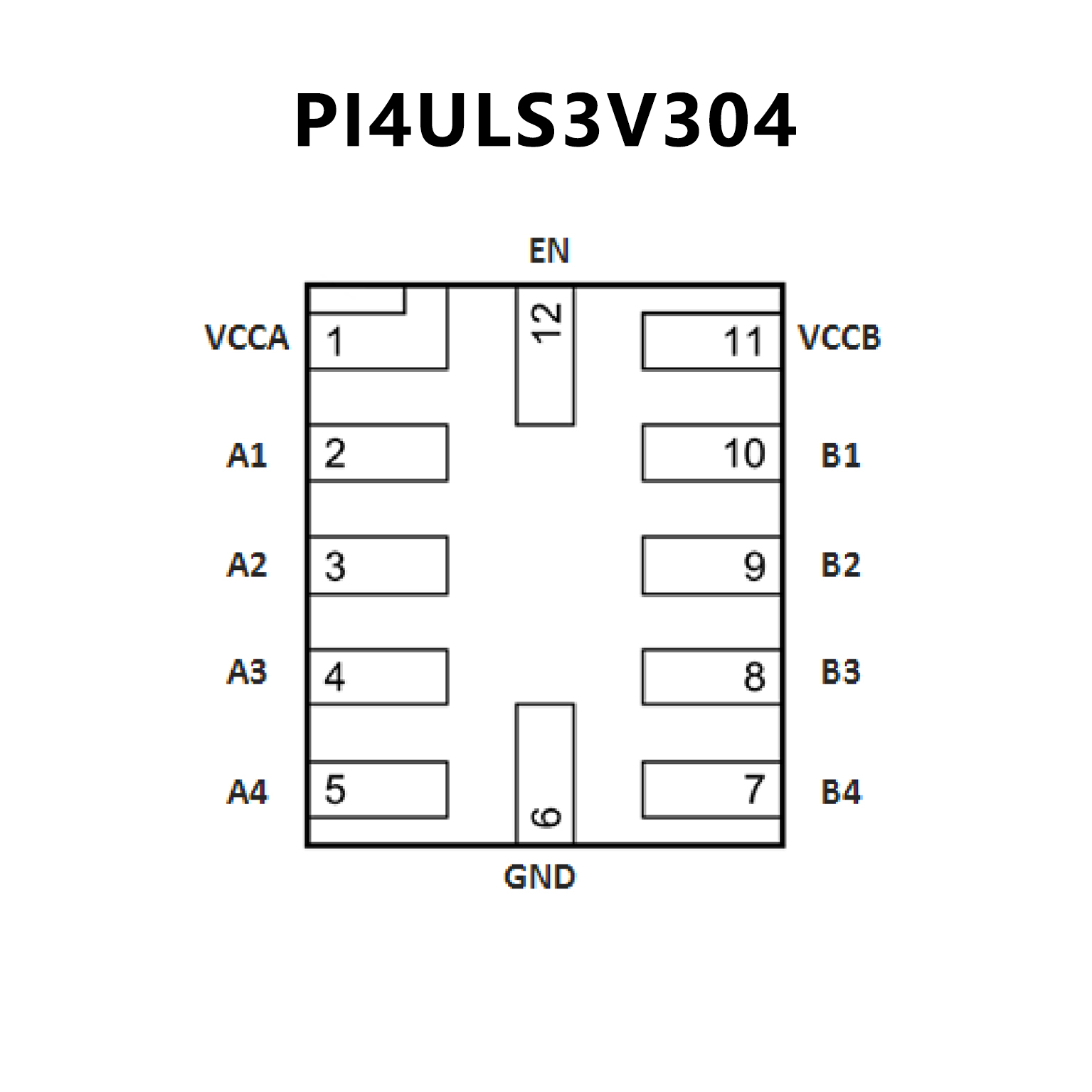

PIN CONFIGUTION
优势替代
FEATURES
• Bi−Directional Interface between Two Levels: from
1.1V to 3.6V
• Fully Configurable: Inputs and Outputs Track VCC
• Non−Preferential Power−Up; Either VCC May Be
Powered Up First
• Outputs Switch to 3−State if Either VCC is at GND
• Power−Off Protection
• Bus−Hold on Data Inputs Eliminates the Need for Pull−Up
Resistors; Do Not Use Pull−Up Resistors on A or B Ports
• Control Input (OE) Referenced to VCCA Voltage
• Available in the 12−Lead, 1.7 mm x 2.0 mm UMLP Package
• Direction Control Not Necessary
• 100 Mbps Throughput when Translating Between 1.8 V
and 2.5 V
• ESD Protection Exceeds:
6 kV HBM (per JESD22−A114 & Mil Std 883e 3015.7)
2 kV CDM (per ESD STM 5.3)

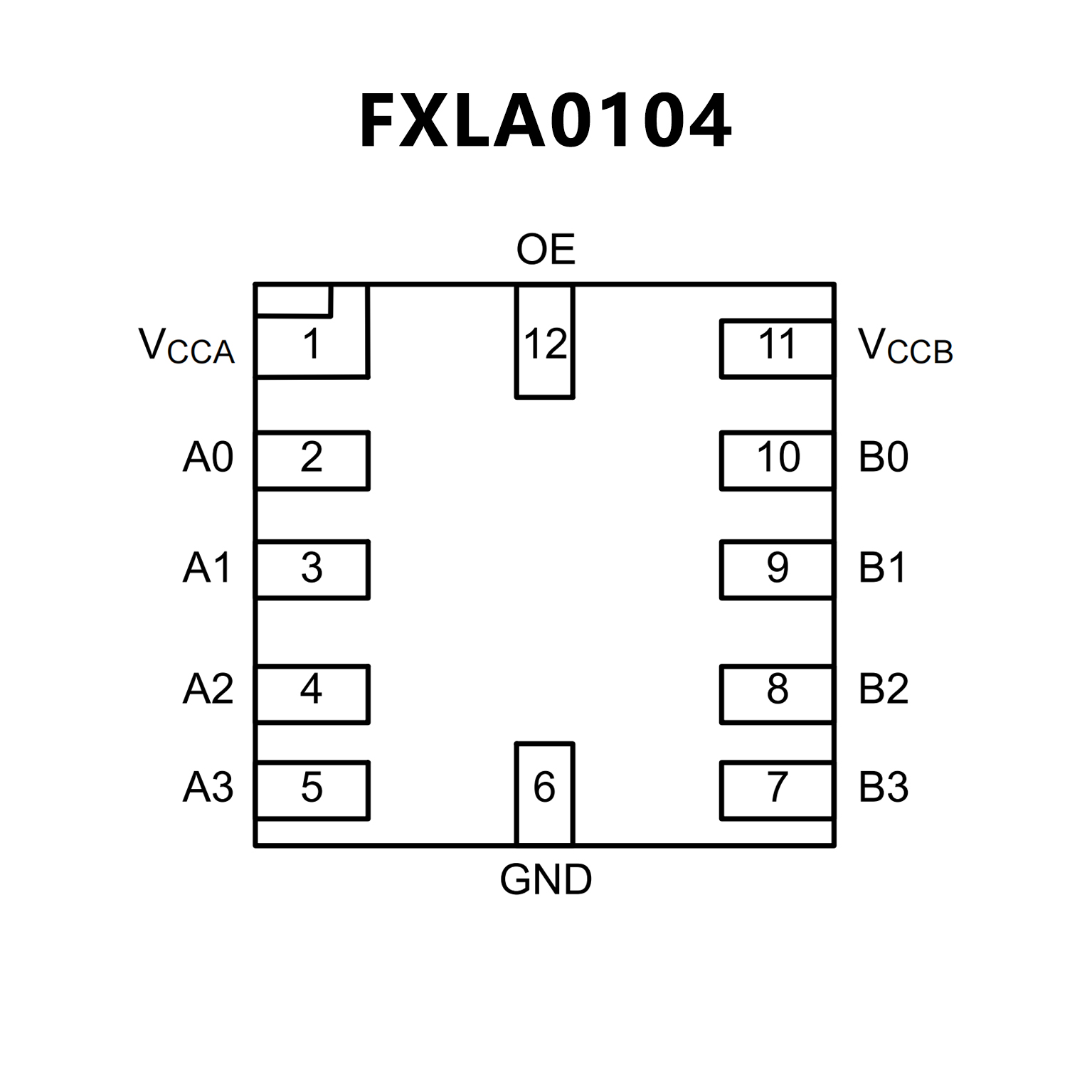

PIN CONFIGUTION
