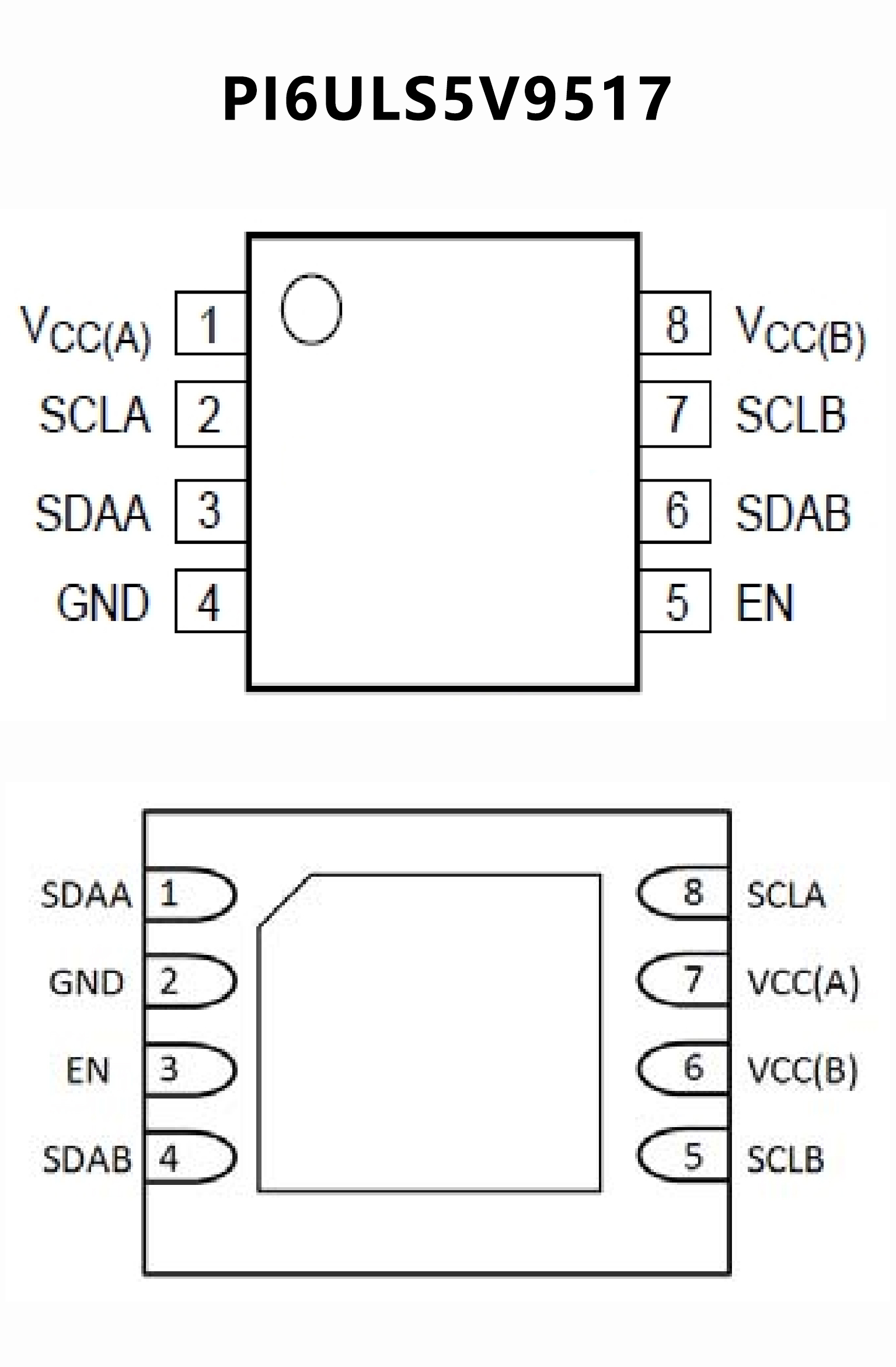

PI6ULS5V9517.pdf• 2 channel, bidirectional buffer
• Package: MSOP-8L, SOIC-8L and DFN2x3-8L,
UQFN1.6x1.6-8L
• Two-Channel Bidirectional Buffer
• I2C Bus and SMBus Compatible
• Operating Supply Voltage Range of 0.9 V to 5.5 V
on A Side
• Operating Supply Voltage Range of 2.7 V to 5.5 V
on B Side
• Voltage-Level Translation From 0.9 V to 5.5 V and
2.7 V to 5.5 V

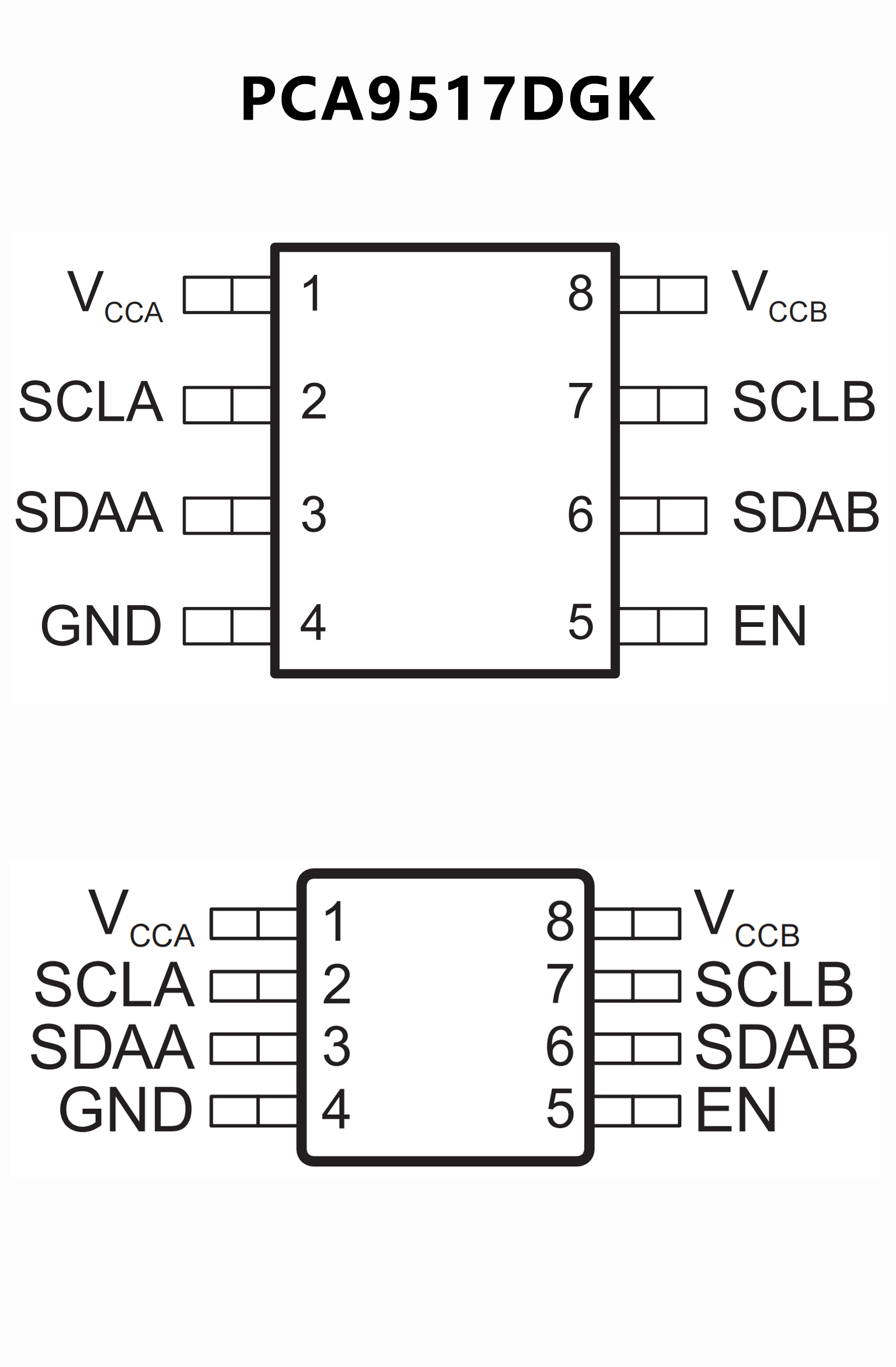

• Footprint and Function Replacement for PCA9515A
• Active-High Repeater-Enable Input Open-Drain I²C VO
• 5.5-V Tolerant I²C and Enable Input Support Mixed-Mode
Signal Operation
• Lockup-Free Operation
• Accommodates Standard Mode and Fast Mode I2C Devices
and Multiple Masters
• Powered-Off High-Impedance I2C Pins 400-kHz Fast I²C Bus
• Latch-Up Performance Exceeds 100mA Per JESD78, Class Il
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
