ESD-Protected, Low Capacitance, 2-Channel, 2:1 Switch, With Powered-off Protection, PSMUX154 P2P TMUX154E.
PSMUX154
PSMUX154.pdf
PSMUX154.pdfFEATURES
• CMOS Technology for Bus and Analog Applications
• Low On-Resistance: 4.3Ω @VDD = 3.0V
• Wide VDD Range: 1.8V to 4.3V
• Rail-to-Rail Signal Range
• High Off Isolation: -80dB @ 1MHz
• Crosstalk Rejection Reduces Signal Distortion: -90dB @
1MHz
• Wide -3dB Bandwidth: 850MHz
• Near-Zero propagation delay: 250ps
• Support for 1.8V/2.5V/3.3V Logic on Control pins
• Channel On Capacitance: 6.0pF
• Extended Industrial Temperature Range: -40°C to 85°C
• ESD protection : 8kV(HBM)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaging (Pb-free & Green):10-pin UQFN (ZM),
1.4mmx1.8mm

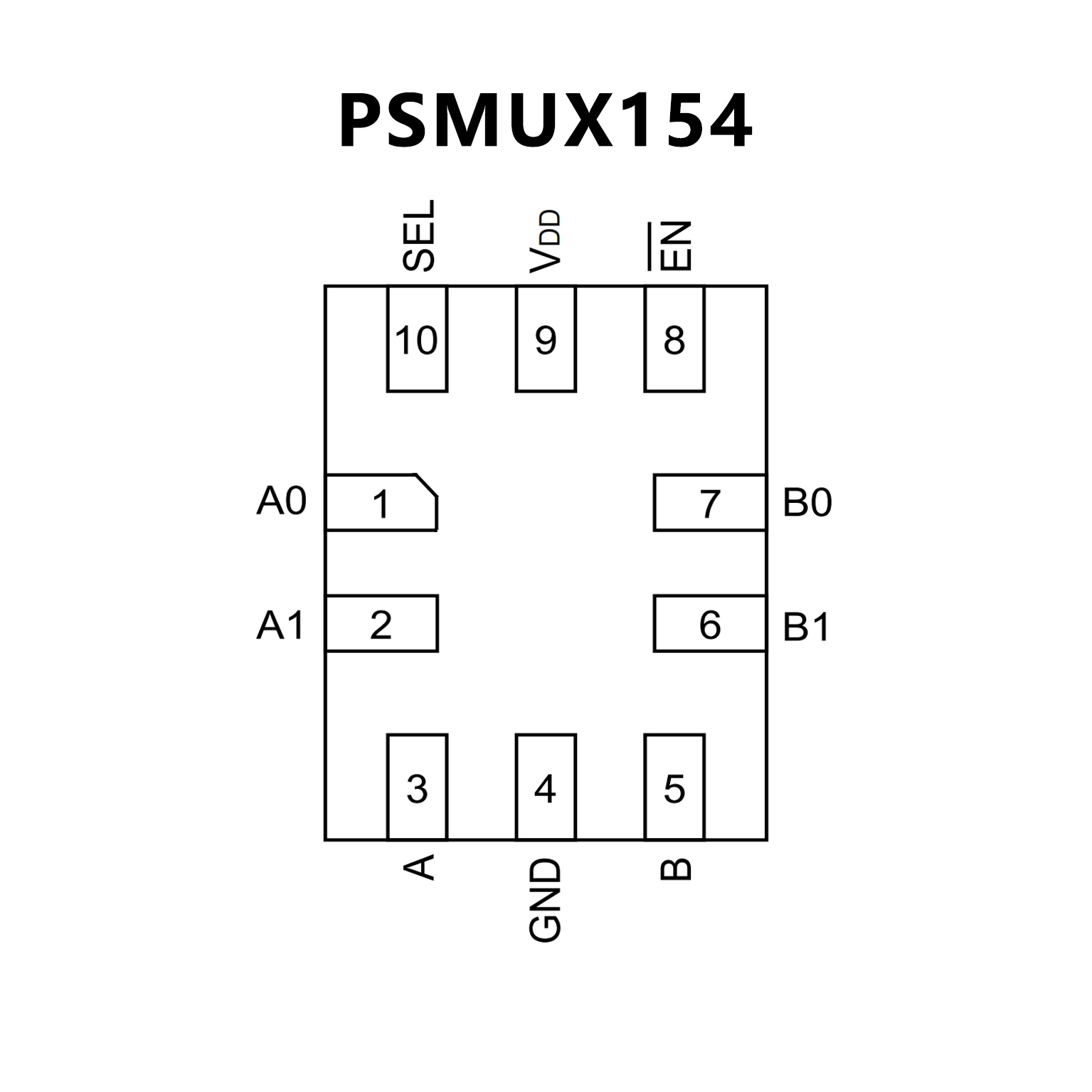

PIN CONFIGUTION
优势替代
FEATURES
• VCC Operation at 3 V to 4.3 V
• I/O Pins Can Tolerate up to 5.25 V
• 1.8-V Compatible Control Logic
• Supports Powered-off Protection I/O Pins Hi-Z
When VCC = 0 V
• RON = 10 Ω Maximum
• ΔRON = 0.35 Ω Typical
• Cio(ON) = 7.5 pF Typical
• Low Power Consumption (1 uA Maximum)
• –3-dB Bandwidth = 900 MHz Typical
• Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II (1)
• ESD Performance Tested Per JESD 22
– 8000-V Human-Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)
• ESD Performance I/O Port to GND (2)
– 15000-V Human-Body Model

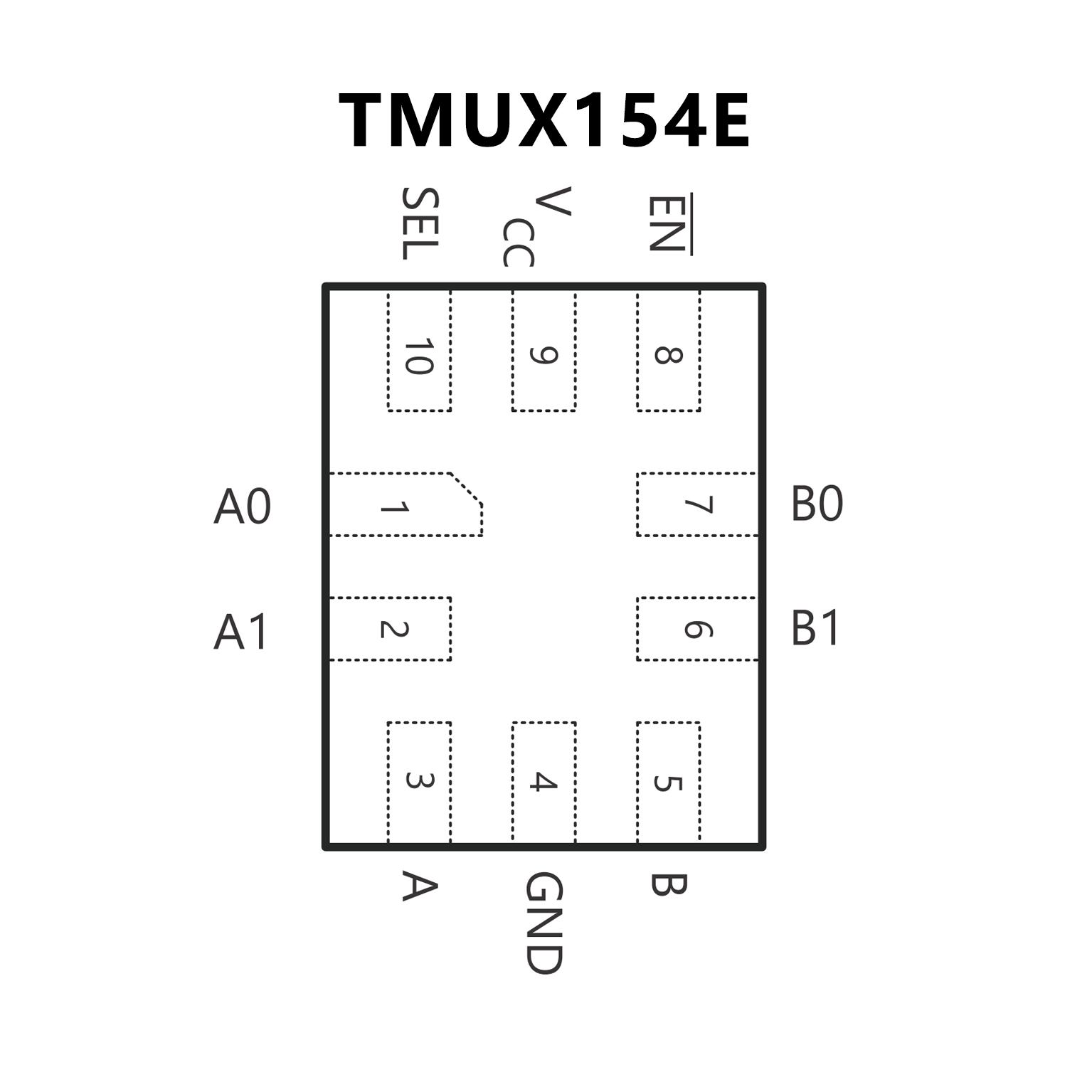

PIN CONFIGUTION
