2.7V 14V Vin, 30W Fully Integrated Synchronous Boost Converter, SCT12A0 Replace SGM6610.
SCT12A0
SCT12A0.pdf
SCT12A0.pdfFEATURES
• Wide Input Voltage Range: 2.7V-14.0V
• Wide Output Voltage Range: 4.5V-14.6V
• Fully Integrated High-side/Low-side Power
MOSFETs：13mΩ/11mΩ
• Up to 12A Switch Current and Programmable
Peak Current Limit
• Typical Shut-down Current: 1uA
• Programmable Switching Frequency: 200kHz-
2.2MHz
• Output Overvoltage Protection at 15.4V
• Feedback Overvoltage Protection at 110% of
Reference Voltage
• Selectable PFM or Forced PWM Mode
• Programmable Soft Start
• Thermal Shutdown Protection: 150°C
• Available in DFN-20 3.5mmx4.5mm Package

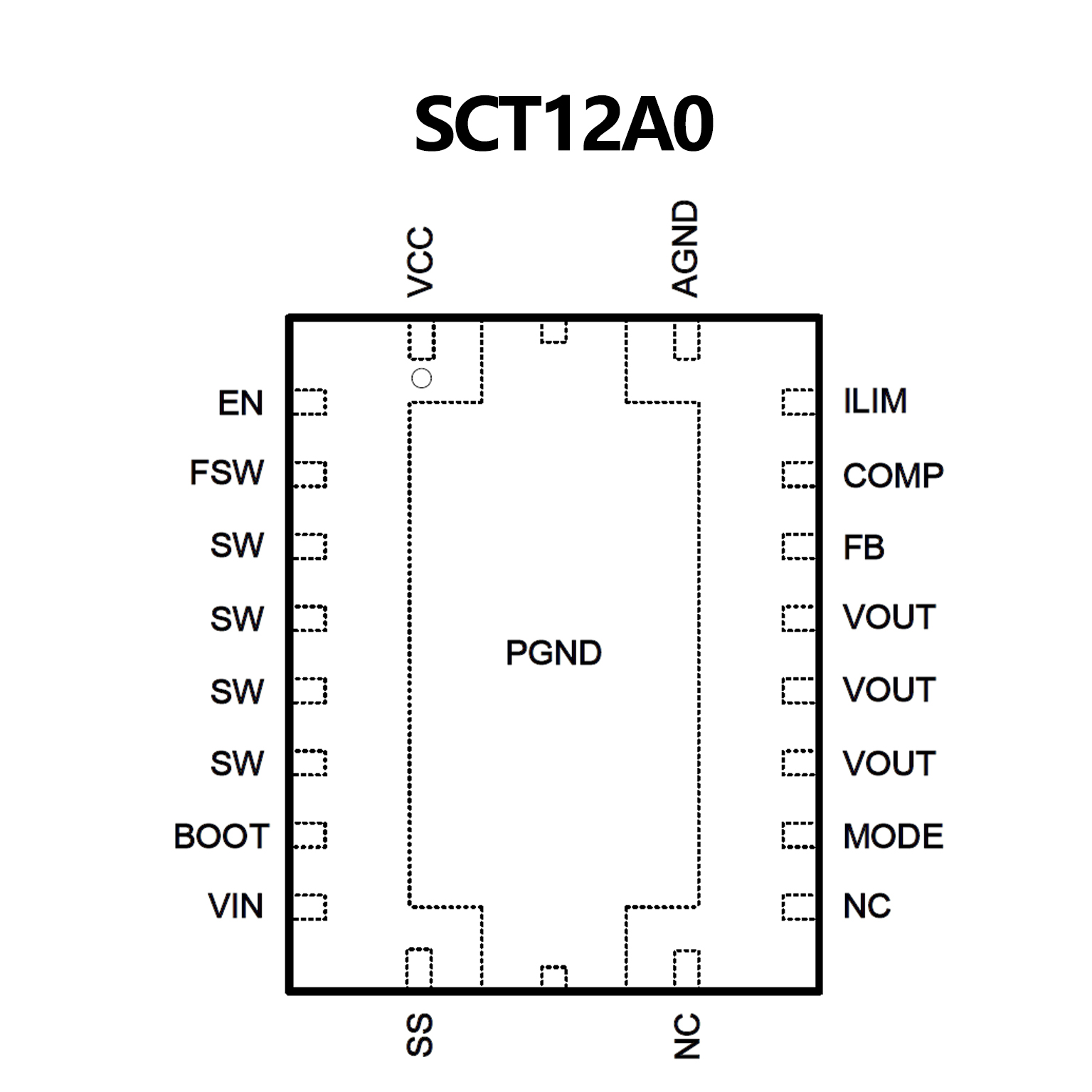

PIN CONFIGUTION
优势替代
FEATURES
• Input Voltage Range: 2.7V to 12V
• Output Voltage Range: 4.5V to 12.6V
• 10A Switch Current
• Up to 91% Efficiency at VIN = 3.3V, VOUT = 9V
and IOUT = 3A
• Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
• 1μA Current into VIN Pin during Shutdown
• Resistor-Programmable Switch Peak Current Limit
• Adjustable Switching Frequency: 200kHz to 2.2MHz
• Programmable Soft-Start
• Output Over-Voltage Protection at 13.2V
• Cycle-by-Cycle Over-Current Protection
• Thermal Shutdown
• Available in Green TQFN-4.5×3.5-20L Package

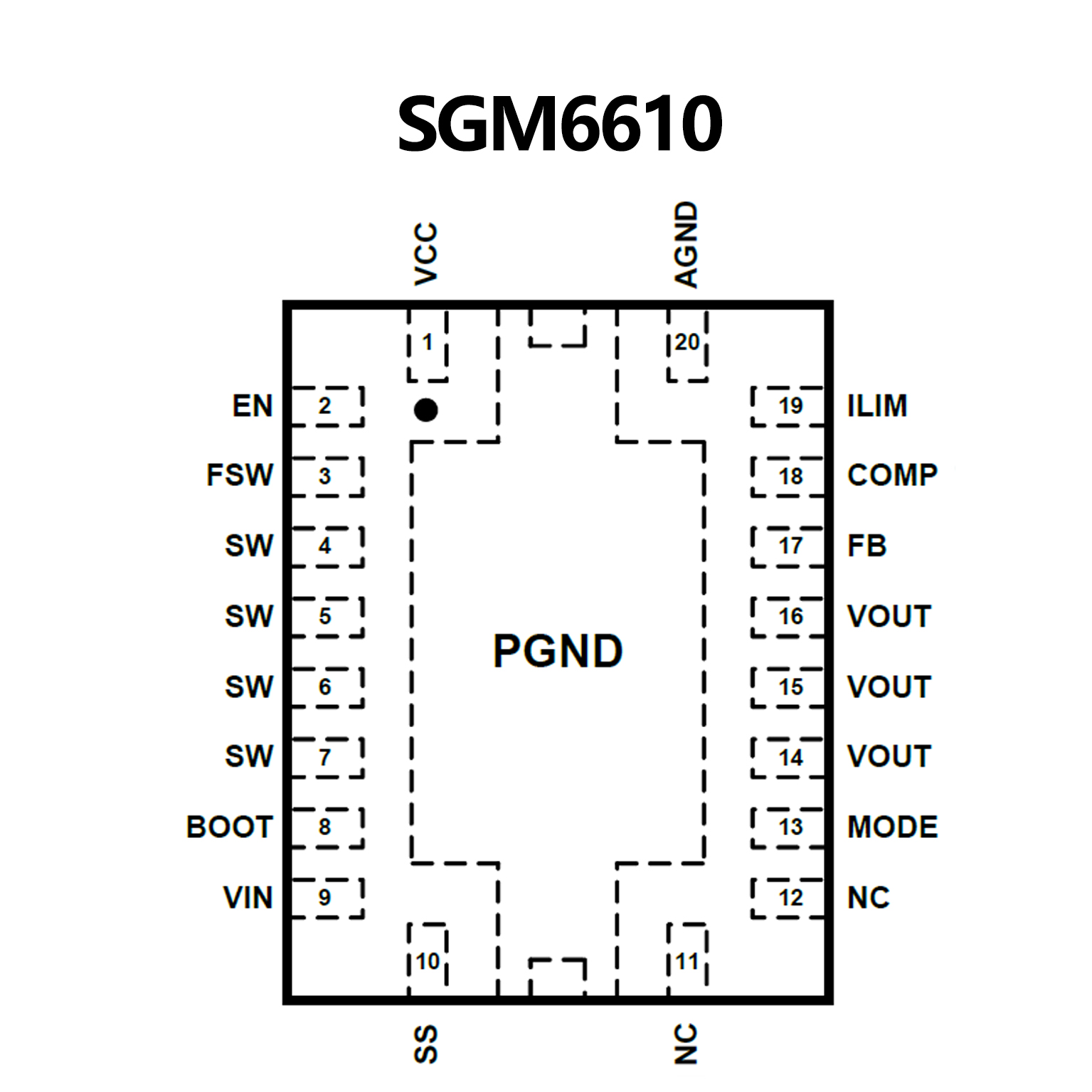

PIN CONFIGUTION
