SCT2130.pdf• Input Voltage Range: 2.8V-6V
• Up to 3A Continuous Output Current
• Low Shutdown Current: 0.7uA
• 0.6±1% Feedback Reference Voltage
• 2.1MHz Switching Frequency
• Integrated 25mΩ High-Side and 20mΩ Low-
Side Power MOSFETs
• Adjustable output voltage from 0.6V to 5V
• Active output discharge
• Programmable Soft Start Time
• Power Good Indicator
• Integrated Protection Feature
- Cycle-by-cycle current limit
- Under-voltage Lockout
- HICCUP Over Current Protection
- Thermal Shutdown Protection:160°C
• QFN-8L 1.5mm*2mm Package
• Available in a Wettable Flank Package

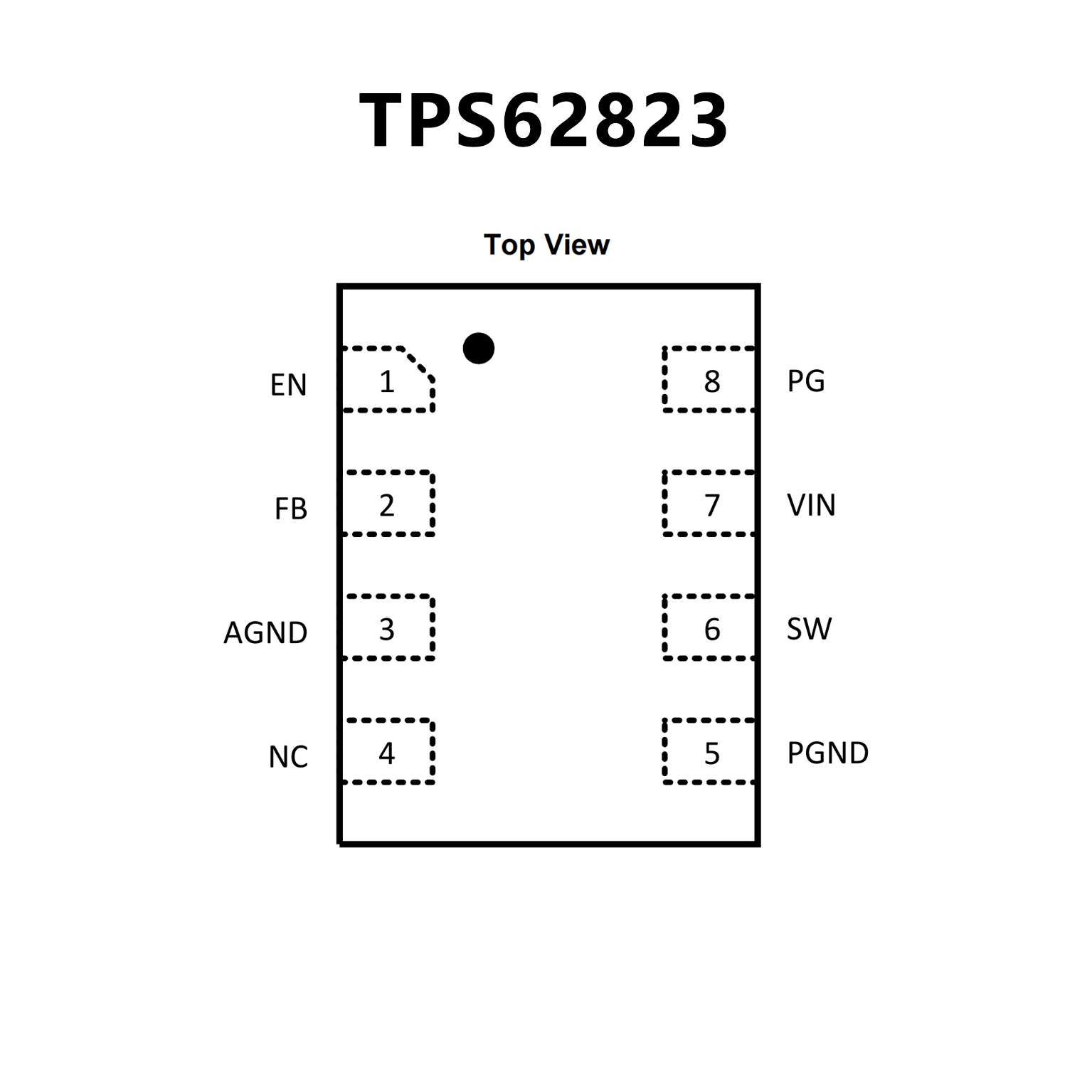

• DCS-Control™ topology
• 26-mΩ/25-mΩ internal power switches
(TPS62823)
• Up to 3-A output current (TPS62823)
• Very low quiescent current of 4 μA
• Switching frequency of typically 2.2 MHz
• 1% feedback voltage accuracy (full temp. range)
• Enable (EN) and power good (PG)
• Adjustable output voltage from 0.6 V to 4 V
• 100% duty-cycle mode
• Internal soft-start circuitry
• Seamless power save mode transition
• Undervoltage lockout
• Active output discharge
• Cycle-by-cycle current limit
• HICCUP short-circuit protection
• Over temperature protection
• CISPR11 class B compliant
• Create a custom design using the TPS62822 with
the WEBENCH® Power Designer
