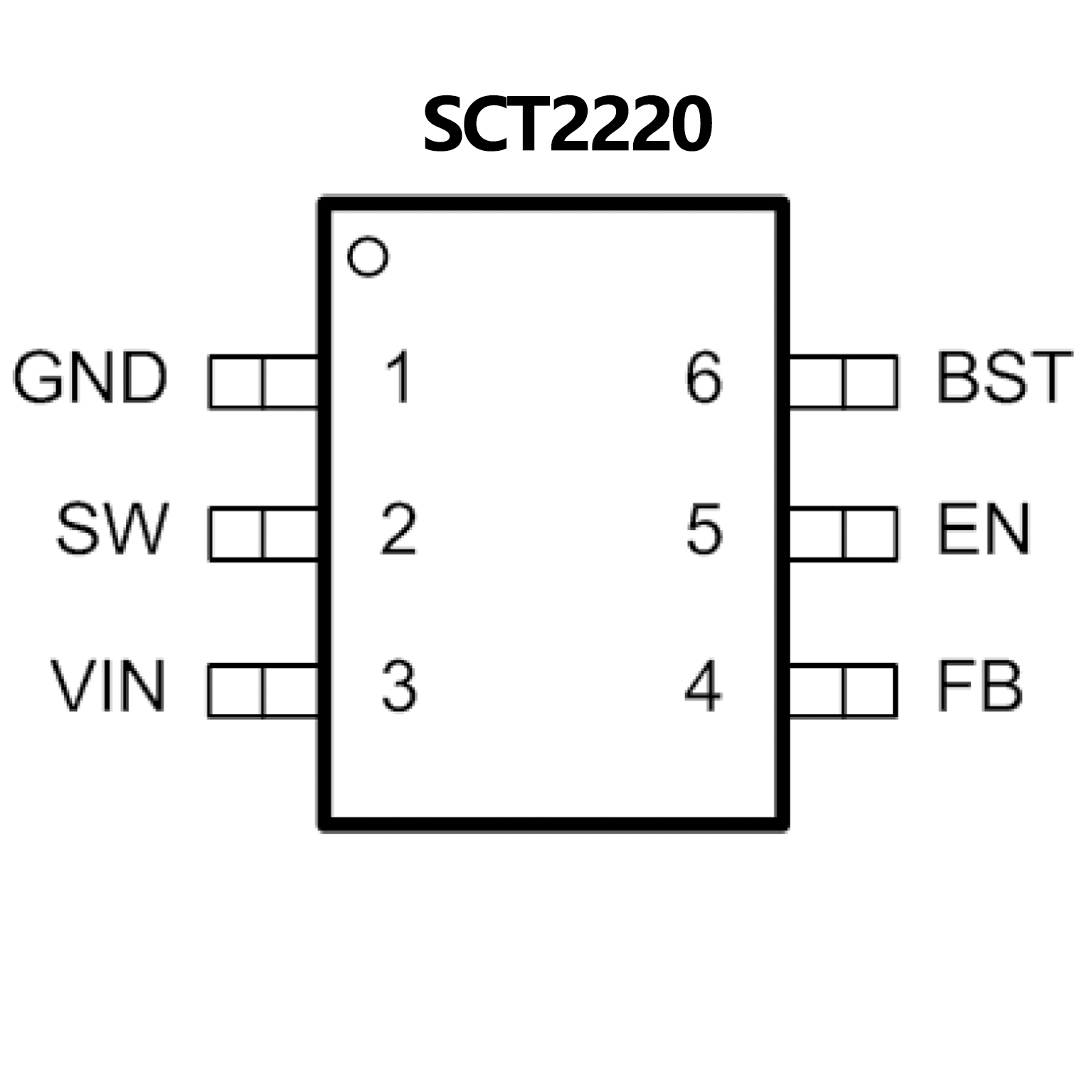

SCT2220.pdf• Wide Input Voltage: 4.2-17V
• 2A Continuous Output Current with
Integrated 90mΩ/65mΩFETs
• Wide Output Voltage Range:0.8V-7V
• Quiescent Current 135µA
• Cycle-by-Cycle Current Limiting
• Internal 2.5ms Soft-Start
Limits the inrush current
• Fixed 750kHz Switching Frequency
• Input Under-Voltage Lockout
• Power save mode at light load
• Over-Temperature Protection
• Available in a SOT563 and TSOT23 Package

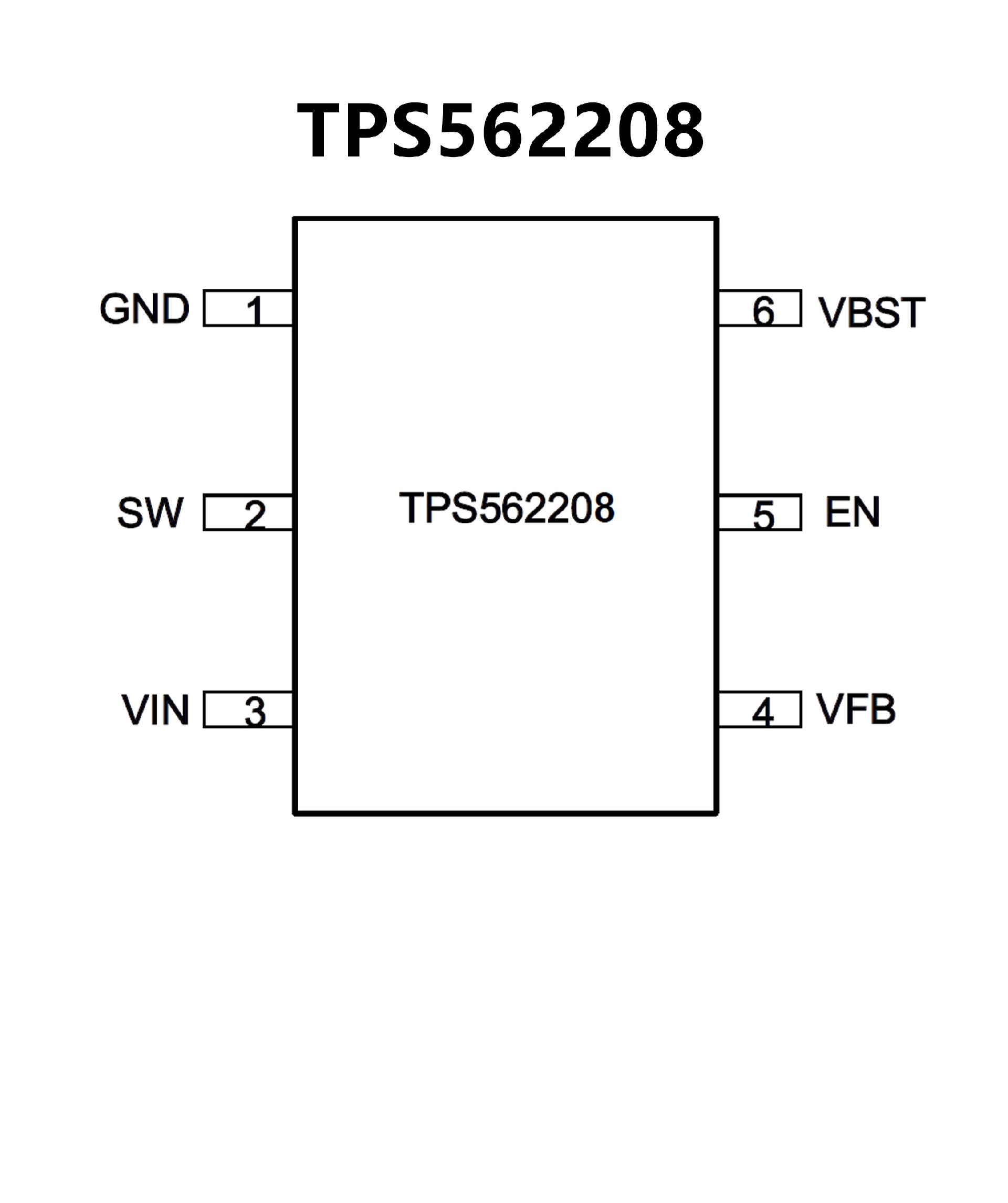

• TPS562201 and TPS562208 2-A converter
integrated 140-mΩ and 84-mΩ FETs
• D-CAP2™ mode control with fast transient
response
• Input voltage range: 4.5 V to 17 V
• Output voltage range: 0.76 V to 7 V
• Pulse-skip mode (TPS562201) or continuous
current mode (TPS562208)
• 580-kHz Switching frequency
• Low shutdown current less than 10 μA
• 2% Feedback voltage accuracy (25°C)
• Start-up from pre-biased output voltage
• Cycle-by-cycle overcurrent limit
• Hiccup-mode overcurrent protection
• Non-latch UVP and TSD protections
• Fixed soft start: 1.0 ms
