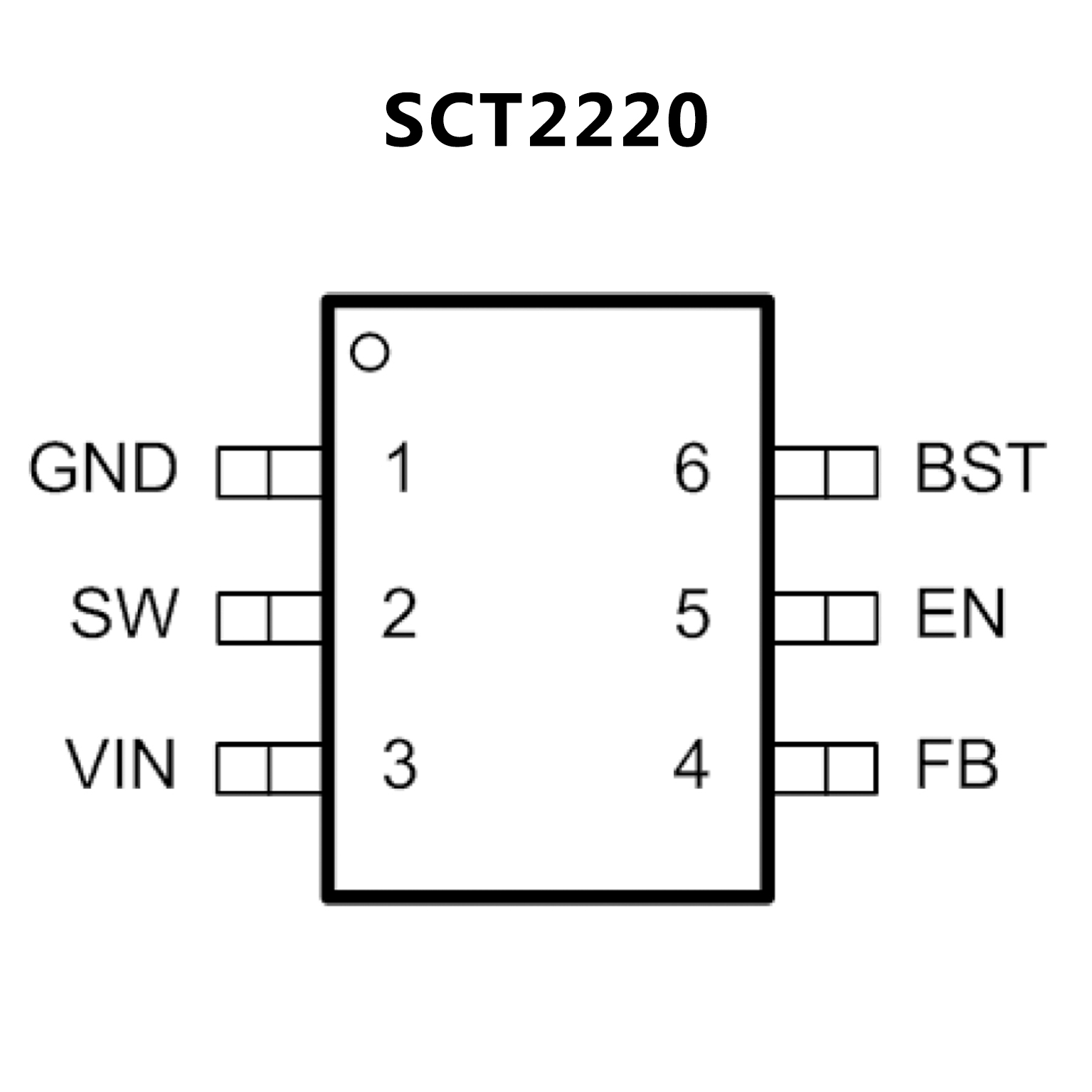

SCT2220.pdf• Wide Input Voltage: 4.2-17V
• 2A Continuous Output Current with
Integrated 90mΩ/65mΩFETs
• Wide Output Voltage Range:0.8V-7V
• Quiescent Current 135µA
• Cycle-by-Cycle Current Limiting
• Internal 2.5ms Soft-Start
Limits the inrush current
• Fixed 750kHz Switching Frequency
• Input Under-Voltage Lockout
• Power save mode at light load
• Over-Temperature Protection
• Available in a SOT563 and TSOT23 Package

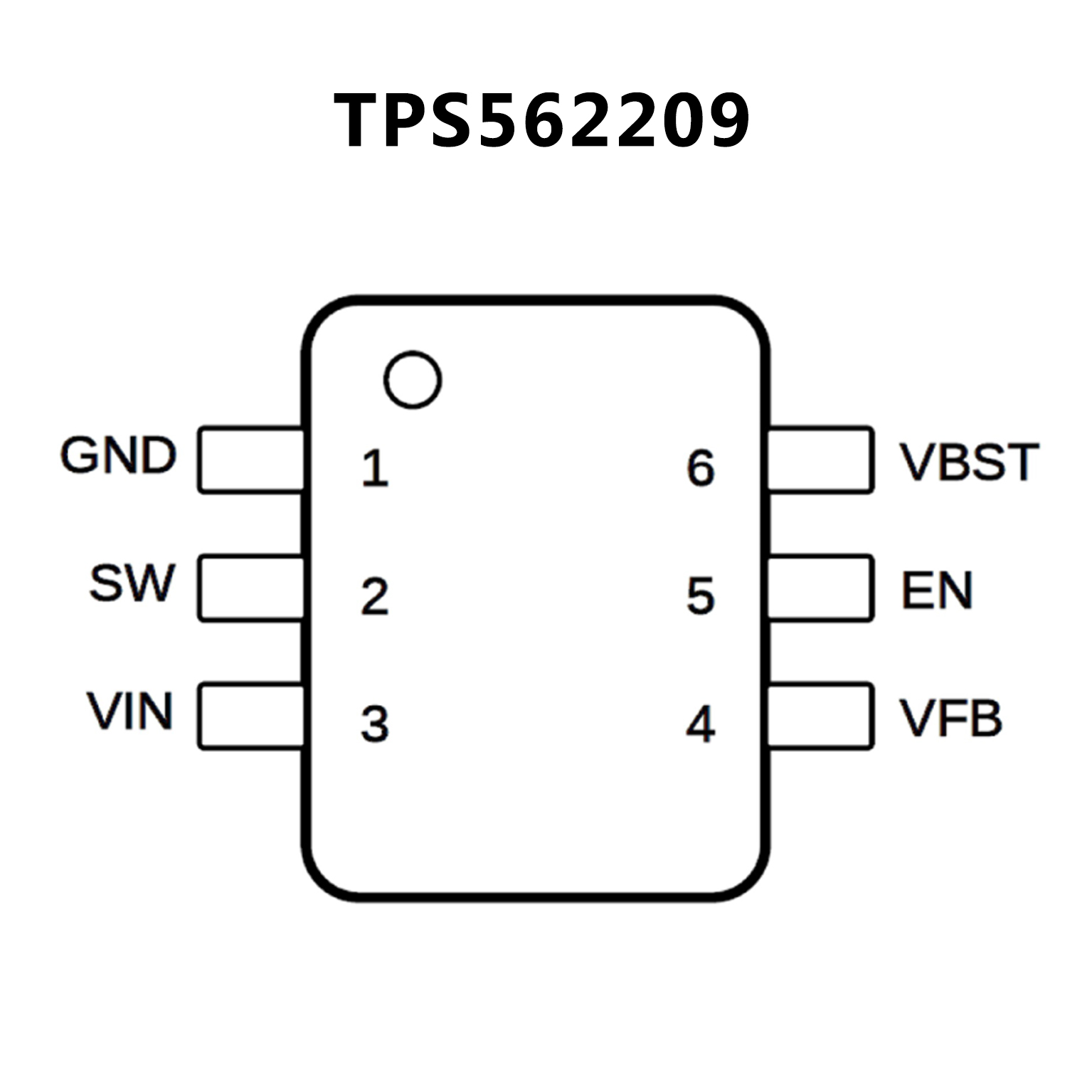

• TPS562209 - 2A converter with integrated
122-mΩ and 72-mΩ FETs
• TPS563209 - 3A converter with integrated 68-mΩ
and 39-mΩ FETs
• D-CAP2™ Mode Control for Fast Transient
Response
• Input Voltage Range: 4.5 V to 17 V
• Output Voltage Range: 0.76 V to 7 V
• 650 kHz Switching Frequency
• Low Shutdown Current Less than 10μA
• 1% Feedback Voltage Accuracy (25°C)
• Startup from Pre-Biased Output Voltage
• Cycle By Cycle Over-current Limit
• Hiccup-mode Under Voltage Protection
• Non-latch OVP, UVLO and TSD Protections
• Fixed Soft Start : 1.0ms
