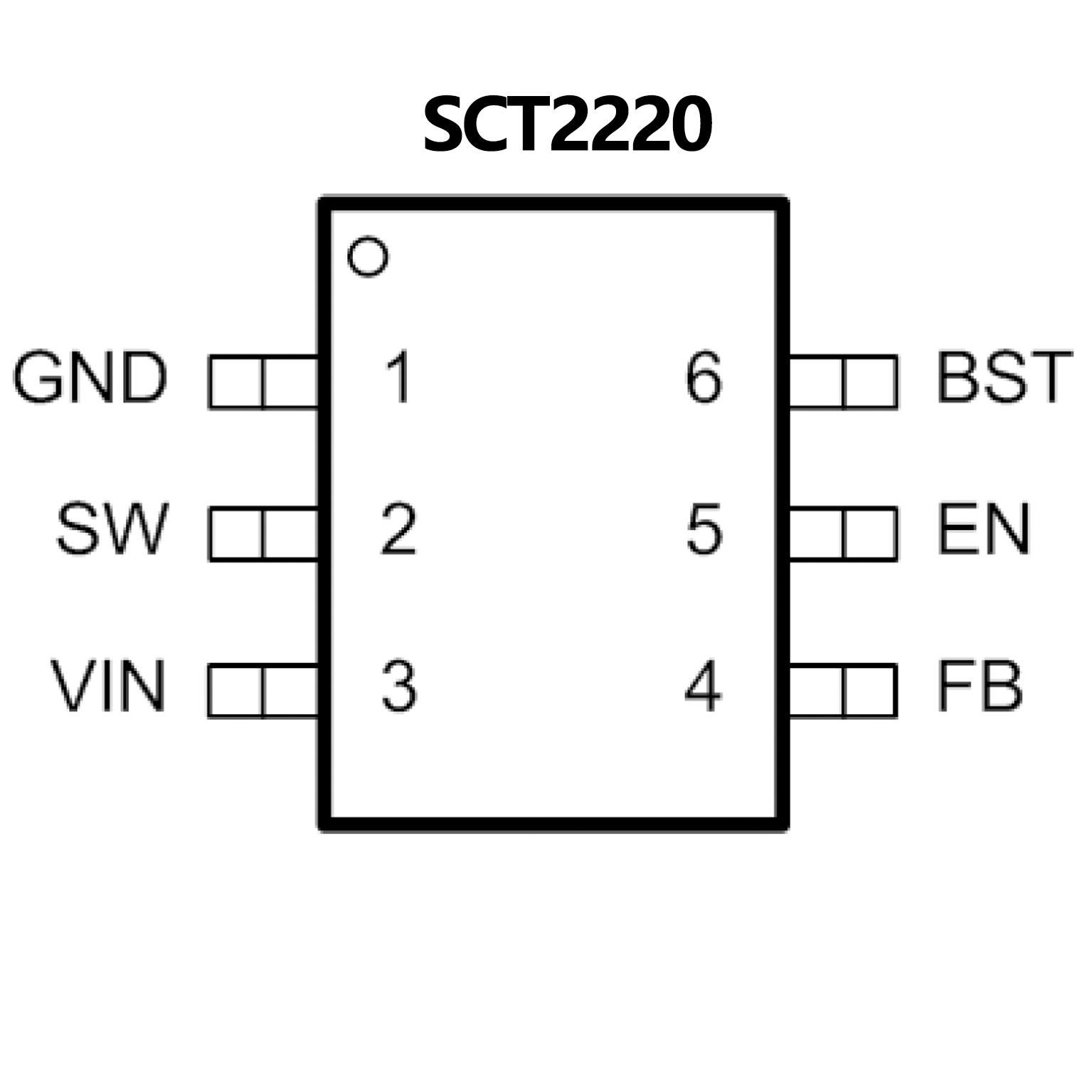

SCT2220.pdf• Wide Input Voltage: 4.2-17V
• 2A Continuous Output Current with
Integrated 90mΩ/65mΩFETs
• Wide Output Voltage Range:0.8V-7V
• Quiescent Current 135µA
• Cycle-by-Cycle Current Limiting
• Internal 2.5ms Soft-Start
Limits the inrush current
• Fixed 750kHz Switching Frequency
• Input Under-Voltage Lockout
• Power save mode at light load
• Over-Temperature Protection
• Available in a SOT563 and TSOT23 Package

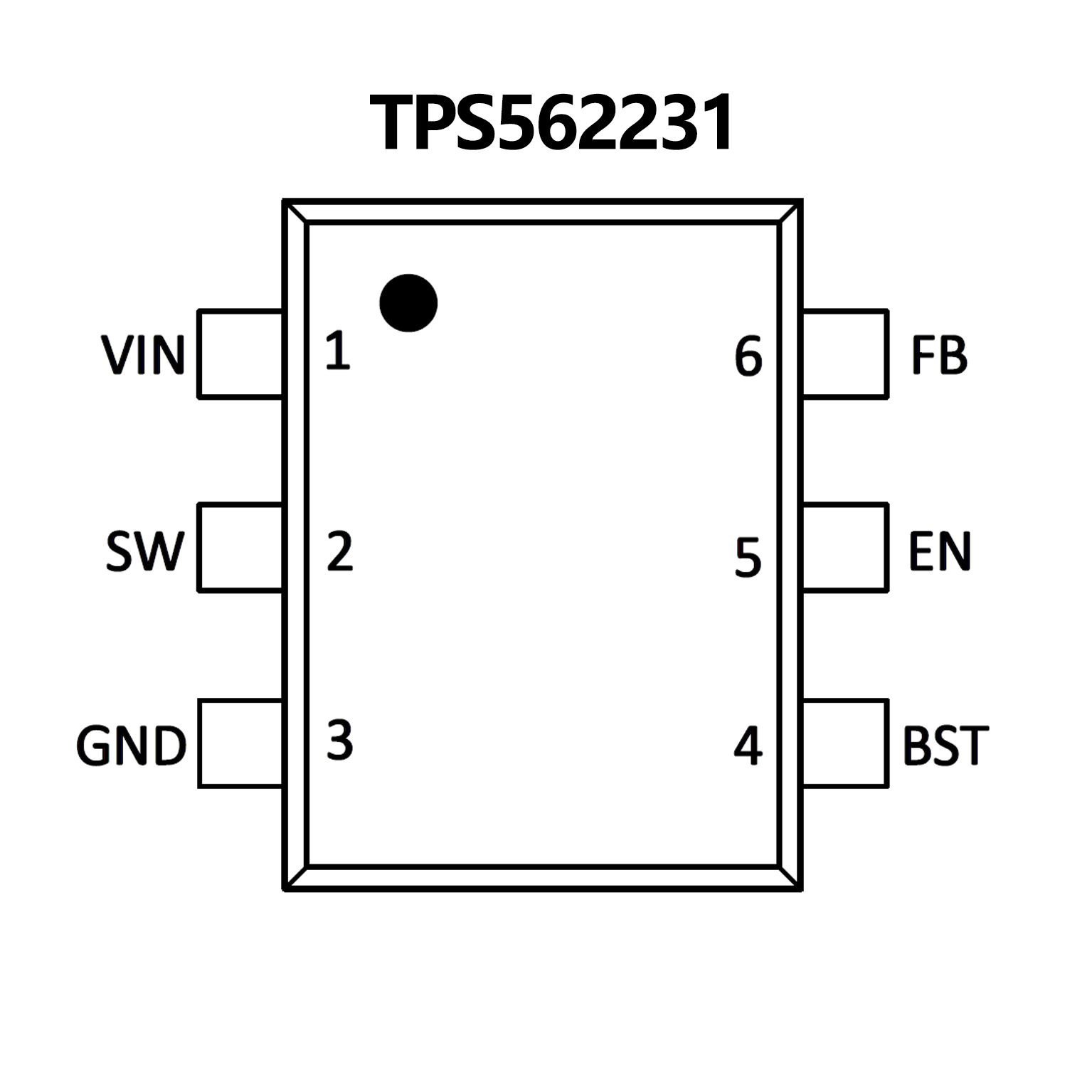

• 2-A converter integrated 95-mΩ and 55-mΩ FETs
• D-CAP3™ Mode Control with fast transient
response
• Input voltage range: 4.5 V to 17 V
• Output voltage range: 0.6 V to 7 V
• Pulse skip mode
• 850-kHz switching frequency
• Low shutdown current less than 2 μA (typical)
• 2% feedback voltage accuracy (25ºC)
• Startup from pre-biased output voltage
• Cycle-by-cycle over current limit
• Hiccup-mode over current protection
• Non-latch UVP and TSD protections
• 6-pin SOT563 package
• Precision enable
• Pin-to-pin compatible with TPS563231
