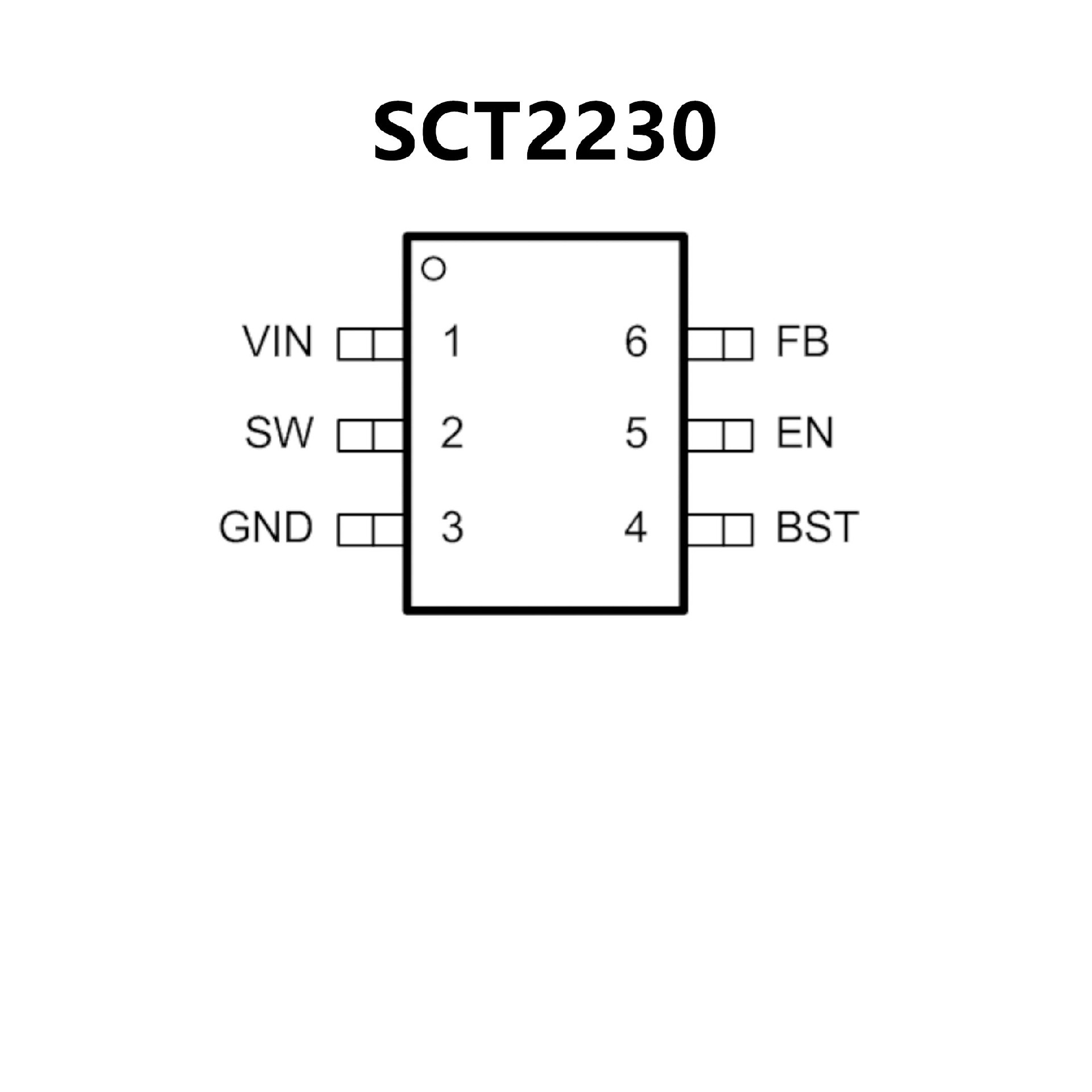

SCT2230.pdf• Wide Input Voltage: 4.2-17V
• 3A Continuous Output Current
with Integrated 70mΩ/35mΩFETs
• Wide Output Voltage Range:0.8V-7V
• Quiescent Current 150uA
• Cycle-by-Cycle Current Limiting
• Internal 2ms Soft-Start Limits the inrush current
• Fixed 800kHz Switching Frequency
• Input Under-Voltage Lockout
• Power save mode at light load
• Over-Temperature Protection
• Available in a SOT563 and TSOT23 Package
• TPS562200 - 2A converter with Integrated
• 122 mΩ and 72 mΩ FETs

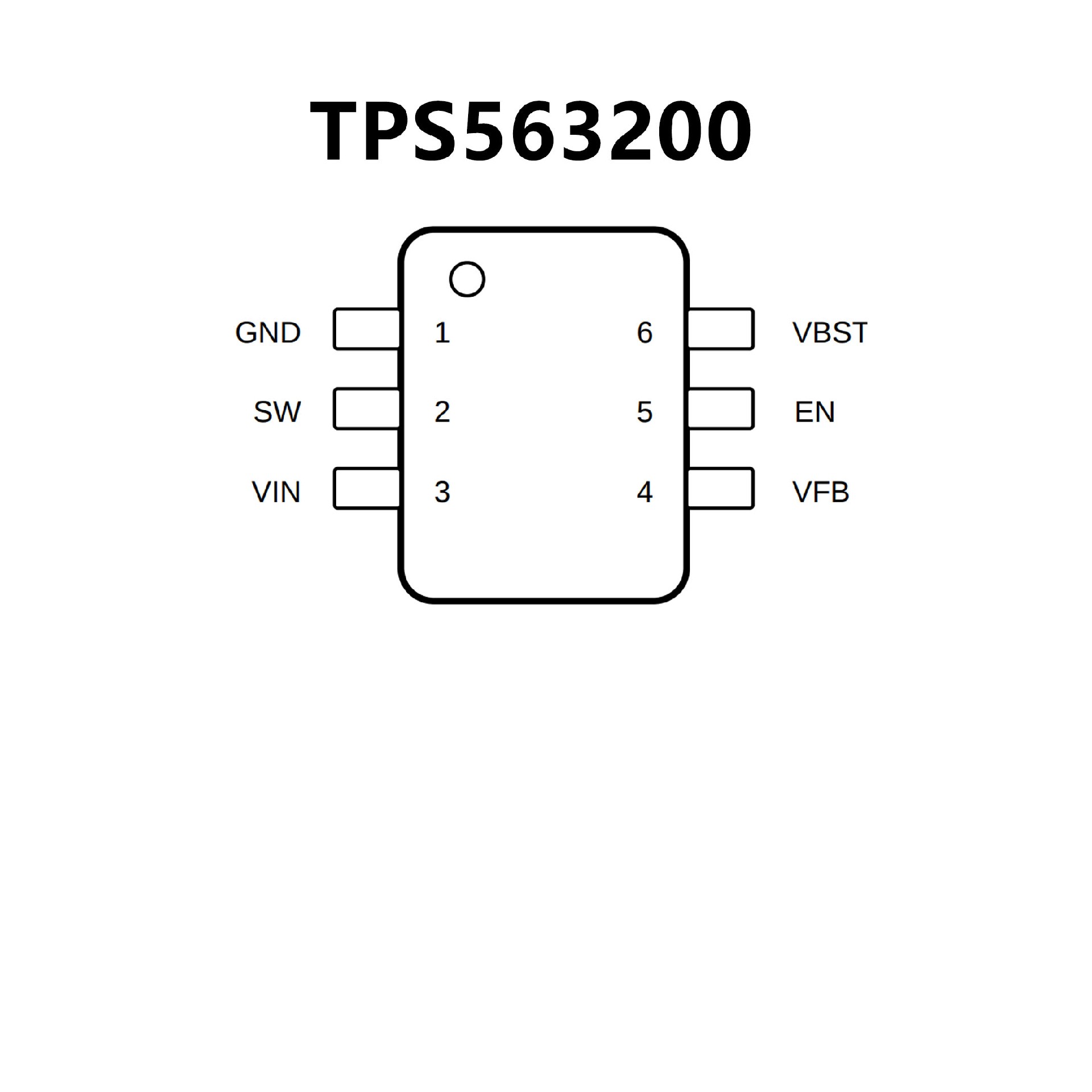

• TPS563200 - 3A converter with Integrated 68 mΩ
and 39 mΩ FETs
• D-CAP2™ Mode Control for Fast Transient
Response
• Input Voltage Range: 4.5 V to 17 V
• Output Voltage Range: 0.76 V to 7 V
• 650 kHz Switching Frequency
• Advanced Eco-mode™ Pulse-skip
• Low Shutdown Current Less than 10 μA
• 1% Feedback Voltage Accuracy (25°C)
• Startup from Pre-Biased Output Voltage
• Cycle-By-Cycle Overcurrent Limit
• Hiccup-Mode Undervoltage Protection
• Non-latch OVP, UVLO and TSD Protections
• Fixed Soft Start: 1 ms
• Create a Custom Design with WEBENCH Tools
