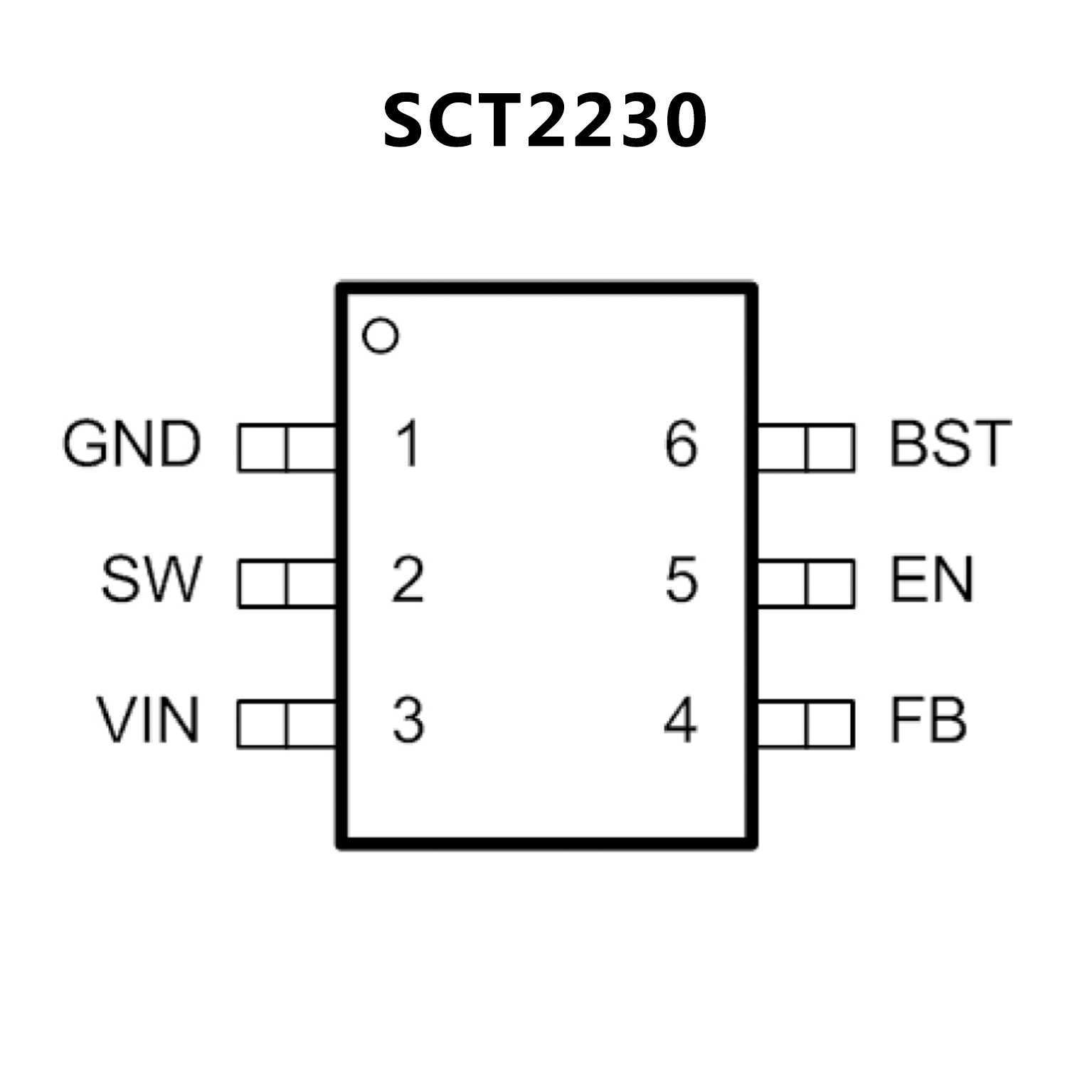

SCT2230.pdf• Wide Input Voltage: 4.2-17V
• 3A Continuous Output Current
with Integrated 70mΩ/35mΩFETs
• Wide Output Voltage Range:0.8V-7V
• Quiescent Current 150uA
• Cycle-by-Cycle Current Limiting
• Internal 2ms Soft-Start Limits the inrush current
• Fixed 800kHz Switching Frequency
• Input Under-Voltage Lockout
• Power save mode at light load
• Over-Temperature Protection
• Available in a SOT563 and TSOT23 Package

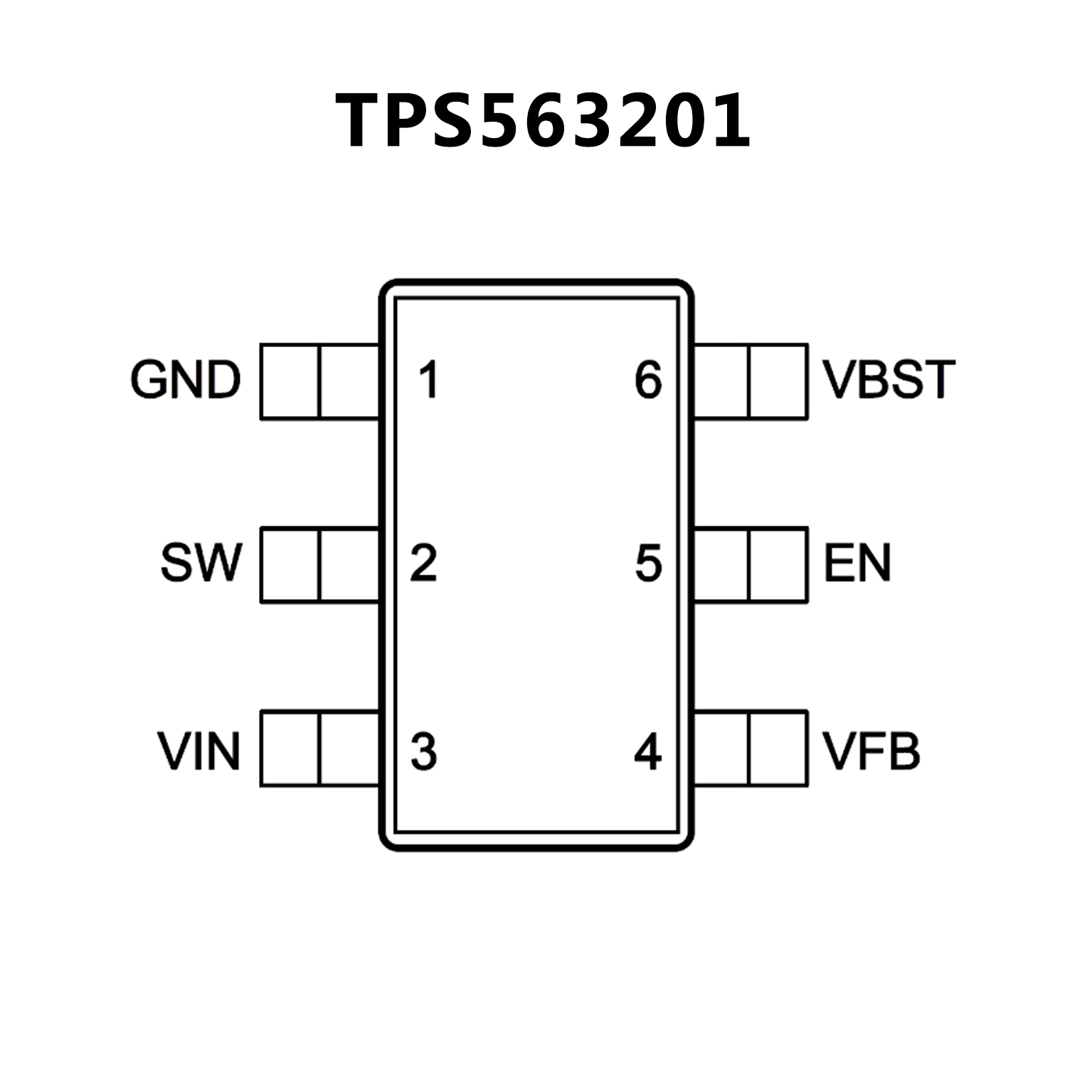

• TPS563201 and TPS563208 3-A Converter
Integrated 95-mΩ and 57-mΩ FETs
• D-CAP2™ Mode Control with fast transient response
• Input Voltage Range: 4.5 V to 17 V
• Output Voltage Range: 0.76 V to 7 V
• Pulse-skip mode (TPS563201) or
Continuous Current Mode (TPS563208)
• 580-kHz Switching Frequency
• Low Shutdown Current Less than 10 µA
• 2% Feedback Voltage Accuracy (25 ºC)
• Startup from Pre-Biased Output Voltage
• Cycle-by-Cycle Overcurrent Limit
• Hiccup-mode Overcurrent Protection
• Non-Latch UVP and TSD Protections
• Fixed Soft Start: 1.0 ms
