4.5V 40V Vin, 600mA Synchronous Step down DCDC Converter, SCT2400 Replace BD9G101G.
SCT2400
SCT2400.pdf
SCT2400.pdfFEATURES
• Wide Input Range: 4.5V-40V
• Up to 600mA Continuous Output Current
• Less than 0.1% Output Ripple at 12V Output
• 0.81V ± 2.5% Feedback Reference Voltage
• Integrated 600mΩ High-Side and 300mΩ Low-
Side Power MOSFETs
• Fixed Frequency 2MHz
• Pulse Skipping Mode (PSM) at Light Load
• 90uA Quiescent Current in Sleep Mode
• 80ns Minimum On-time
• 1ms Internal Soft-start Time
• Over-Temperature Protection
• Available in an TSOT23-6L Package

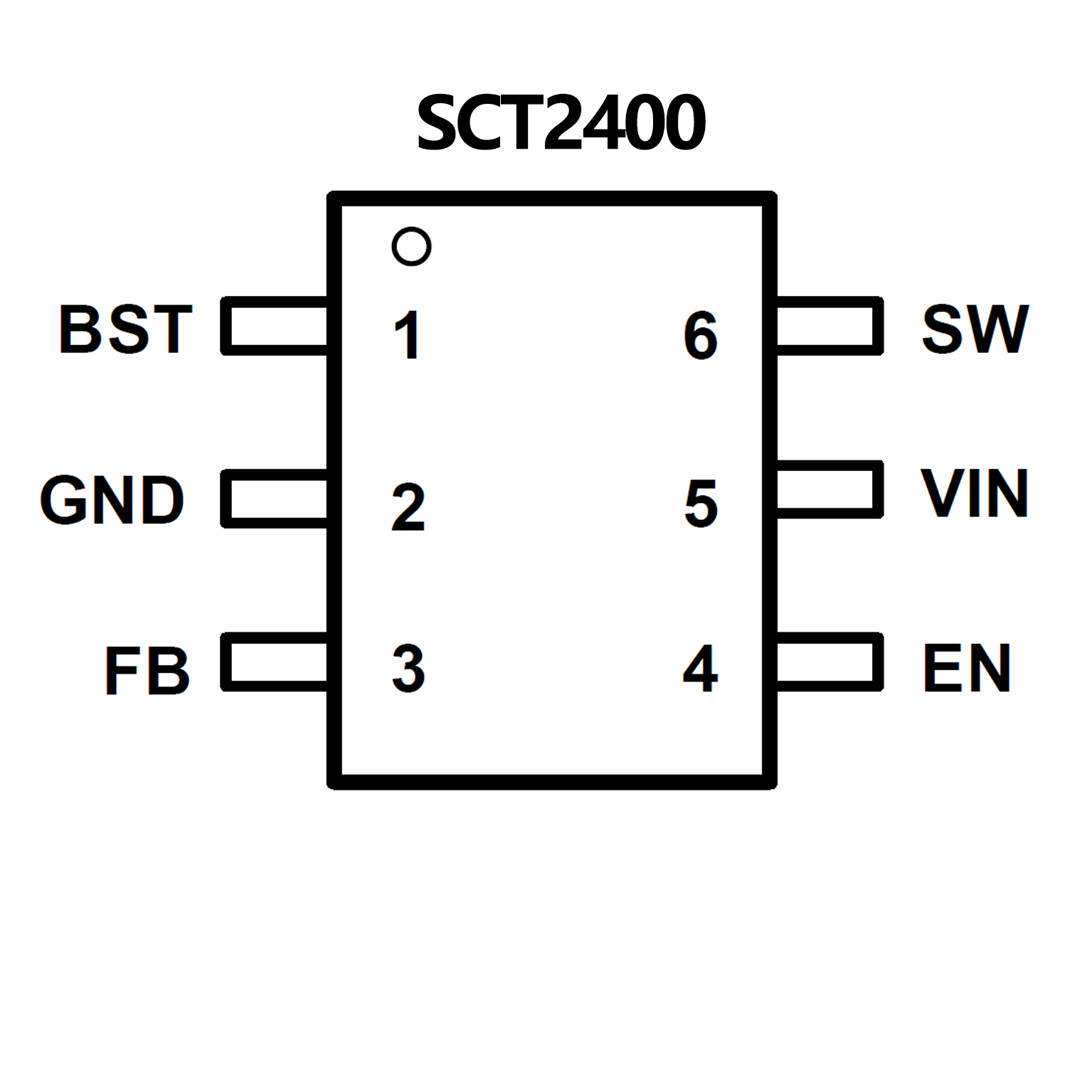

PIN CONFIGUTION
优势替代
FEATURES
• High and Wide Input Range (VCC=6V~42V)
• 45V/800mΩ Internal Power MOSFET
• 1.5MHz Fixed Operating Frequency
• Feedback Pin Voltage 0.75V±1.5%
• Internal compensated
• Internal Over Current protection, Under
• Voltage Locked Out, Thermal shutdown
• 0μA Shutdown Supply Current (Ist=0uA)
• Small package SSOP6

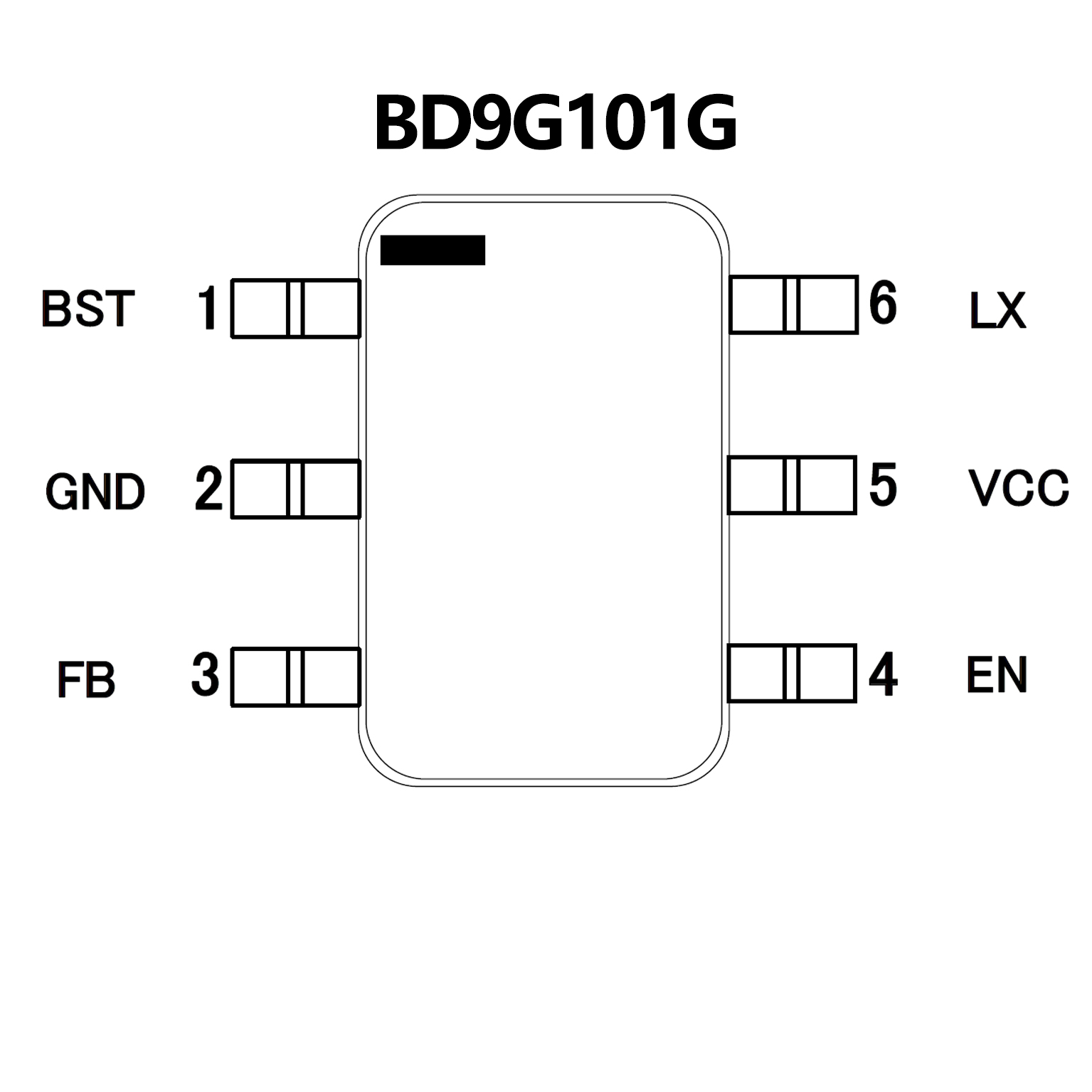

PIN CONFIGUTION
