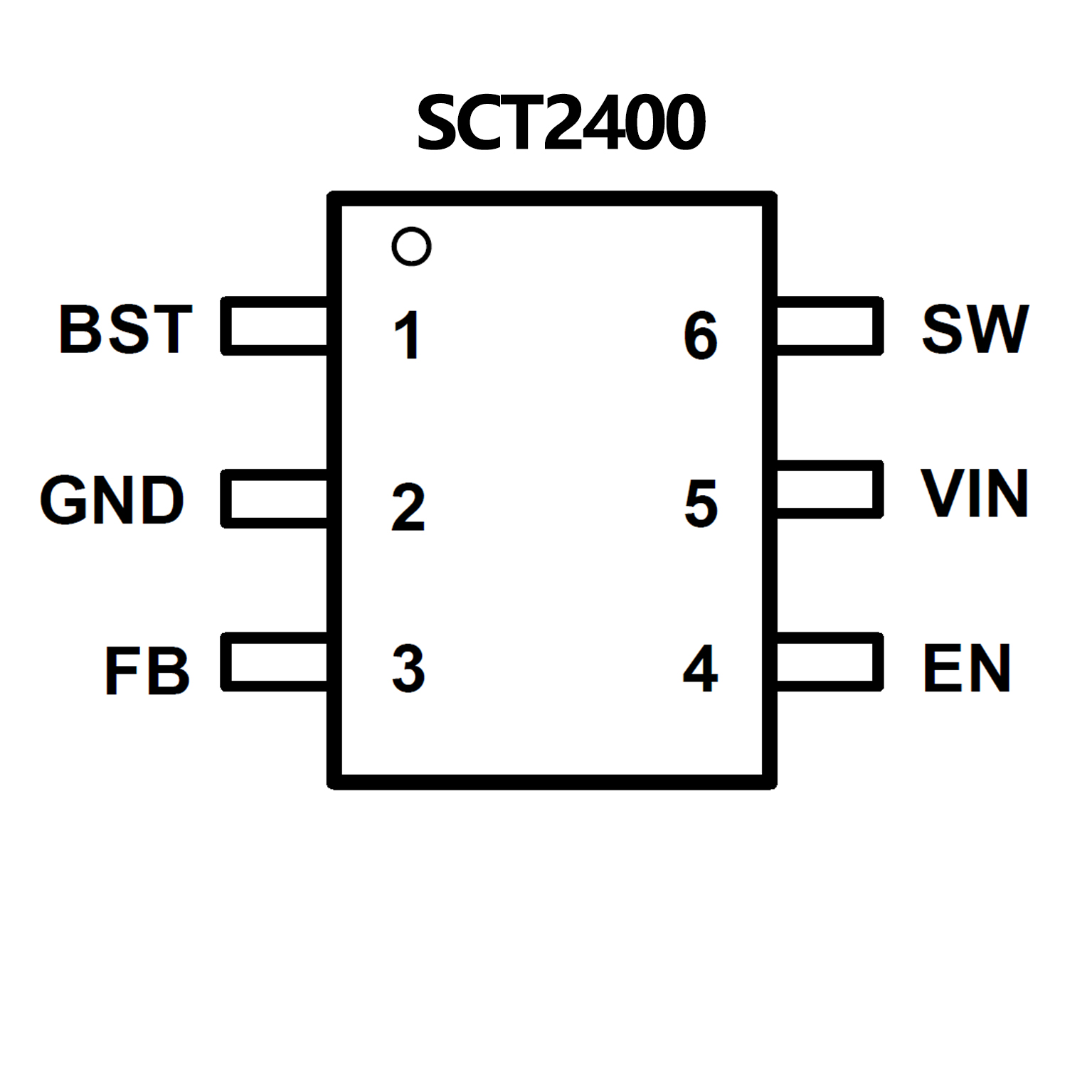

SCT2400.pdf• Wide Input Range: 4.5V-40V
• Up to 600mA Continuous Output Current
• Less than 0.1% Output Ripple at 12V Output
• 0.81V ± 2.5% Feedback Reference Voltage
• Integrated 600mΩ High-Side and 300mΩ Low-
Side Power MOSFETs
• Fixed Frequency 2MHz
• Pulse Skipping Mode (PSM) at Light Load
• 90uA Quiescent Current in Sleep Mode
• 80ns Minimum On-time
• 1ms Internal Soft-start Time
• Over-Temperature Protection
• Available in an TSOT23-6L Package

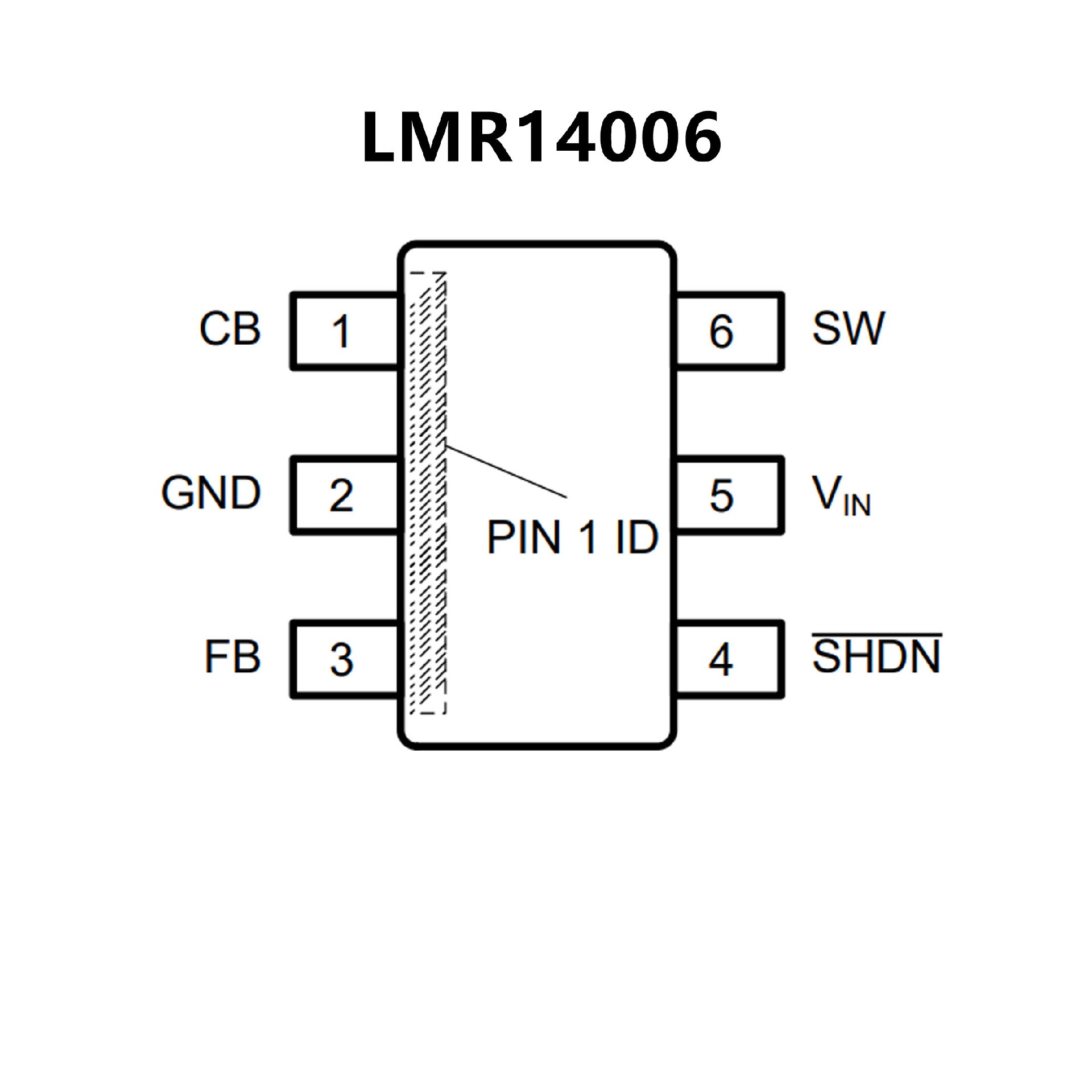

• Ultra Low 28 µA Standby Current in Sleep Mode
• Input Voltage Range 4 V to 40 V
• 1 µA Shutdown Current
• High Duty Cycle Operation Supported
• Output Current up to 600 mA
• 1.1 MHz and 2.1 MHz Switching Frequency
• Internal Compensation
• High Voltage Enable Input
• Internal Soft Start
• Over Current Protection
• Over Temperature Protection
• Small Overall Solution Size (TSOT-6L Package)
