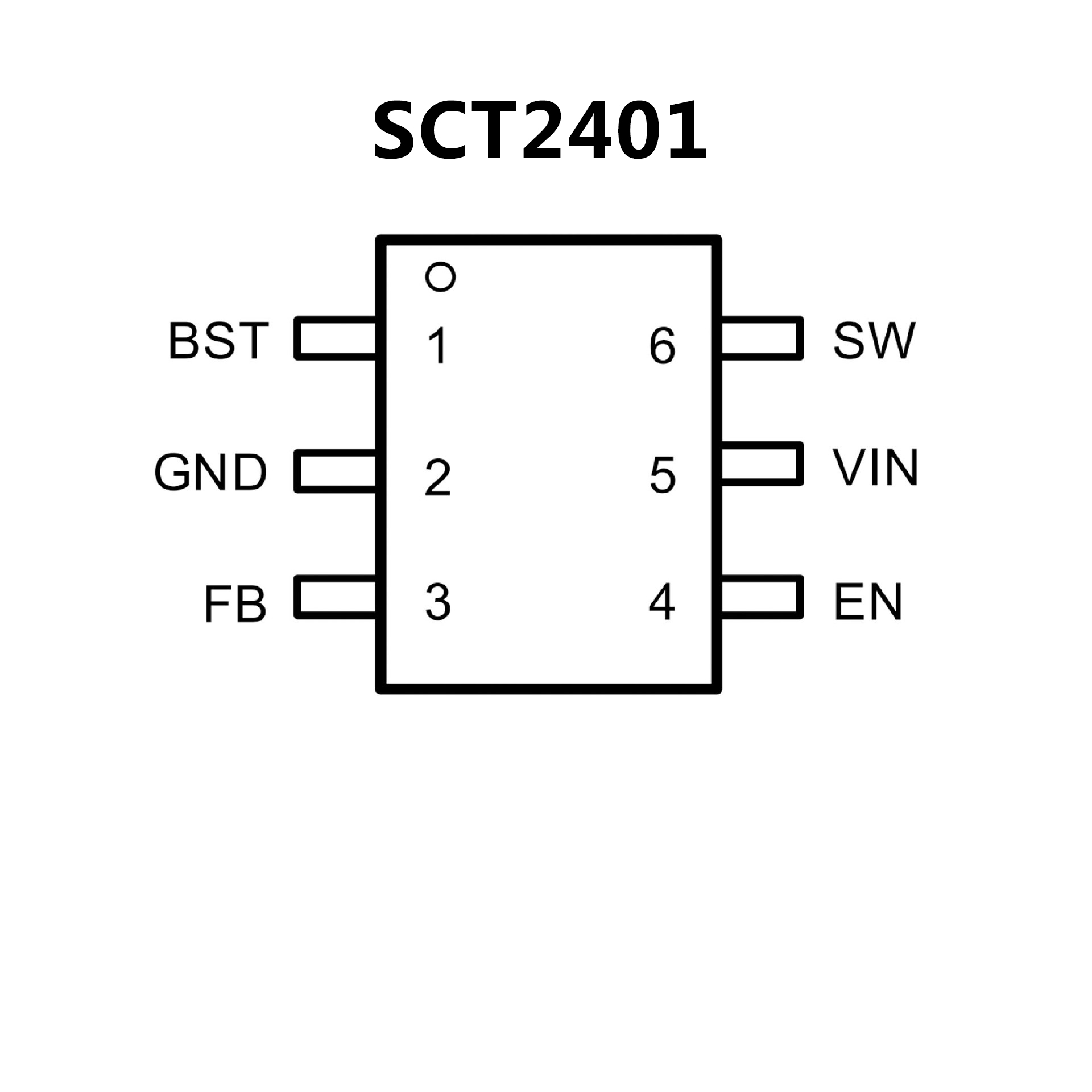

SCT2401.pdf• Wide Input Range: 4.5V-40V
• Up to 600mA Continuous Output Current
• 0.81V ± 2.5% Feedback Reference Voltage
• Integrated 600mΩ High-Side and 300mΩ
Low-Side Power MOSFETs
• Fixed Frequency 1.2MHz
• Pulse Skipping Mode (PSM) at Light Load
• 90uA Quiescent Current in Sleep Mode
• 80ns Minimum On-time
• 1ms Internal Soft-start Time
• Over-Temperature Protection
• Available in an TSOT23-6L Package
• Input Range 4V to 40V with 45V Transients
• 1.1MHz(X) or 2.1MHz(Y) Switching Frequency
• Ultra High Efficiency for Light Load with Eco Mode
• Low Dropout Operation
• Output Current Options of 300mA and 600mA
• High Voltage Precision Enable Input
• Over Current Protection
• Over Temperature Protection
• Internal Compensation
• Small Overall Solution Size (TSOT-6L Package)
