4.5V 40V Vin, 600mA Synchronous Step down DCDC Converter, SCT2401 Replace RT6200.
SCT2401
SCT2401.pdf
SCT2401.pdfFEATURES
• Wide Input Range: 4.5V-40V
• Up to 600mA Continuous Output Current
• 0.81V ± 2.5% Feedback Reference Voltage
• Integrated 600mΩ High-Side and 300mΩ Low-
Side Power MOSFETs
• Fixed Frequency 1.2MHz
• Pulse Skipping Mode (PSM) at Light Load
• 90uA Quiescent Current in Sleep Mode
• 80ns Minimum On-time
• 1ms Internal Soft-start Time
• Over-Temperature Protection
• Available in an TSOT23-6L Packag

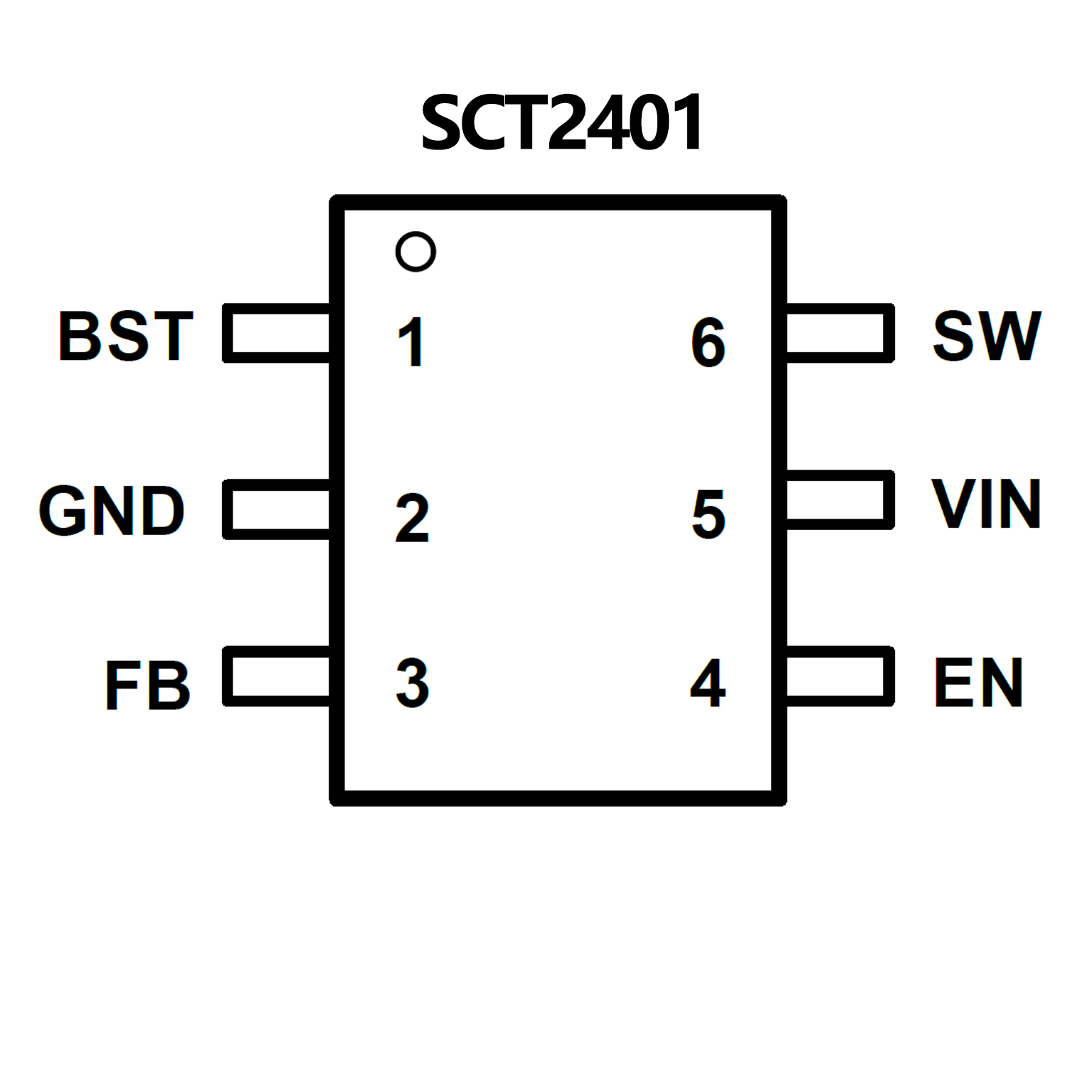

PIN CONFIGUTION
优势替代
FEATURES
• Wide Operating Input Voltage Range : 4.5V to 36V
• Adjustable Output Voltage Range : 0.8V to 15V
• 0.6A Output Current
• 0.35Ω Internal Power MOSFET Switch
• High Efficiency up to 95%
• 1.2MHz Fixed Switching Frequency (Duty <90%)
• Support duty up to 95%
• Stable with Low ESR Output Ceramic Capacitors
• Thermal Shutdown
• Cycle-By-Cycle Over-Current Protection

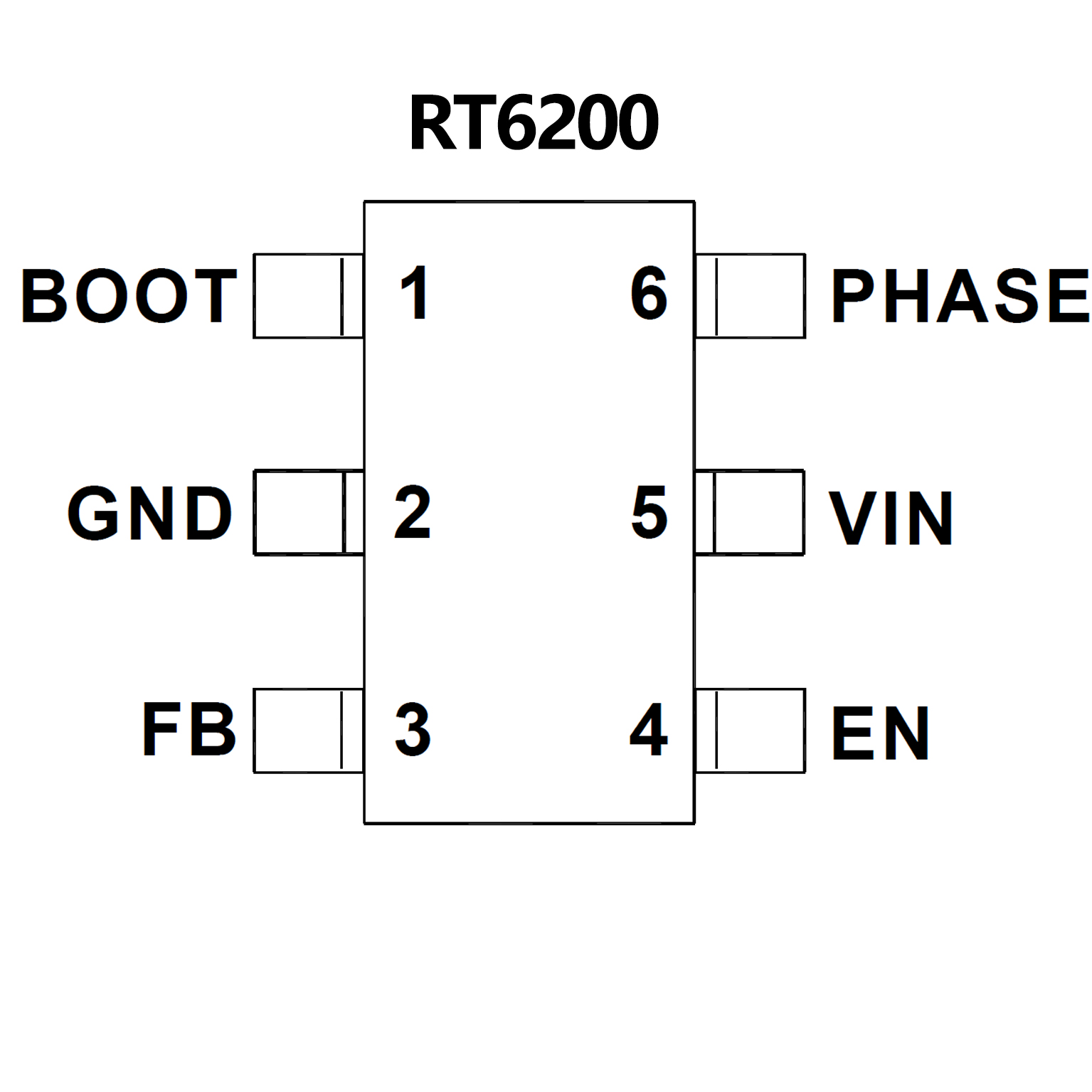

PIN CONFIGUTION
