4.5V 40V Vin, 600mA Synchronous Step down DCDC Converter, SCT2401 Replace SY8200.
SCT2401
SCT2401.pdf
SCT2401.pdfFEATURES
• Wide Input Range: 4.5V-40V
• Up to 600mA Continuous Output Current
• 0.81V ± 2.5% Feedback Reference Voltage
• Integrated 600mΩ High-Side and 300mΩ Low-
Side Power MOSFETs
• Fixed Frequency 1.2MHz
• Pulse Skipping Mode (PSM) at Light Load
• 90uA Quiescent Current in Sleep Mode
• 80ns Minimum On-time
• 1ms Internal Soft-start Time
• Over-Temperature Protection
• Available in an TSOT23-6L Packag

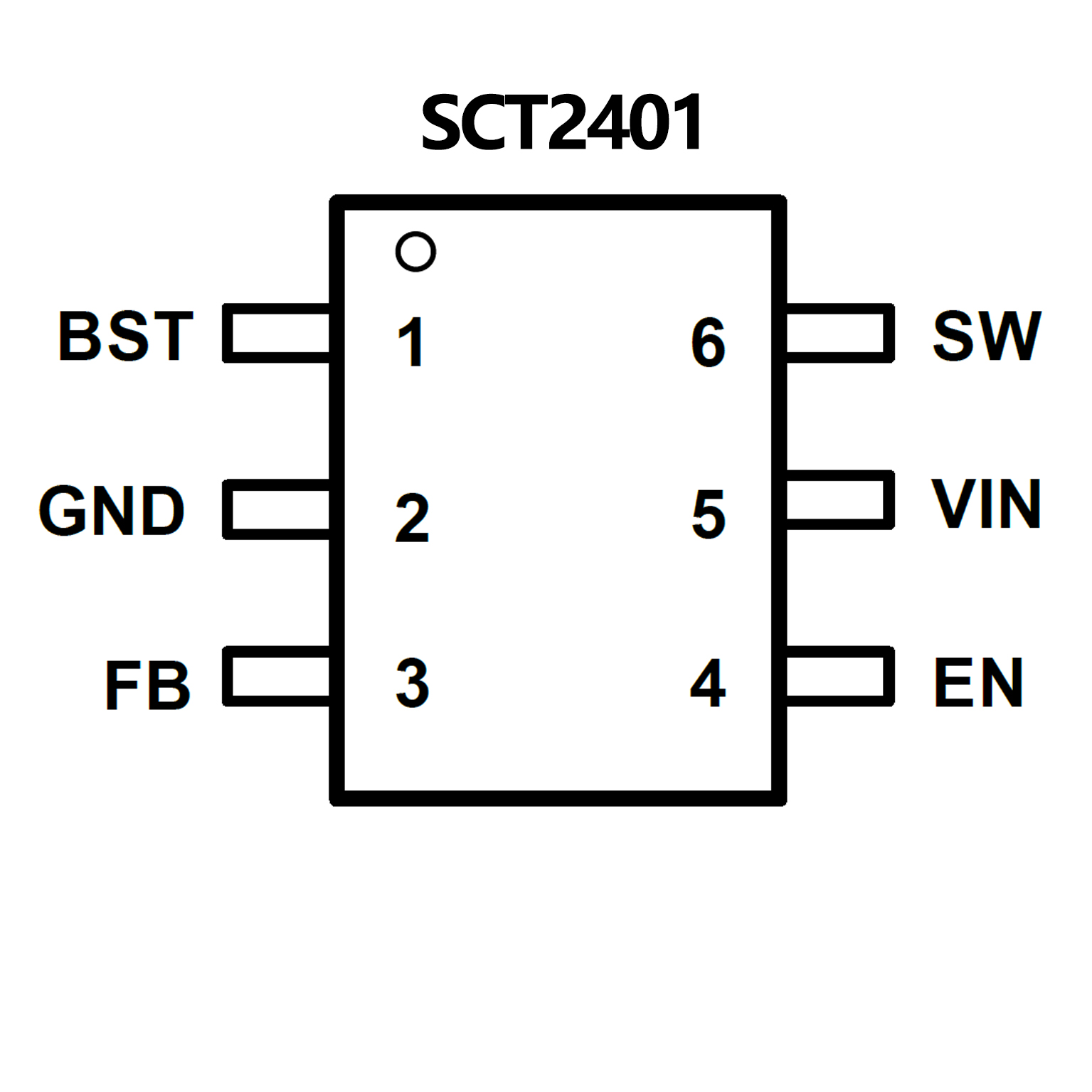

PIN CONFIGUTION
优势替代
FEATURES
• Low RDS(ON) for internal switches
(top/bottom):420/200 m
• 6-24V input voltage range
• Instant PWM architecture to achieve fast transient
responses Internal softstart limits the inrush current
• 2% 0.6V reference
• RoHS Compliant and Halogen Free
• Compact package: SOT23-6 pin

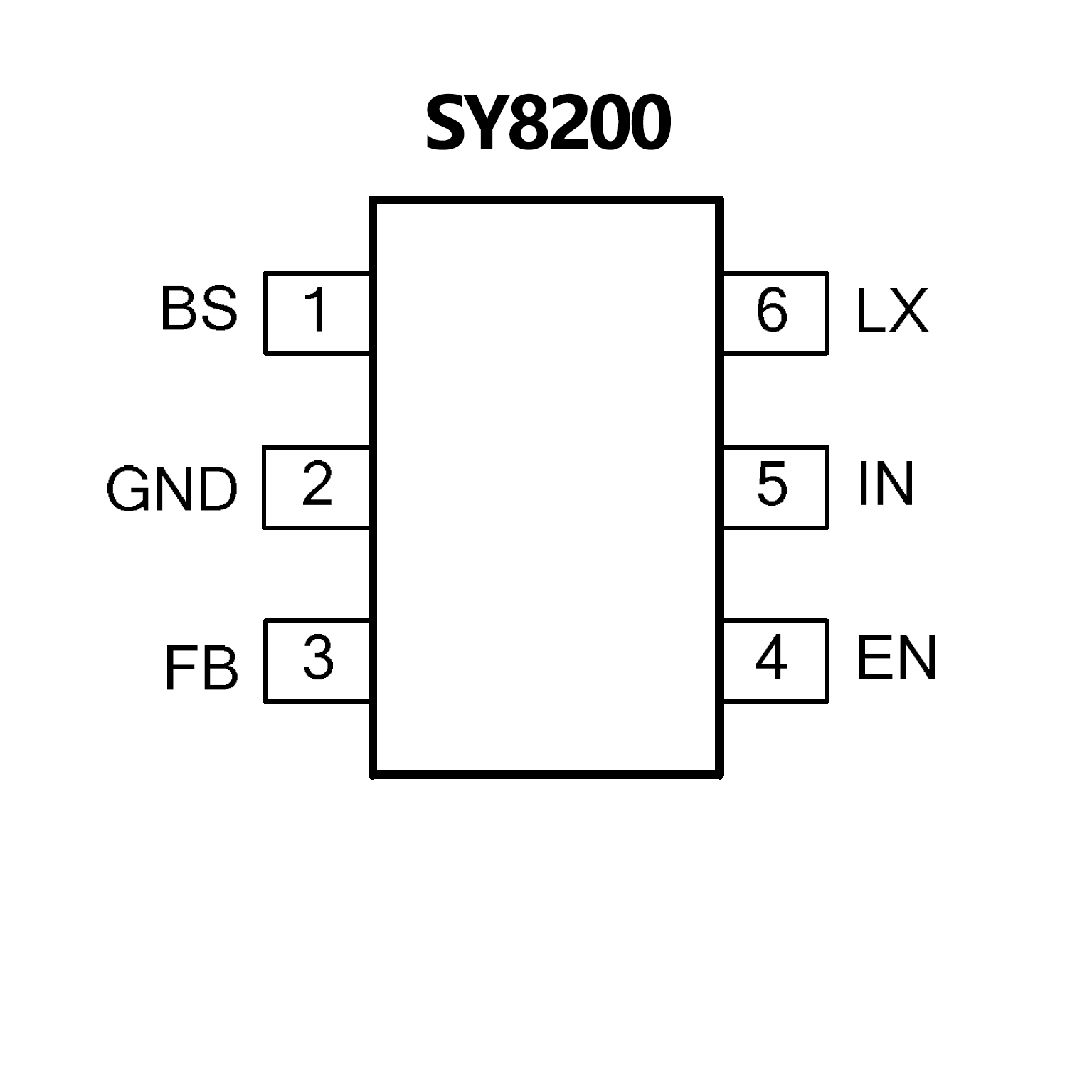

PIN CONFIGUTION
