SIMPLE SWITCHER® 40V, 3.5A Step-Down Converter with 40µA IQ, SCT2432Q Replace LMR14030-Q1.
FEATURES

• Qualified for Automotive Applications
 AEC-Q100 Qualified with the Following Results:
  - Device Temperature Grade 1: -40°C to 125°C
    Ambient Operating Temperature Range
  - Device HBM ESD Classification Level 2
  - Device CDM ESD Classification Level C3
• Wide Input Range: 3.8V-40V
• Up to 3.5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 80mΩ High-Side and 50mΩ Low-Side
  Power MOSFETs
• Pulse Skipping Mode (PSM) with 25uA Quiescent
  Current in Sleep Mode
• 100ns Minimum On-time
• Programmable Soft-start Time
• Adjustable Frequency 300KHz to 2.2MHz
• External Clock Synchronization
• Frequency Spread Spectrum (FSS) Modulation for
  EMI Reduction
• Precision Enable Threshold for Programmable
  Input Voltage Under-voltage Lock Out Protection
  (UVLO) Threshold and Hysteresis
• Low Dropout Mode Operation
• Derivable Inverting Voltage Regulator
• Over-voltage and Over-Temperature Protection
• Available in an ESOP-8 Package

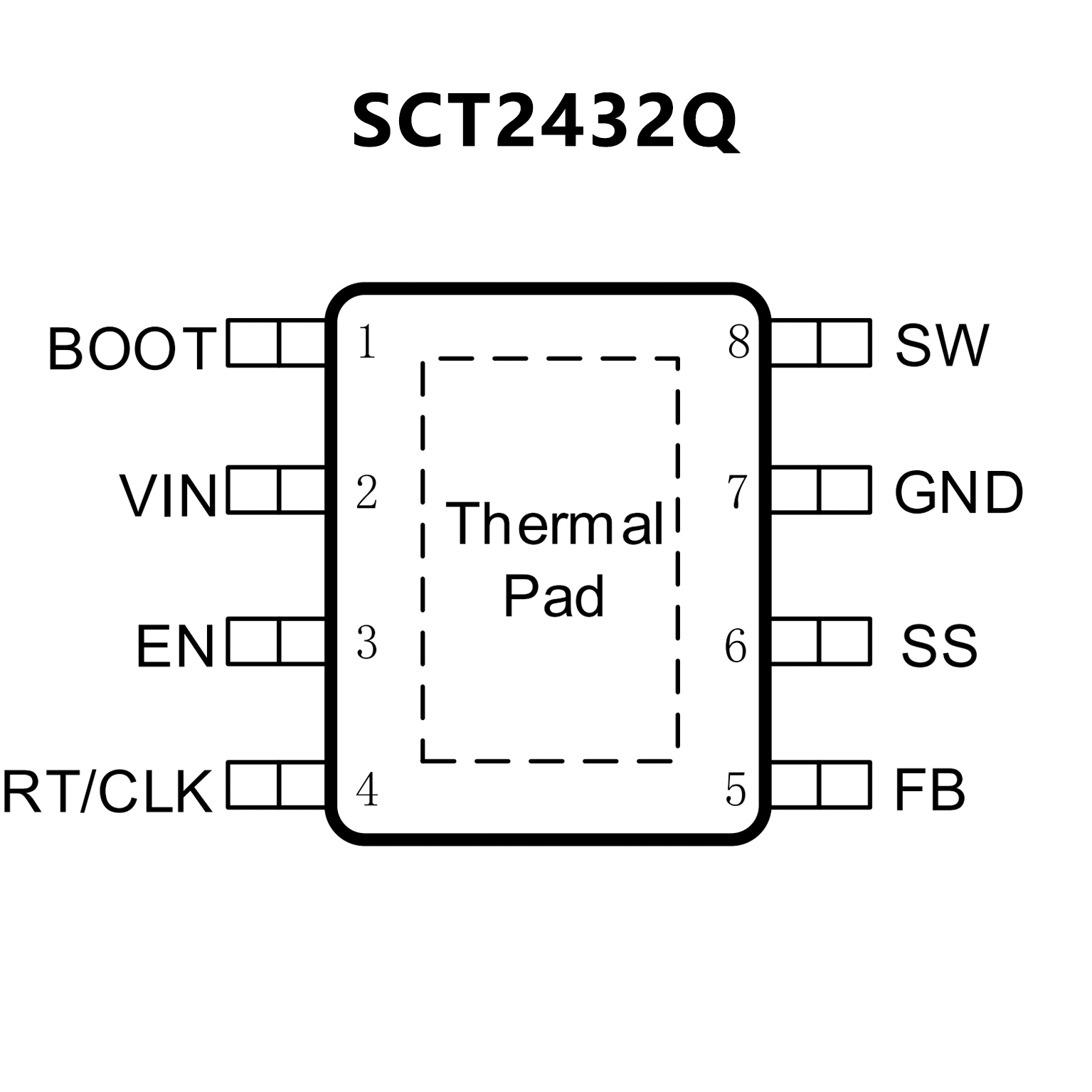

PIN CONFIGUTION
优势替代
LMR14030-Q1 LMR14030-Q1.pdf

No.14462

FEATURES

• Qualified for Automotive Applications

• Device Temperature Grade 1: -40 °C to

  125 °C Ambient Operating Temperature Range

• Device HBM ESD Classification Level H1C

• Device CDM ESD Classification Level C4A

• 4 V to 40 V Input Range

• 3.5 A Continuous Output Current

• Ultra-low 40 µA Operating Quiescent Current

• 90 mΩ High-Side MOSFET

• Minimum Switch-On Time: 75 ns

• Current Mode Control

• Adjustable Switching Frequency from 200 kHz to 2.5 MHz

• Frequency Synchronization to External Clock

• Spread Spectrum Option for Reduced EMI

• Internal Compensation for Ease of Use

• High Duty Cycle Operation Supported

• Precision Enable Input

• 1 µA Shutdown Current

• External Soft-start

• Thermal, Overvoltage and Short Protection

• 8-Pin HSOIC with PowerPAD™ Package

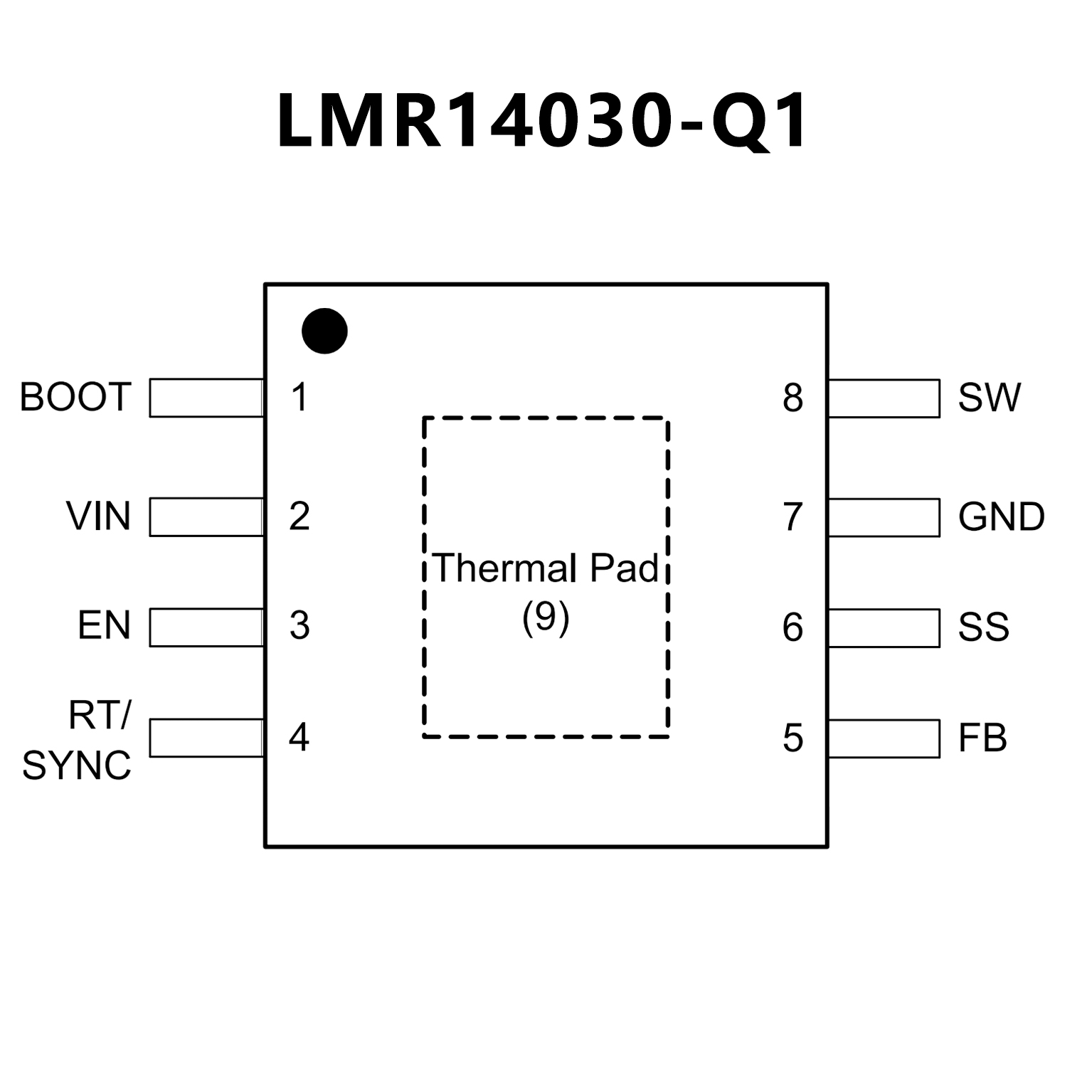

PIN CONFIGUTION
