SCT2433.pdf• Wide Input Range: 3.8V-40V
• Up to 3.5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Fixed Frequency 570kHz
• 100ns Minimum On-time
• 2ms Internal Soft-start Time
• Frequency Spread Spectrum FSS Modulation for
EMI Reduction
• Low Dropout Mode Operation
• Derivable Inverting Voltage Regulator
• Over-voltage and Over Temperature Protection

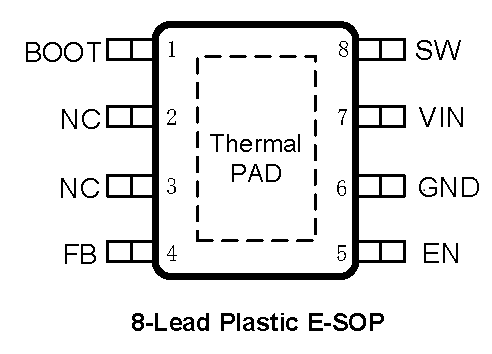

• Available in an ESOP-8 Package
• Wide Input Voltage Range: 4.5 V to 42 V
• Internally Compensated Voltage Mode Control
• Stable with Low ESR Ceramic Capacitors
• 120 mΩ N-Channel MOSFET PFM Package
• 100 mΩ N-Channel MOSFET PSOP-8 Package
• ±1.5% Feedback Reference Accuracy
• Switching Frequency of 500 kHz
• Precision Enable Pin
• Integrated Boot-Strap Diode
• Integrated Soft-Start

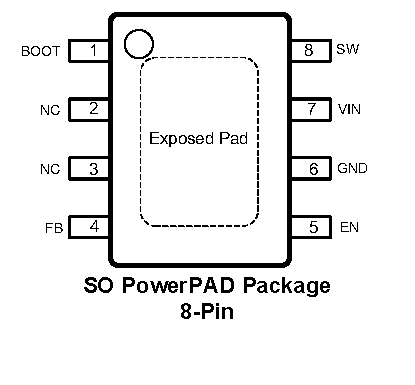

• SO PowerPAD (Exposed Pad)
• PFM (Exposed Pad)
