High Efficiency Step down DCDC Converter, SCT2600 Replace LV2862YDDCR.
FEATURES

 Wide Input Range: 4.5V-60V

 Continuous Output Current: 0.6A

 0.765V ±2.5% Feedback Reference Voltage

 Integrated 500mΩ High-Side

 Low Quiescent Current: 80uA

 Pulse Skipping Mode (PSM) in light load

 80ns Minimum On-time

 6ms Internal Soft-start Time

 Internal compensation

 Switching Frequency 2.1MHz

 Precision Enable Threshold for Programmable

  Input Voltage Under-Voltage Lock Out Protection

  (UVLO) Threshold and Hysteresis

 Low Dropout Mode Operation

 Over-voltage and Over-Temperature Protection

 Available in an TSOT23-6L Package

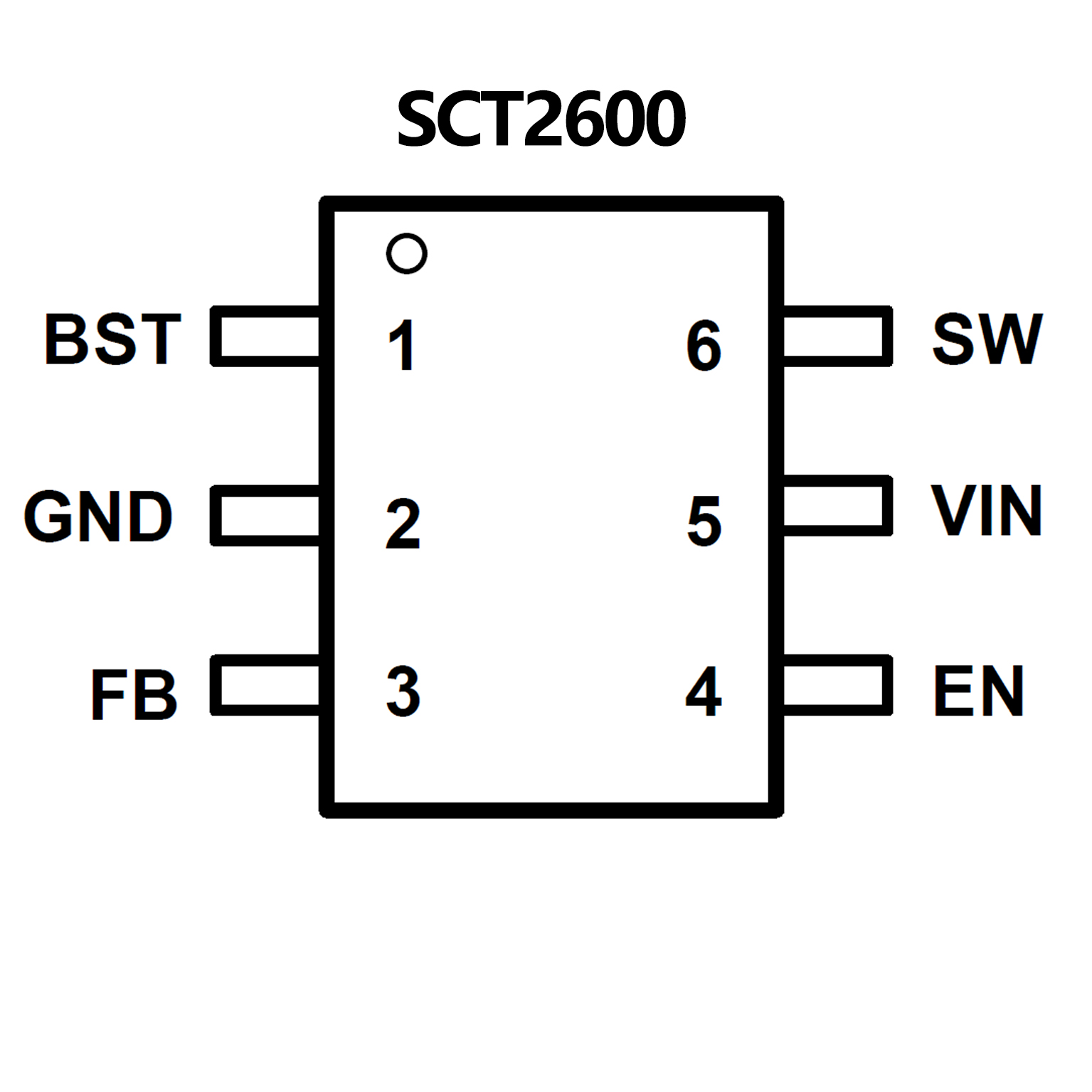

PIN CONFIGUTION
优势替代
LV2862YDDCR LV2862YDDCR.pdf

No.13275

FEATURES

• Input range from 4 V to 60 V with 65-V transients

• 770 kHz (X version) or 2.1 MHz (Y version)

  switching frequency

• Ultra-high efficiency for light load with eco mode

• Low dropout operation

• Output current up to 600 mA

• High voltage precision enable input

• Overcurrent protection

• Overtemperature protection

• Internal compensation

• Internal soft start

• Small overall solution size (SOT-6L package)

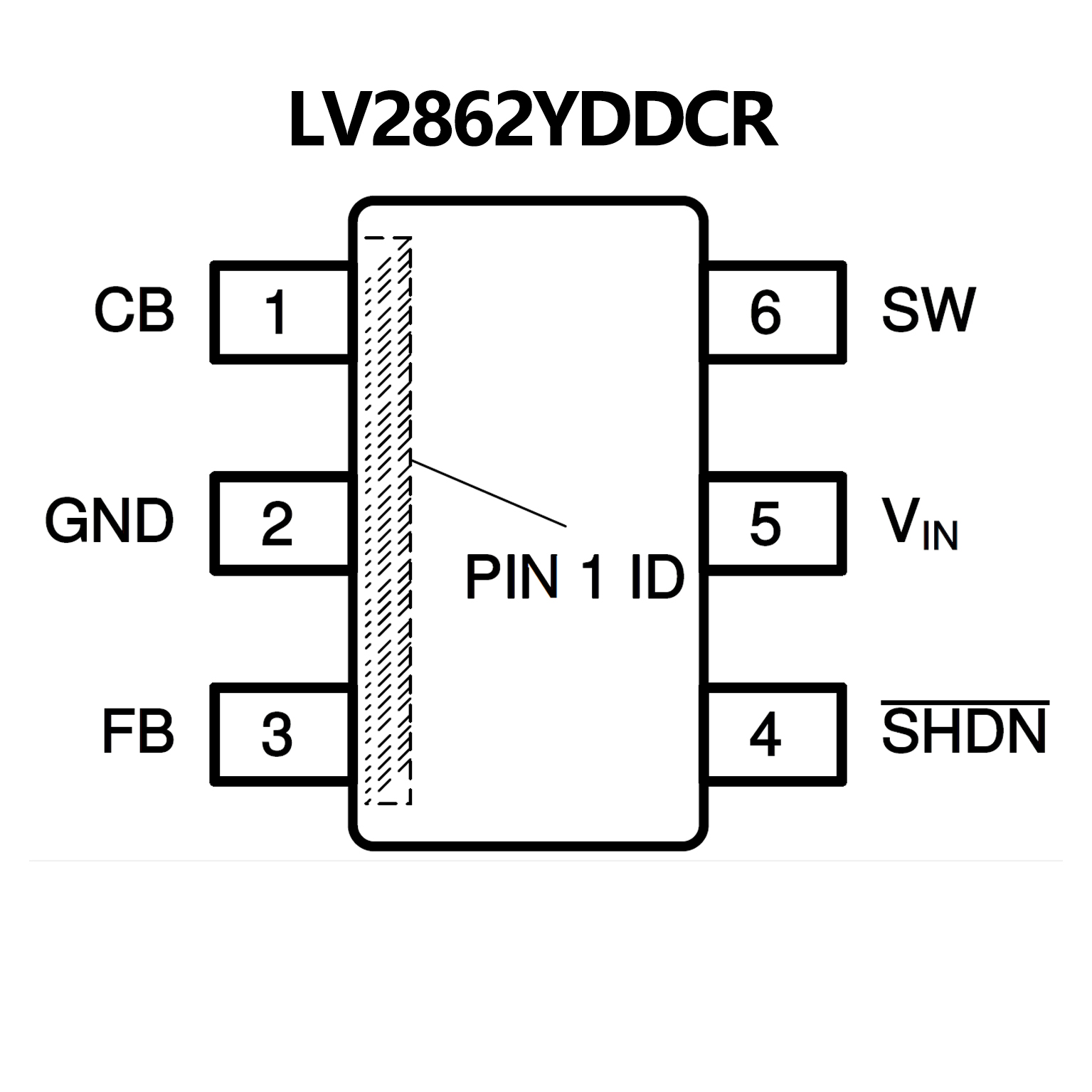

PIN CONFIGUTION
