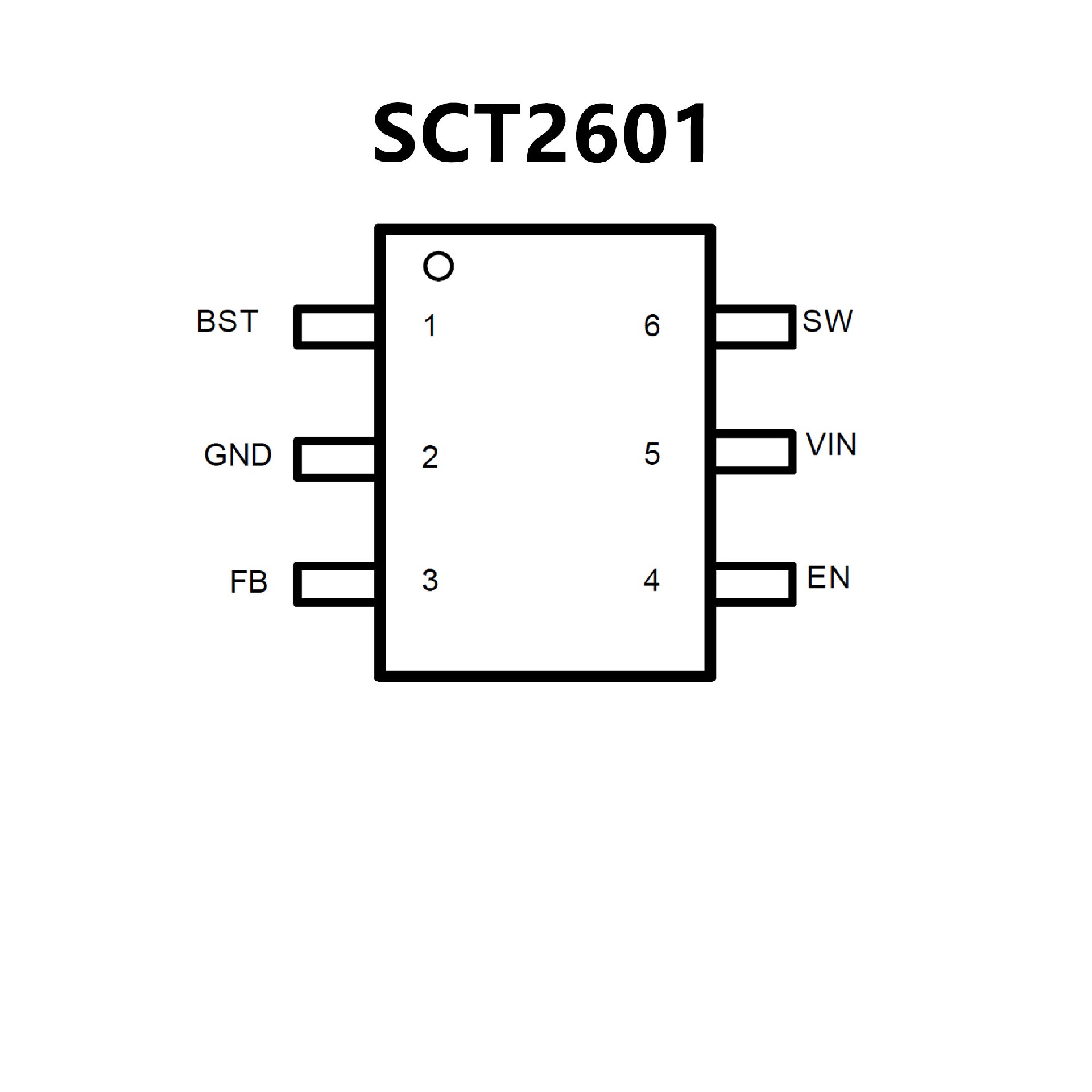

SCT2601.pdf• Wide Input Range: 4.5V-60V
• Continuous Output Current: 0.6A
• 0.765V ±2.5% Feedback Reference Voltage
• Integrated 500mΩ High-Side
• Low Quiescent Current: 80µA
• Pulse Skipping Mode (PSM) in light load
• 80ns Minimum On-time
• 6ms Internal Soft-start Time
• Internal compensation
• Switching Frequency 700KHz
• Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
• Low Dropout Mode Operation
• Over-voltage and Over-Temperature Protection
• Available in an TSOT23-6L Package

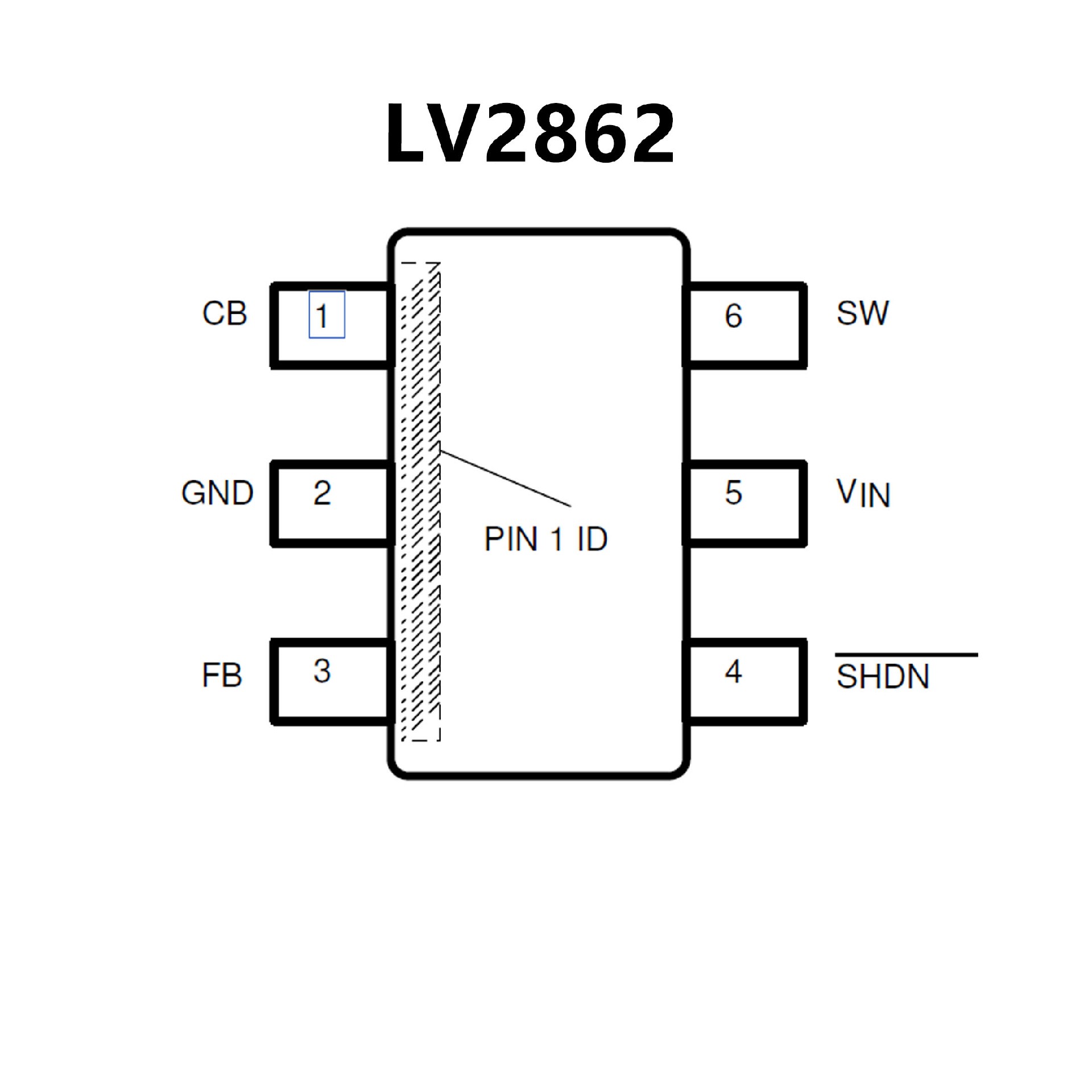

• Input range from 4 V to 60 V with 65-V transients
• 770 kHz (X version) or 2.1 MHz
(Y version)switching frequency
• Ultra-high efficiency for light load with eco mode
• Low dropout operation
• Output current up to 600 mA
• High voltage precision enable input
• Overcurrent protection
• Overtemperature protection
• Internal compensation
• Internal soft start
• Small overall solution size (SOT-6L package)
