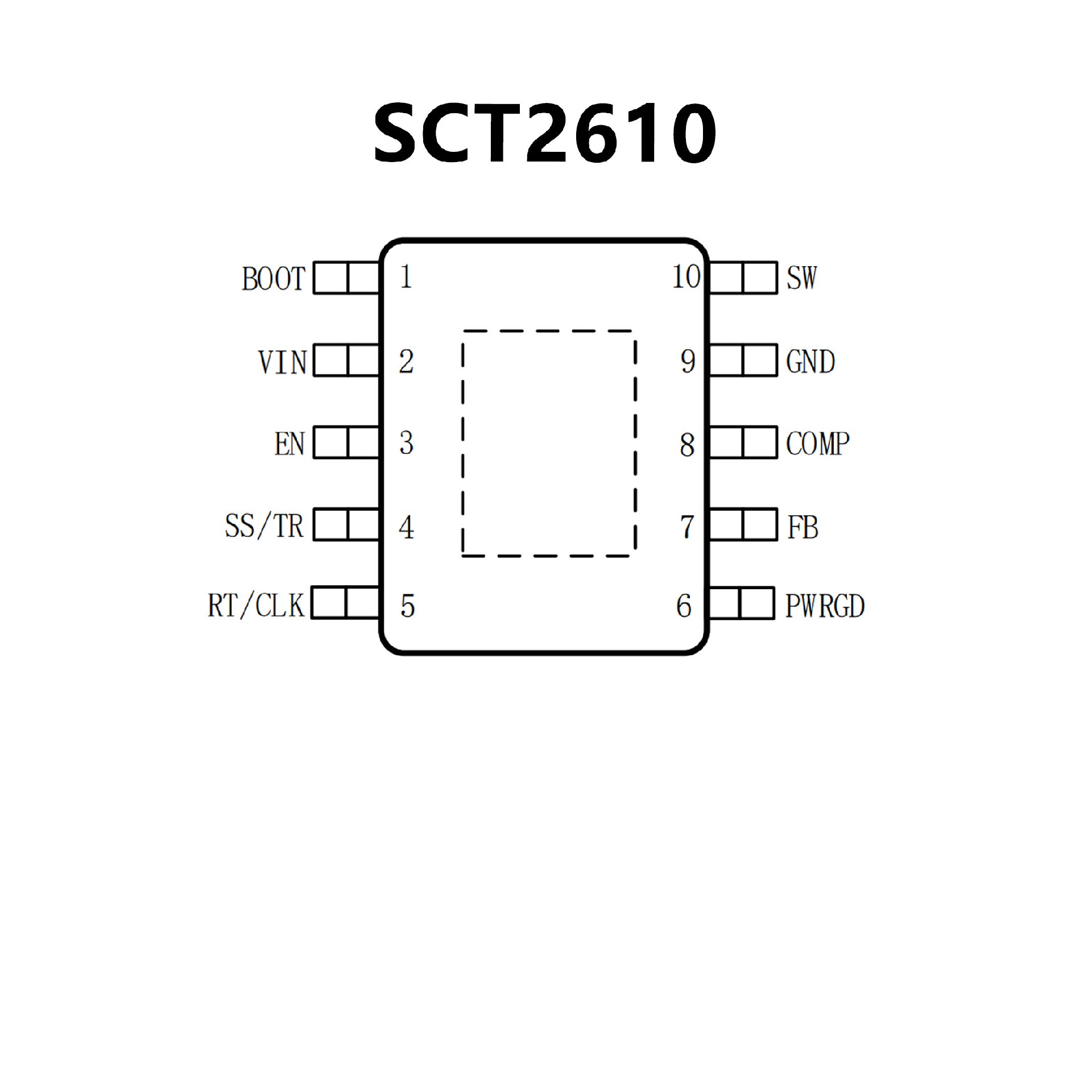

SCT2610.pdf• Wide Input Range: 3.8V-60V
• Up to 1.5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 220mΩ High-Side MOSFET
• Low Quiescent Current: 190µA
• Pulse Skipping Mode (PSM) in light load
• 100ns Minimum On-time
• Adjustable Soft-start Time
• Adjustable Frequency 100KHz to 1.2MHz
• UV and OV Power Good Output
• External Clock Synchronization
• Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
• Low Dropout Mode Operation
• Derivable Inverting Voltage Regulator
• Over-voltage and Over-Temperature Protection
• Available in an EMSOP-10 Package

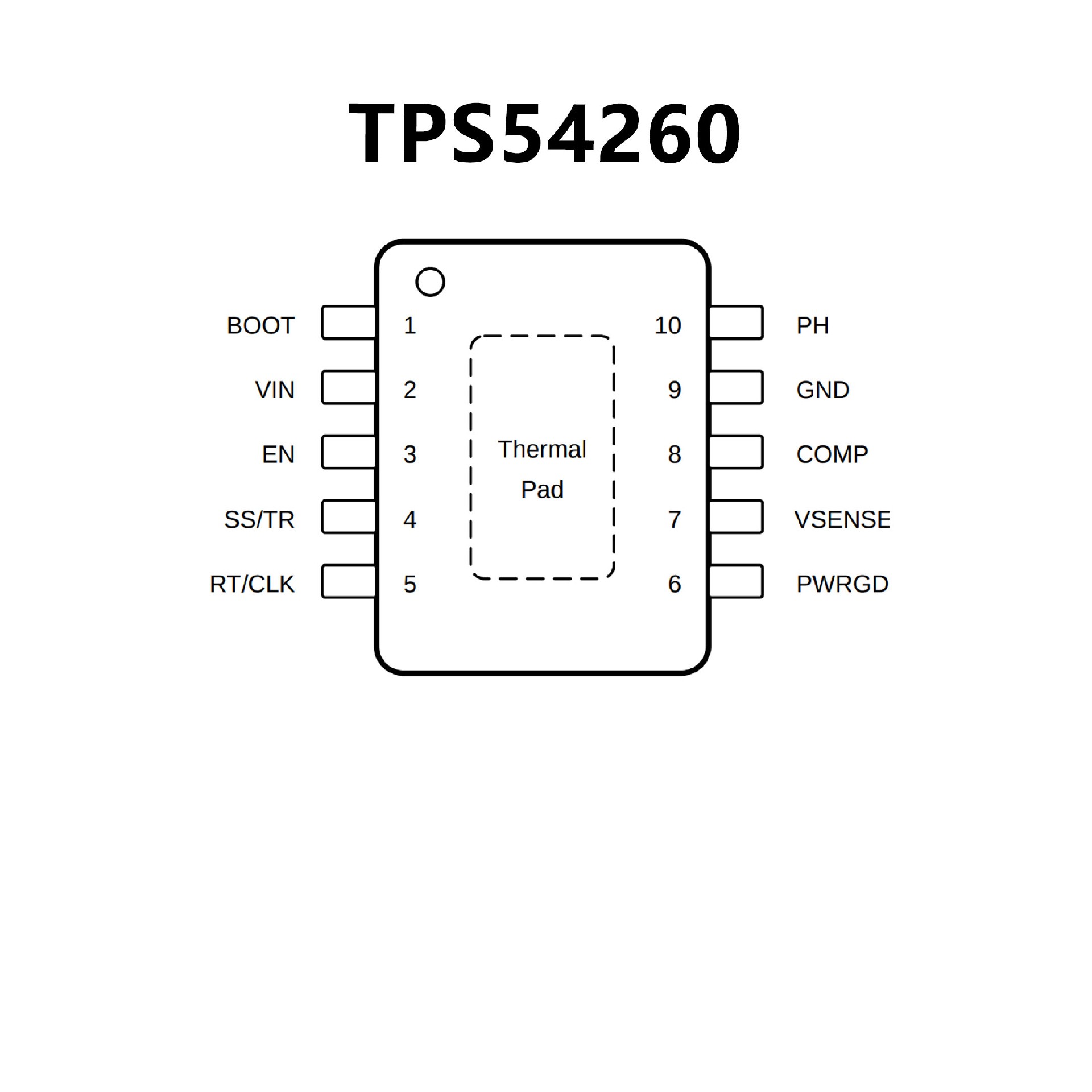

• 3.5-V to 60-V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads With a Pulse-
Skipping Eco-mode™
• 138-μA Operating Quiescent Current
• 1.3-μA Shutdown Current
• 100-kHz to 2.5-MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start and Sequencing
• UV and OV Powergood Output
• Adjustable UVLO Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• 10-Pin MSOP and 10-Pin 3-mm × 3-mm VSON
With PowerPAD™ Packages
• Create a Custom Design Using the TPS54260
With WEBENCH® Power Designer
