SCT2612.pdf• Wide Input Range: 4.2V-60V
• 1A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 220mΩ High-Side MOSFET
• Low Quiescent Current: 100uA
• Pulse Skipping Mode (PSM) in light load
• 100ns Minimum On-time
• 4ms Internal Soft-start Time
• Internal compensation for Ease of Use
• Adjustable Frequency 100KHz to 1.2MHz
• External Clock Synchronization
• UV and OV Power Good Output
• Precision Enable Threshold for Programmable Input
Voltage Under-Voltage Lock Out Protection (UVLO)
Threshold and Hysteresis
• Low Dropout Mode Operation
• Over-voltage and Over-Temperature Protection
• Available in an ESOP-8 Package
• 4 V to 40 V Input Range
• 2 A Continuous Output Current
• Ultra-low 40 μA Operating Quiescent Current
• 90 mΩ High-Side MOSFET
• Minimum Switch-On Time: 75 ns
• Current Mode Control
• Adjustable Switching Frequency from 200 kHz to
2.5 MHz
• Frequency Synchronization to External Clock
• Internal Compensation for Ease of Use
• High Duty Cycle Operation Supported
• Precision Enable Input
• 1 μA Shutdown Current
• External Soft-start
• Thermal, Overvoltage and Short Protection

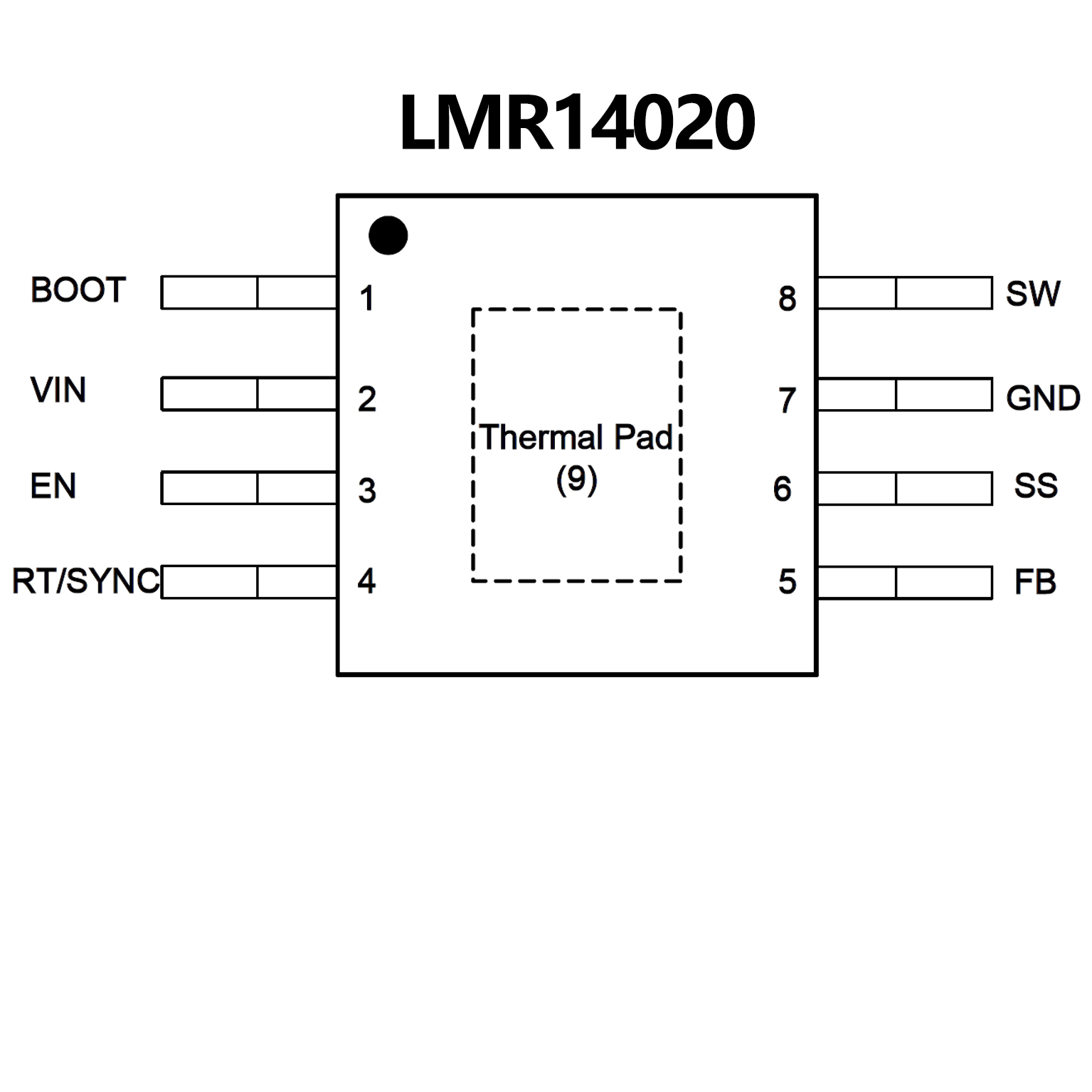

• 8-Pin HSOIC with PowerPAD™ Package
