• Wide Input Range: 3.8V-60V

• Up to 2.5A Continuous Output Current

• 0.8V ±1% Feedback Reference Voltage

• Integrated 220mΩ High-Side MOSFET

• Low Quiescent Current: 190µA

• Pulse Skipping Mode (PSM) in light load

• 100ns Minimum On-time

• Adjustable Soft-start Time

• Adjustable Frequency 100KHz to 1.2MHz

• UV and OV Power Good Output

• External Clock Synchronization

• Precision Enable Threshold for Programmable

  Input Voltage Under-Voltage Lock Out Protection

  (UVLO) Threshold and Hysteresis

• Low Dropout Mode Operation

• Derivable Inverting Voltage Regulator

• Over-voltage and Over-Temperature Protection

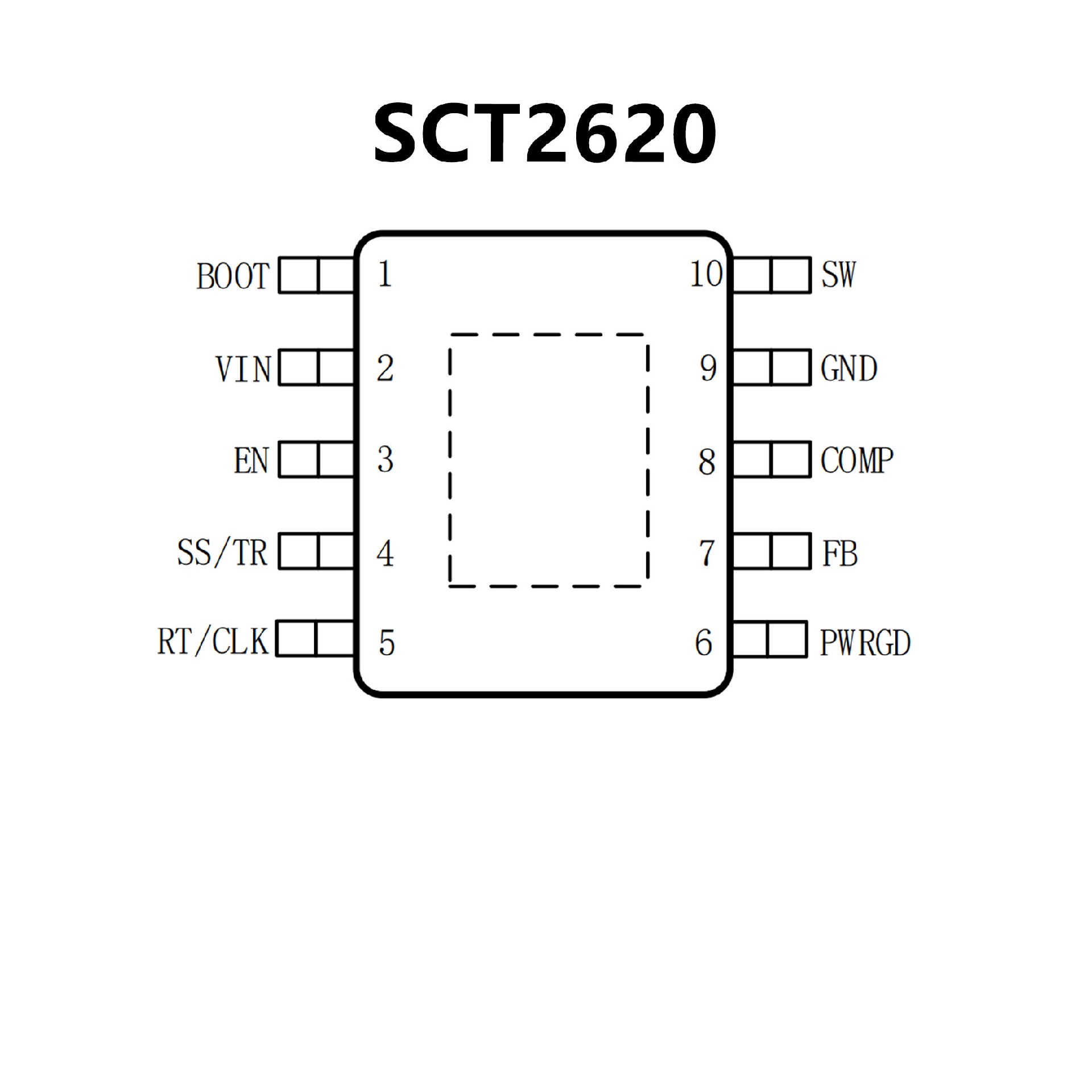

• Available in an EMSOP-10 Package
