3.8V-60V Vin, 2.5A, High Efficiency Step-down DCDC Converter with Programmable Frequency, SCT2620Q P2P TPS54240-Q1.
FEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
  - Device Temperature Grade 1: -40°C to 125°C
    Ambient Operating Temperature Range
  - Device HBM ESD Classification Level 2
  - Device CDM ESD Classification Level C3
• Wide Input Range: 3.8V-60V
• Up to 2.5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 220mΩ High-Side MOSFET
• Low Quiescent Current: 190uA
• Pulse Skipping Mode (PSM) in light load
• Adjustable Soft-start Time
• Adjustable Frequency 100KHz to 1.2MHz
• UV and OV Power Good Output
• External Clock Synchronization
• Precision Enable Threshold for Programmable
  Input Voltage Under-Voltage Lock Out Protection
  (UVLO) Threshold and Hysteresis
• Over-voltage and Over-Temperature Protection
• Available in an EMSOP-10 Package

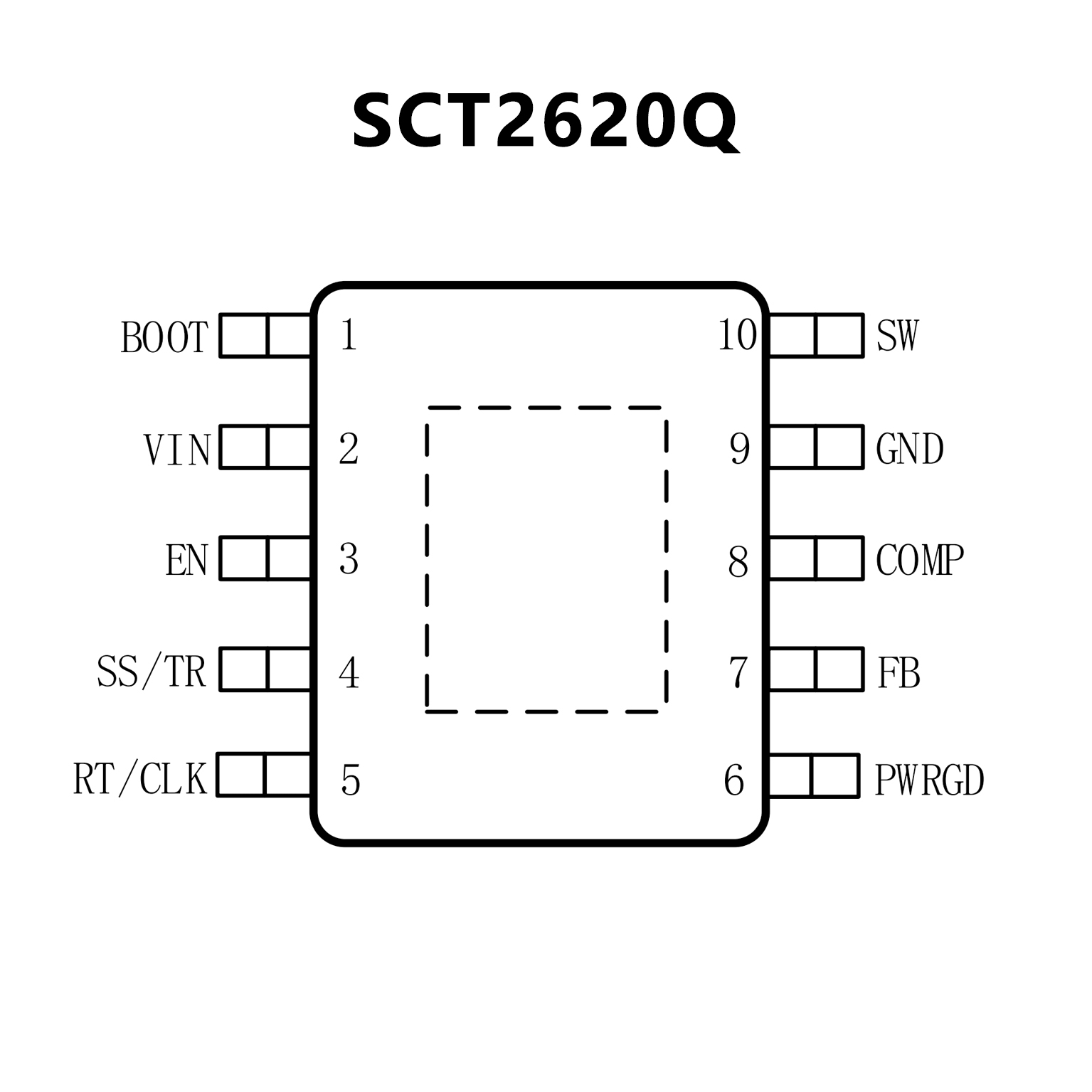

PIN CONFIGUTION
优势替代
TPS54240-Q1 TPS54240-Q1.pdf

No.14472

FEATURES

• Qualified for Automotive Applications

• AEC Q100 Qualified With the Following Results:

  - Device Temperature Grade 1: –40°C to 125°C

    Ambient Operating Temperature Range

  - Device HBM ESD Classification Level H2

  - Device CDM ESD Classification Level C6

 • 3.5-V to 42-V Input Voltage Range

• 200-mΩ High-Side MOSFET

• High Efficiency at Light Loads With a Pulse-Skipping

  Eco-mode Control Scheme

• 138-µA Operating Quiescent Current

• 1.3-µA Shutdown Current

• 100-kHz to 2.5-MHz Switching Frequency

• Synchronizes to External Clock

• Adjustable Slow Start/Sequencing

• UV and OV Power-Good Output

• Adjustable UVLO Voltage and Hysteresis

• 0.8-V Internal Voltage Reference

• MSOP10 PowerPAD Package

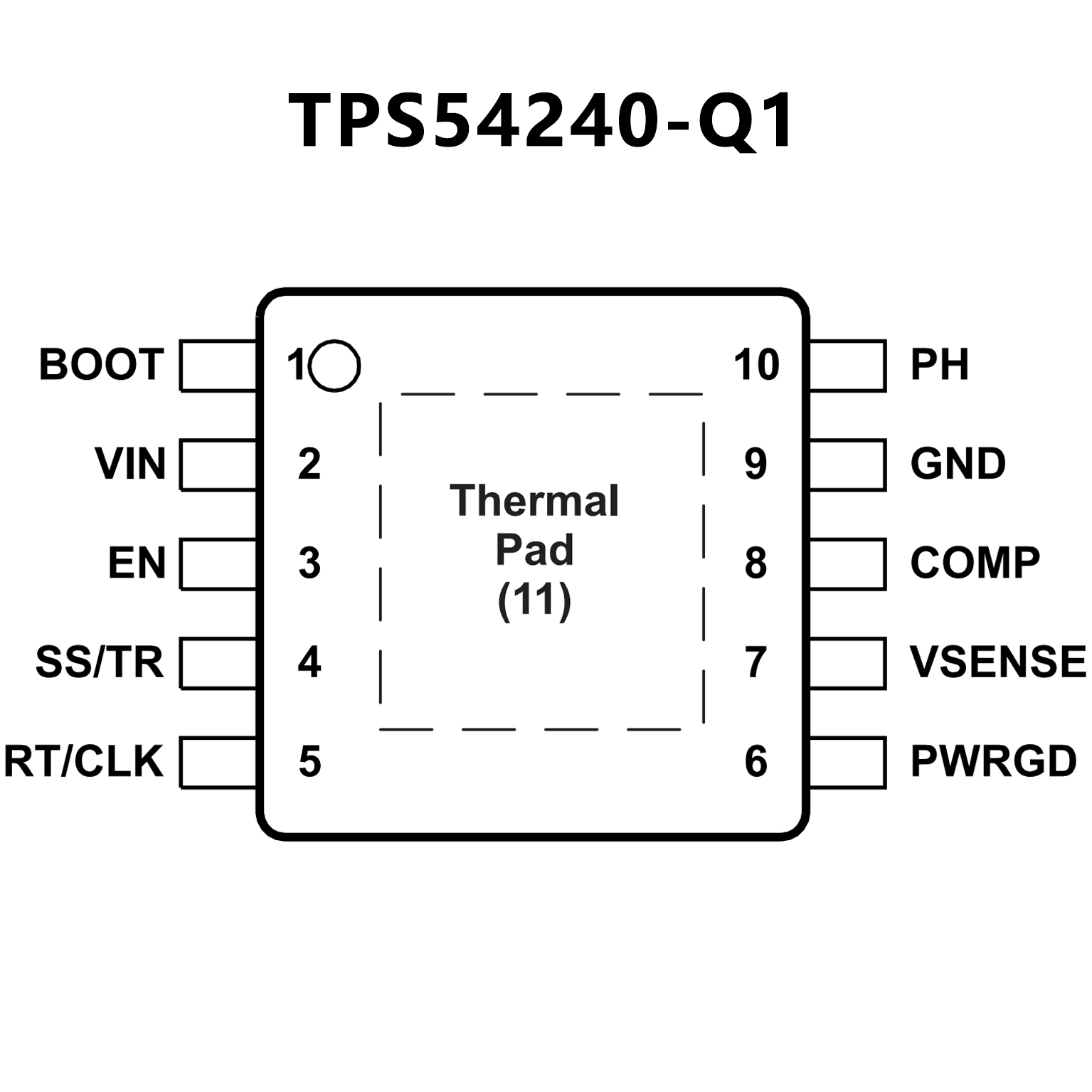

PIN CONFIGUTION
