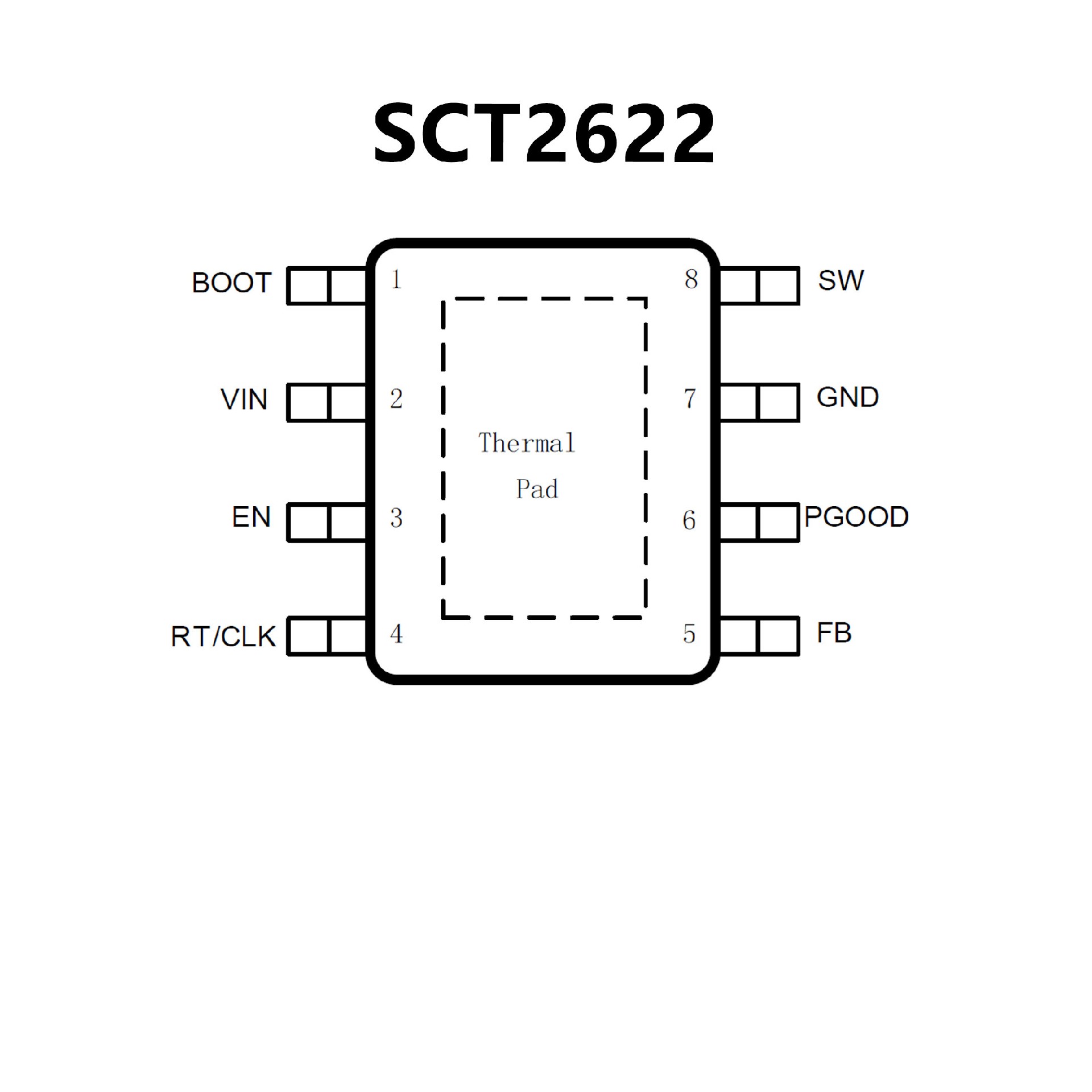

SCT2622.pdf• Wide Input Range: 4.2V-60V
• 2A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 220mΩ High-Side MOSFET
• Low Quiescent Current: 100µA
• Pulse Skipping Mode (PSM) in light load
• 100ns Minimum On-time
• 4ms Internal Soft-start Time
• Internal compensation for Ease of Use
• Adjustable Frequency 100KHz to 1.2MHz
• External Clock Synchronization
• UV and OV Power Good Output
• Precision Enable Threshold for Programmable
InputVoltage Under-Voltage Lock Out
Protection (UVLO)Threshold and Hysteresis
• Low Dropout Mode Operation
• Over-voltage and Over-Temperature Protection
• Available in an ESOP-8 Package
• New product available: LM76003 60-V, 3.5-A, 2.2-
MHz synchronous converter
• 4.3-V to 60-V input range
• 3-A continuous output current
• Ultra-low 40-μA operating quiescent current
• 155-mΩ high-side MOSFET
• Current mode control
• Adjustable switching frequency from 200 kHz to
2.5 MHz
• Frequency synchronization to external clock
• Internal compensation for ease of use
• High duty cycle operation supported
• Precision enable input
• 1-μA shutdown current
• Thermal, overvoltage and short protection
• 8-pin HSOIC with PowerPAD™ package
• Create a custom design using the LM76003 with
the WEBENCH® Power Designer

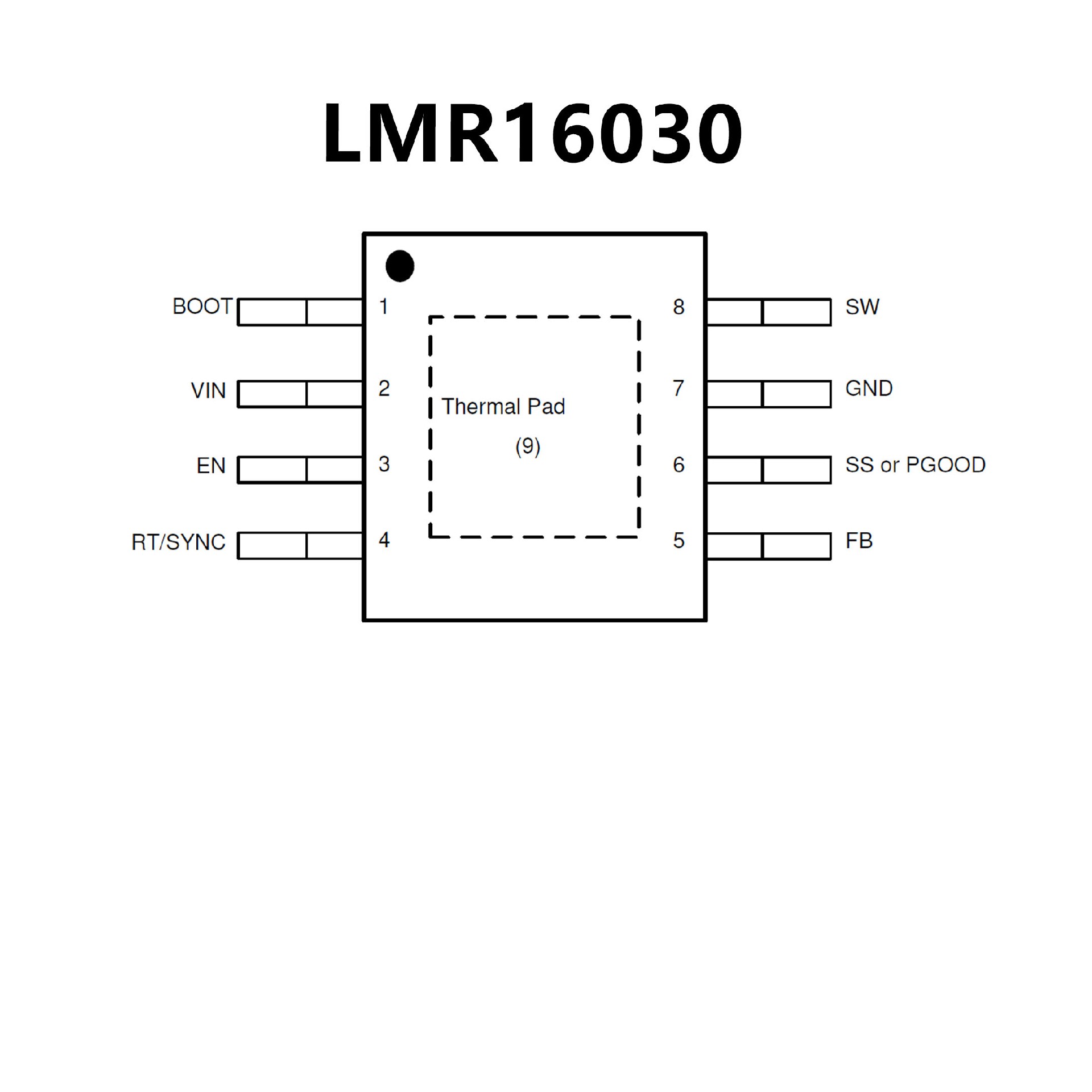

• Create a custom design using the LM16030 with
the WEBENCH® Power Designer
