• High Efficiency at Light Loads With Pulse-

  Skipping Eco-Mode™

• 89-mΩ High-Side MOSFET

• 152-μA Operating Quiescent Current and

  2-μA Shutdown Current

• 100-kHz to 2.5-MHz Adjustable Switching

  Frequency

• Synchronizes to External Clock

• Low Dropout at Light Loads With Integrated

  BOOT Recharge FET

• Adjustable UVLO Voltage and Hysteresis

• UV and OV Power Good Output

• Adjustable Soft Start and Sequencing

• 0.8-V 1% Internal Voltage Reference

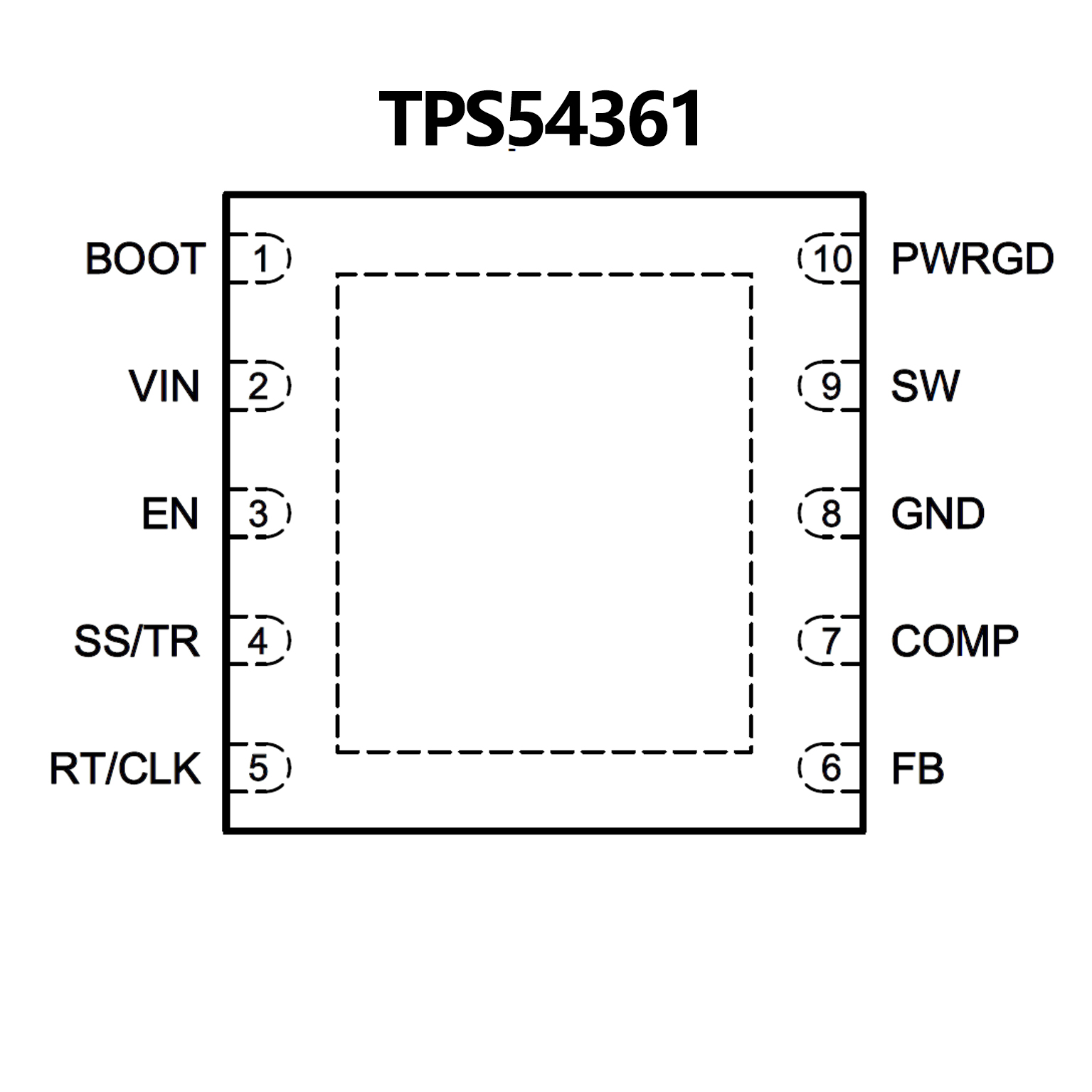

• 10-Pin WSON With Thermal Pad Package

• –40°C to 150°C TJ Operating Range

• Create a Custom Design using the TPS54361 with

  the WEBENCH® Power Designer
