4.2V-60V Vin, 3A, High Efficiency Step-down DCDC Converter with Programmable Frequency, SCT2632Q P2P LMR16030-Q1.
FEATURES

• Qualified for Automotive Applications

• AEC-Q100 Qualified with the Following Results:

  Device Temperature Grade 1: -40°C to 125°

  C Ambient Operating Temperature Range

  Device HBM ESD Classification Level H2

  Device CDM ESD Classification Level C3B

• Wide Input Range: 4.2V-60V

• 3A Continuous Output Current

• 0.8V ±1% Feedback Reference Voltage

• Integrated 220mΩ High-Side MOSFET

• Low Quiescent Current: 100uA

• Pulse Skipping Mode (PSM) in light load

• 100ns Minimum On-time

• Adjustable Soft-start Time

• Internal compensation for Ease of Use

• Adjustable Frequency 100KHz to 1.2MHz

• External Clock Synchronization

• Precision Enable Threshold for Programmable

  Input Voltage Under-Voltage Lock Out Protection

  (UVLO) Threshold and Hysteresis

• Low Dropout Mode Operation

• Over-voltage and Over-Temperature Protection

• Available in an ESOP-8 Package

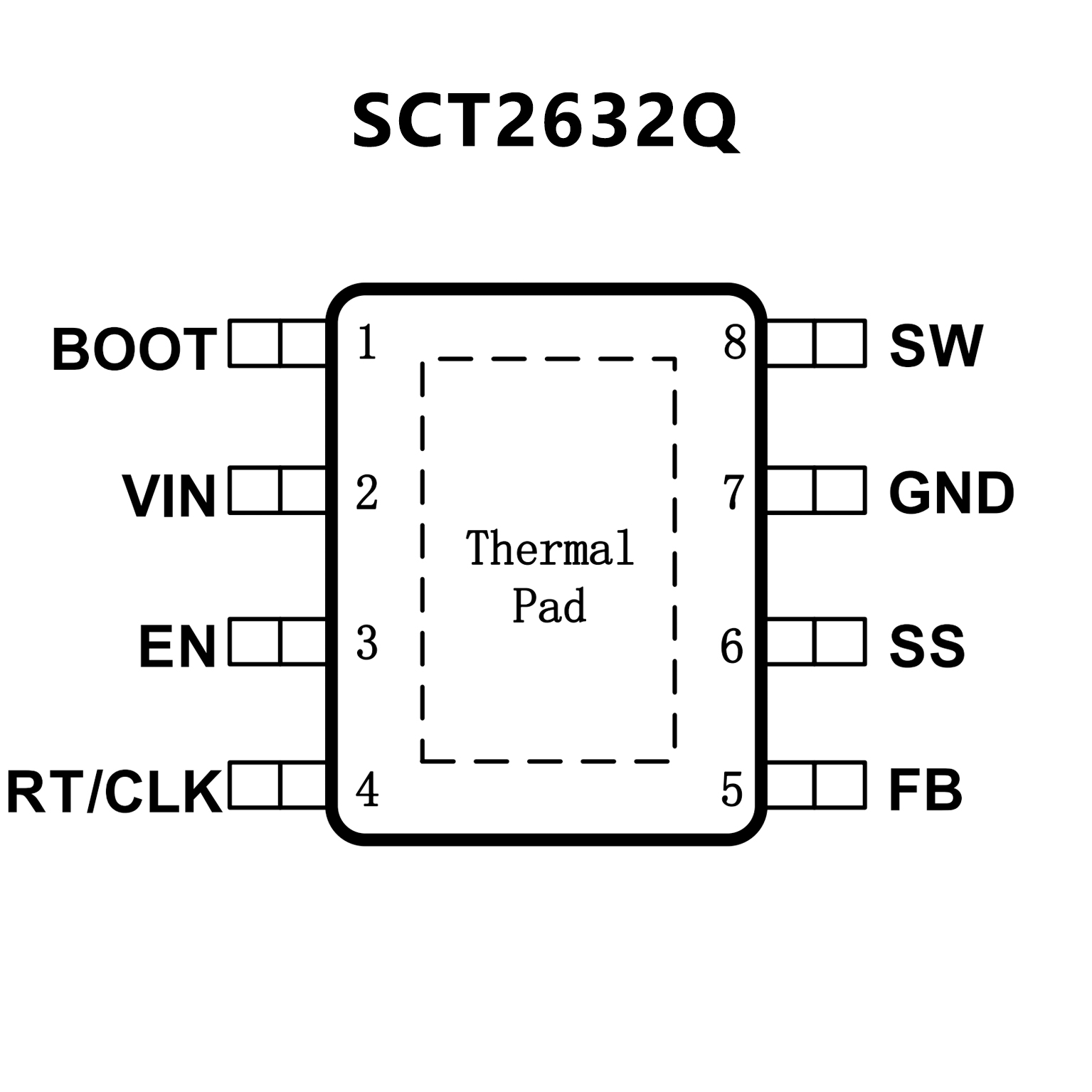

PIN CONFIGUTION
优势替代
LMR16030-Q1 LMR16030-Q1.pdf
