4.5V-60V Vin, 3A, High Efficiency Step-down DCDC Converter, SCT2633 Replace TPS5430.
FEATURES

• Wide Input Range: 4.5V-60V

• Up to 3A Continuous Output Current
• 1.221V ±1% Feedback Reference Voltage
• Integrated 220mΩ High-Side MOSFET
• Low Quiescent Current: 300uA
• Pulse Skipping Mode (PSM) in light load
• 100ns Minimum On-time
• 12ms Internal Soft-start Time
• Internal compensation for Ease of Use
• Fixed Frequency 500kHz
• Precision Enable Threshold for Programmable Input
  Voltage Under-Voltage Lock Out Protection (UVLO)
  Threshold and Hysteresis
• Over-voltage and Over-Temperature Protection

• Available in an ESOP-8 Package

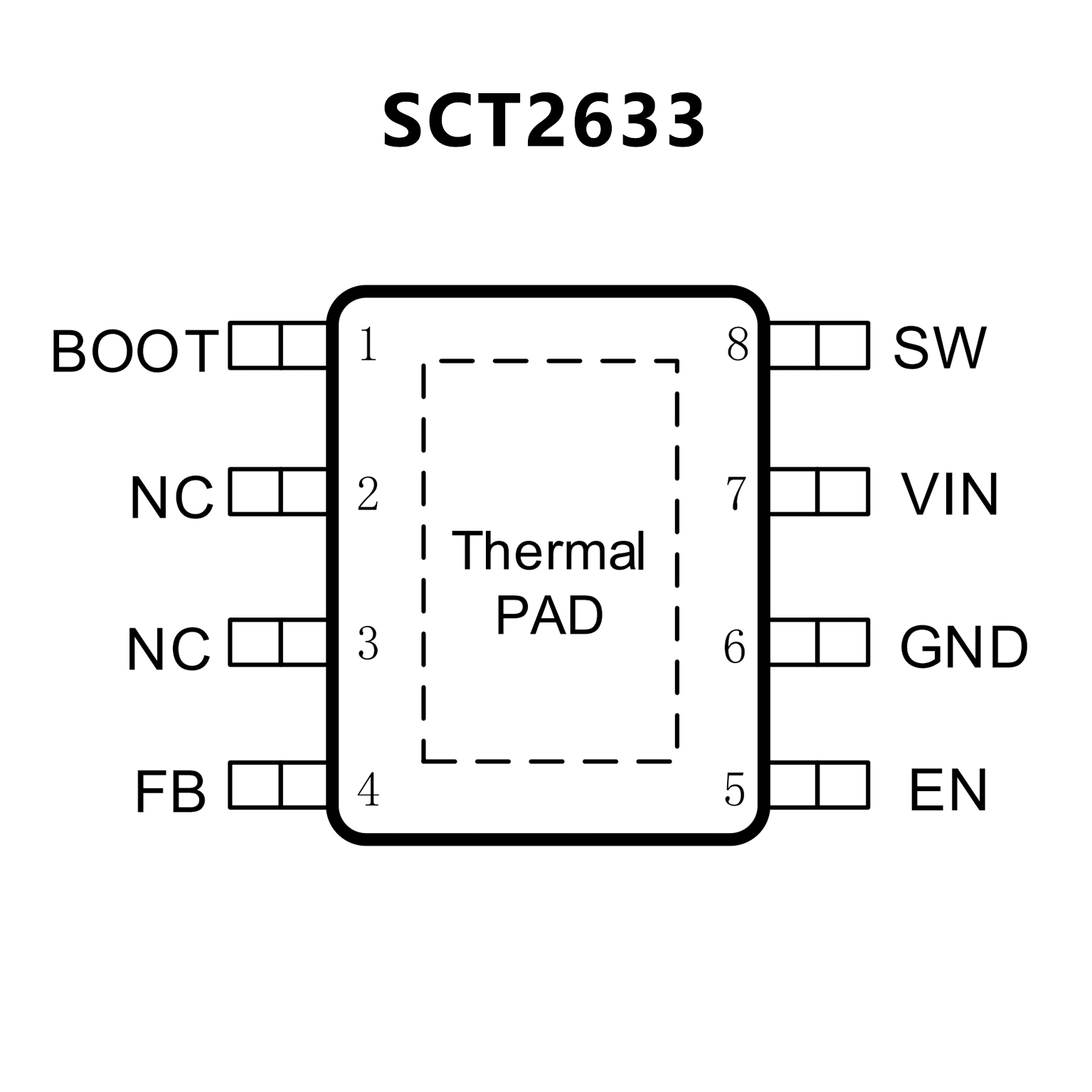

PIN CONFIGUTION
优势替代
TPS5430 TPS5430.pdf

No.14470

FEATURES

 Wide Input Voltage Range: 5.5 V to 36 V

 Up to 3-A Continuous (4-A Peak) Output Current

 High Efficiency up to 95% Enabled by 110-mW

  Integrated MOSFET Switch

 Wide Output Voltage Range: Adjustable Down to

  1.22 V with 1.5% Initial Accuracy

 Internal Compensation Minimizes External

  Parts Count

 Fixed 500 kHz Switching Frequency for Small

  Filter Size

 Improved Line Regulation and Transient Response

  by Input Voltage Feed Forward

 System Protected by Over Current Limiting and

  Thermal Shutdown

 –40°C to 125°C Operating Junction Temperature Range

 Available in Small Thermally Enhanced 8-Pin

  SOIC PowerPAD™ Package

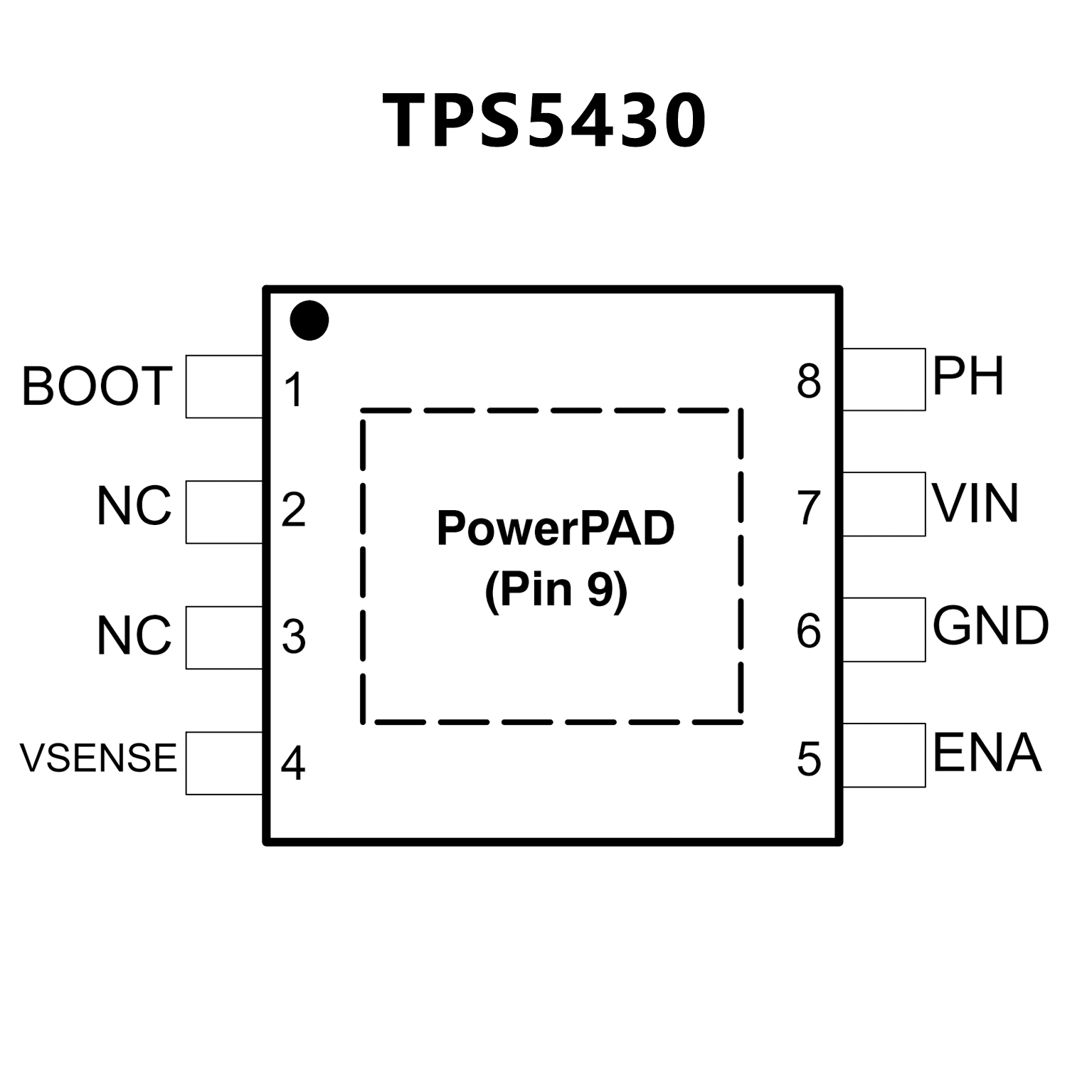

PIN CONFIGUTION
