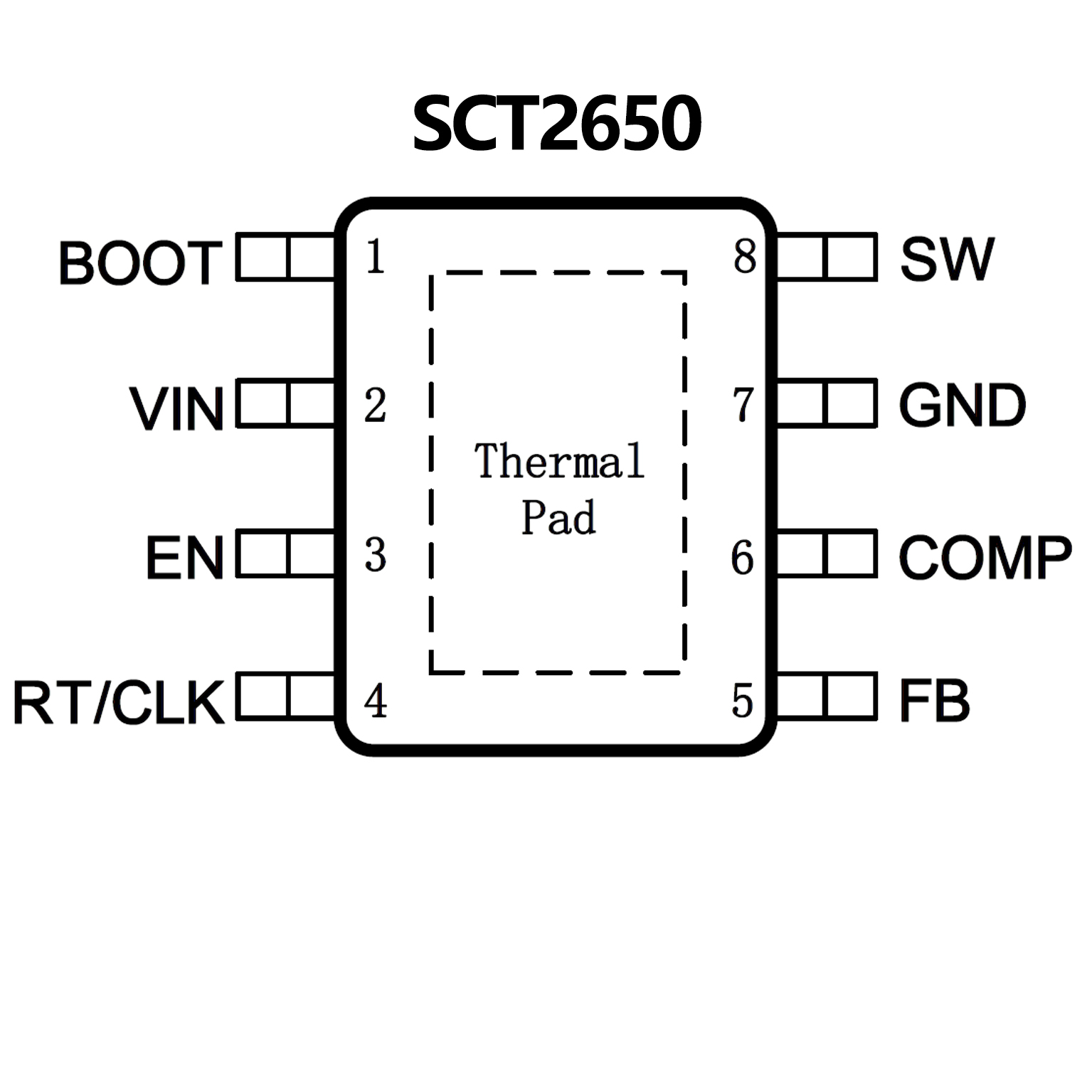

SCT2650.pdf• Wide Input Range: 3.8V-60V
• Up to 5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 80mΩ High-Side
• Ultra low Iq 30μA
• Pulse Skipping Mode (PSM) in light load
• 100ns Minimum On-time
• 4ms Internal Soft-start Time
• Adjustable Frequency 100KHz to 2.5MHz
• External Clock Synchronization
• Derivable Inverting Voltage Regulator
• Over-voltage and Over-Temperature Protection
• Available in an ESOP-8 Package

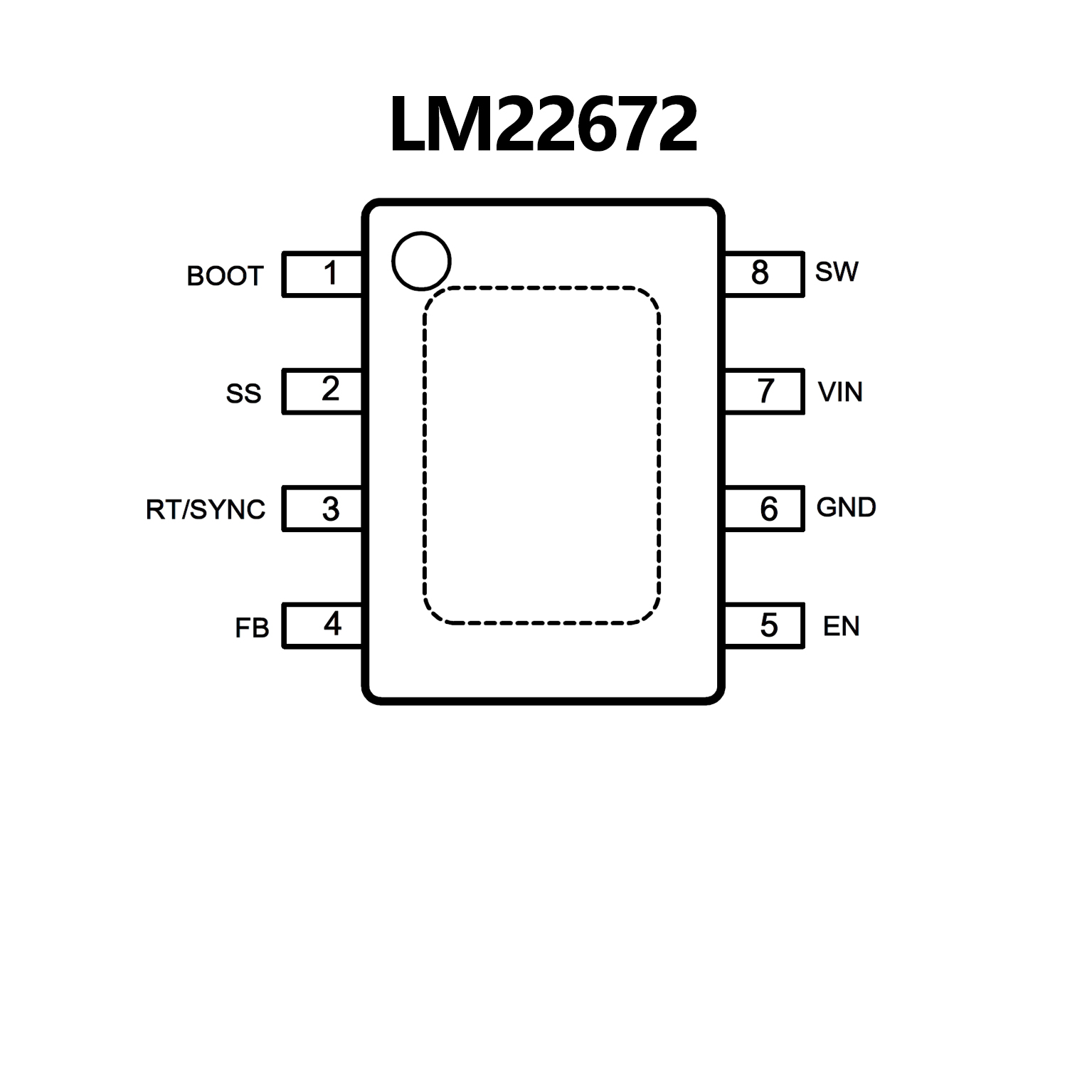

• Wide Input Voltage Range: 4.5 V to 42 V
• Internally Compensated Voltage Mode Control
• Stable with Low ESR Ceramic Capacitors
• 200 mΩ N-Channel MOSFET
• Output Voltage Options:
ADJ (Outputs as Low as 1.285 V)
5.0 (Output Fixed to 5 V)
• ±1.5% Feedback Reference Accuracy
• 500 kHz Default Switching Frequency
• Adjustable Switching Frequency and Synchronization
• –40°C to 125°C Junction Temperature Range
• Precision Enable Input
• Integrated Boot-Strap Diode
• Adjustable Soft-Start
• Fully WEBENCH® Enabled
• LM22672-Q1 is an Automotive Grade Product
that is AEC-Q100 Grade 1 Qualified (–40°C to
125°C Junction Temperature)
• SO PowerPAD (Exposed Pad)
